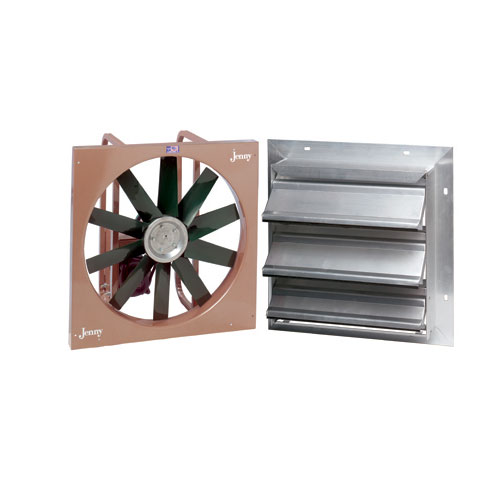

Jenny Products B2433XV-A24 24" Fan Belt Drive, 1/3 HP Variable Speed Explosion Proof

Jenny Products B2433XV-A24 24" Fan Belt Drive, 1/3 HP Variable Speed Explosion Proof

• The Jenny Products B2433XV-A24 is a 24-inch explosion-proof fan with a belt drive and variable speed. It has a 1/3 HP motor and a rugged safety back. The fan is also equipped with a 24-inch spark resistant polypropylene blade.
• Features
  • Fully Assembled - easy installation
  • Totally enclosed fan cooled explosion proof motors with built-in automatic reset overload protection
  • Rugged safety guard standard on direct drive and available as optional on belt drive models on request
  • Variable Speed models come fully equipped with solid state variable speed control
  • All motors are totally enclosed with built-in automatic reset overload protection
  • Spark resistant polypropylene blade has a rugged cast aluminium hub
  • Sturdy, Industrial grade steel frame, all welded construction with corrosion resistant powder coated finish for extended operating life
• Specifications
  • Type: Fully Assembled, Variable Speed
  • Drive: Type Direct
  • Blade Diameter: 24 Inch
  • Speed Rating: 1050 to 600 rpm
  • Power Rating: 1/3 HP
  • Blade Material: Polypropylene
  • Approval: UL Class 1, Group D, Class II, Group E, F and G, OSHA
  • Static Pressure: 4690 to 2680 (0 Inch Static Pressure), 4520 to 2590 CFM (1/8 Inch), 4200 to 2402 CFM (1/4 Inch)
  • Material: Rugged Cast Aluminum (Hub), Sturdy, Industrial Grade Steel (Frame)
  • Process: Welded
