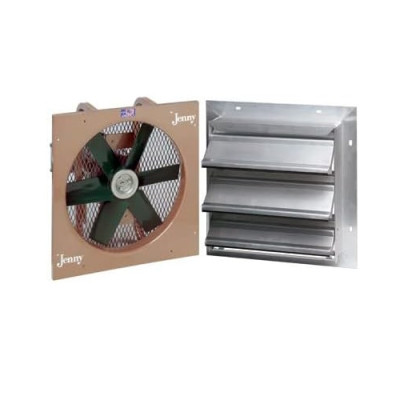

Jenny Products D1625X-A16 Direct Drive Ventilation/Exhaust Fan, 1/4 HP, 16" Blade, with Shutter

Jenny Products D1625X-A16 Direct Drive Ventilation/Exhaust Fan, 1/4 HP, 16" Blade, with Shutter

• The Jenny Products D1625X-A16 is a robust direct drive ventilation and exhaust fan designed for efficient air circulation in industrial and commercial settings. Equipped with a 1/4 horsepower motor and a 16" heavy-gauge aluminum blade, this fan ensures optimal performance and durability.
• Features:
  • Direct drive design for efficient operation
  • 16" heavy-gauge aluminum blade for enhanced airflow
  • Industrial-grade steel frame with powder-coated finish for corrosion resistance
  • Fully assembled for easy installation
  • Includes shutter for controlled ventilation
  • Rugged safety guard for enhanced safety
  • Totally enclosed motor with built-in automatic reset overload protection
• Specifications:
  • Manufacturer: Jenny Products
  • Part Number: D1625X-A16
  • Product Type: Direct Drive Ventilation/Exhaust Fan
  • Motor Power: 1/4 HP
  • Blade Diameter: 16"
  • Flow Rate: 2,690 CFM at 0" static pressure; 2,460 CFM at 1/8" static pressure; 2,250 CFM at 1/4" static pressure
  • Frame Material: Industrial-grade steel
  • Blade Material: Heavy-gauge aluminum
  • Finish: Powder-coated for corrosion resistance
  • Dimensions: 20" Width x 20" Height x 13" Depth
  • Weight: Approximately 30 lbs
• The Direct Drive Ventilation/Exhaust Fan can also be referred to as an industrial exhaust fan, commercial ventilation fan, direct drive fan with shutter, 16" exhaust fan, and 1/4 HP ventilation fan.

Jenny Products is a renowned manufacturer specializing in high-quality ventilation and exhaust solutions, offering durable and efficient products for industrial and commercial applications.

Q: What are the dimensions of the Jenny Products D1625X-A16 fan?
A: The fan measures 20" in width, 20" in height, and 13" in depth.

Q: Is the fan suitable for both wall and ceiling installations?
A: Yes, the fan is designed for versatile mounting options, including both wall and ceiling installations.

Q: Does the fan come with a speed control feature?
A: The D1625X-A16 model operates at a single speed. For variable speed options, please refer to other models offered by Jenny Products.
