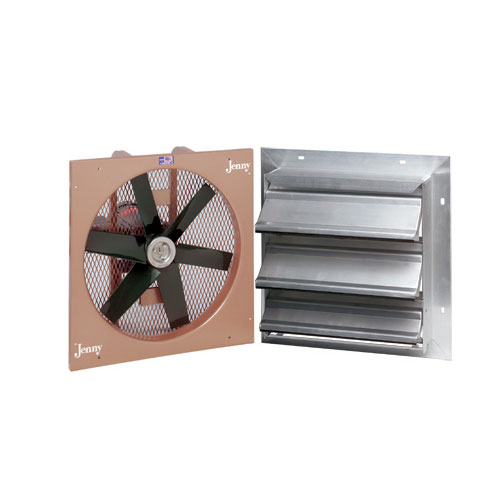

Jenny Products D2033XV-A20 20" Explosion-Proof Variable Speed Direct Drive Fan, 1/3 HP

Jenny Products D2033XV-A20 20" Explosion-Proof Variable Speed Direct Drive Fan, 1/3 HP

• The Jenny Products D2033XV-A20 Direct Drive Fan is an explosion-proof variable speed ventilation fan designed for industrial and commercial air movement applications. It features a 20" spark-resistant polypropylene blade, 1/3 HP motor, welded steel frame, variable speed control, and an included aluminum automatic shutter for controlled exhaust ventilation.
• Features:
  • 20" spark-resistant polypropylene blade supports use in compatible explosion-proof ventilation environments.
  • 1/3 HP direct drive motor provides variable speed operation.
  • Solid-state variable speed control allows airflow adjustment.
  • Formed venturi is matched to the fan for efficient airflow performance.
  • Rugged cast aluminum hub supports blade durability.
  • All-welded steel frame provides structural strength.
  • Corrosion-resistant powder-coated finish helps protect the unit in demanding environments.
  • Rugged safety backguard is standard on the direct drive model.
  • Includes corrosion-resistant aluminum automatic shutter.
  • Fully assembled and ready for installation and operation.
• Includes:
  • (1) Jenny Products D2033XV Direct Drive Fan
  • (1) 20" Spark-Resistant Polypropylene Blade
  • (1) Aluminum Automatic Shutter
  • (1) Safety Backguard
  • (1) Variable Speed Control
• Compatible Applications:
  • Industrial Ventilation
  • Explosion-Proof Exhaust Applications
  • Workshop Ventilation
  • Chemical and Industrial Facilities
  • Class I, Group D Atmospheres
  • Class II, Group E, F, and G Atmospheres
• Specifications:
  • Manufacturer: Jenny Products
  • Part Number: D2033XV-A20
  • Product Type: Explosion-Proof Variable Speed Direct Drive Fan
  • Drive Type: Direct Drive
  • Power Rating: 1/3 HP
  • Blade Diameter: 20"
  • Blade Material: Polypropylene
  • Hub Material: Cast Aluminum
  • Frame Material: Welded Steel
  • Finish: Corrosion-Resistant Powder Coated
  • Speed Range: 500 to 1650 RPM
  • Air Flow Rate: 1210 to 3930 CFM at 1/8" SP
  • Air Flow at 0" Static Pressure: 1270 to 4110 CFM
  • Air Flow at 1/4" Static Pressure: 905 to 3120 CFM
  • Overall Size: 24" W x 13" D x 24" H
  • Control Type: Solid-State Variable Speed
  • Shutter Type: Automatic Aluminum Shutter
  • Approvals: UL, OSHA
  • Explosion-Proof Classification: Class I, Group D and Class II, Groups E, F, and G
• This item is also often referred to as an explosion-proof exhaust fan, 20" industrial ventilation fan, variable speed wall fan, spark-resistant exhaust fan, and Jenny Products D2033XV-A20 fan.

Jenny Products supplies air compressors, ventilation equipment, shop equipment, and related products for automotive, industrial, maintenance, and general service applications.

Q: What size blade does the Jenny D2033XV-A20 use?
A: The fan uses a 20" spark-resistant polypropylene blade.

Q: What is the airflow range of this fan?
A: The supplied specifications list 1210 to 3930 CFM at 1/8" static pressure.

Q: Is the Jenny D2033XV-A20 variable speed?
A: Yes. It uses a solid-state variable speed control with a listed speed range of 500 to 1650 RPM.

Q: Does the fan include a shutter?
A: Yes. It includes a corrosion-resistant aluminum automatic shutter.
