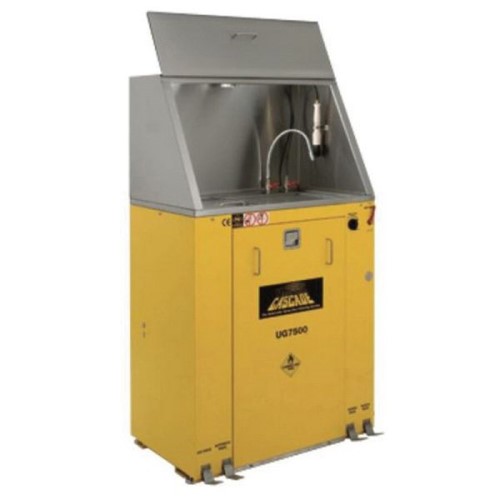

Uni-ram UG7500E Automatic/Manual Spray Gun Cleaner, 3 Gallon, Automatic/Manual
Uni-ram UG7500E Automatic/Manual Spray Gun Cleaner, 3 gal, Automatic/Manual
- The UG7500E is Uni-Ram's finest spray gun cleaner, built to satisfy the cleaning requirements of professional painters. It features automatic cleaning as well as manual cleaning of spray guns, components and other tools in a large separate stainless steel cleaning sink with a Flow-through brush and spigot.
- Specifications
- Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
- Pump for automatic wash: 4″ dual diaphragm pump with unique shuttle valve for long life, output is 3.7 gal/min (14 L/min).
- Pump for brush: 2″ dual diaphragm pump with unique shuttle valve for long life, output is 1.9 gal/min (7 L/min).
- Cleans solventborne paint from the following types of spray guns: gravity, siphon, pressure and cleans pots.
- Shipping Dimensions: 48″w x 28″d x 70″h (122cmW x 71cmD x 177cmH) Shipping Weight: 215 lb (98kg) on skid.
- Product Dimensions: 33.7″w x 20.0″d x 67.0″h
- Features
- Manual Cleaning
- A large stainless steel sink 16″w x 16″d with work screen for manual cleaning. A painter can disassemble spray equipment and detail clean the parts, first with a wash solvent using a Flow-through brush and then clean rinse using a spigot. The flow of solvent through each cleaning tool is activated by a foot pedal and powered by a 2″ dual diaphragm pump. Flow is adjustable.
- Automative Cleaning
- Top loading. Cleans 2 spray guns in under 2 minutes.
- Wash Tank is constructed from stainless steel for longer life. The tank size is 17.25″ w x 13.5″ d x 14″h.
- Washing is activated by a wash timer and powered by a long lasting dual diaphragm pump that outputs 3.7 gallons of solvent per minute.
- Mounting adapters fit popular conventional cup systems and disposable cup systems to deliver solvent to thoroughly wash the paint channel.
- 14 swirl action jets deliver cleaning solvent to wash the outside of 2 spray guns.
- Pump halts immediately, if the lid is raised during cleaning, to prevent exposure to solvent, providing a safe operation.
- Stainless steel mesh filter keeps solvent cleaner and debris from reaching the diaphragm pump.
- Plastic Cone prevents solvent from entering air passageway. Cone also provides positive air flow through air passageway to keep solvent from entering at the cap.
- Fume extraction automatically removes solvent fumes from the work area when the lid is raised for a healthier work environment.
- Lower cabinet is power coat painted mild steel with a secure closing door, floor and adjustable levelling feet.
- Comes with one solvent wash pail inside the cabinet, trigger clamps and SOPs.
- CE Approved
