K-Tool International 77760 Belt Drive Drum Fan, 60 Inch, Two Speed, 120 Volt, 8.8 Amp, 22,100 CFM High and 13,000 CFM Low, 6.74 Foot Power Cord, 4 Inch Rubber Wheels, UL and cUL

K-Tool International 77760 Belt Drive Drum Fan, 60 Inch, Two Speed, 120 Volt, 8.8 Amp, 22,100 CFM High and 13,000 CFM Low, 6.74 Foot Power Cord, 4 Inch Rubber Wheels, UL and cUL

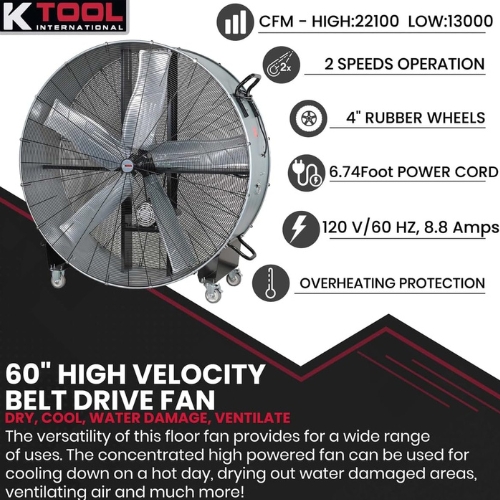

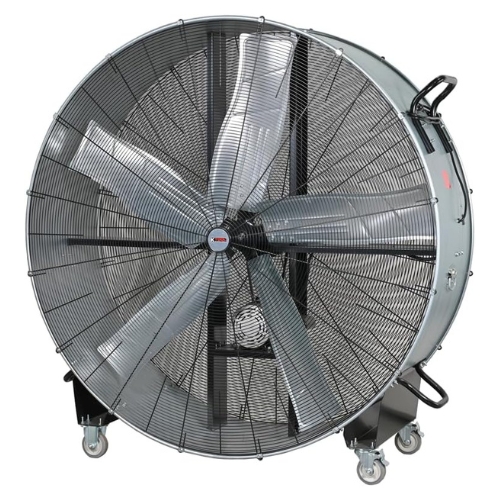

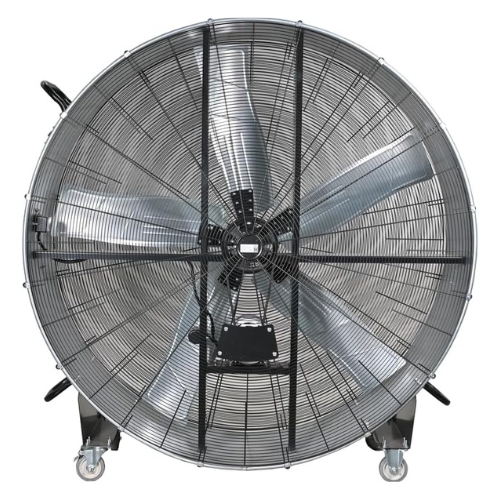

• K-Tool International 77760 is a 60 inch belt drive drum fan for industrial ventilation and cooling. The two speed motor delivers 22,100 CFM on high and 13,000 CFM on low, and overheating cut off protection supports continuous duty. A 6.74 foot power cord and four 4 inch rubber wheels aid mobility.
• Features:
  • Two speed airflow, 22,100 CFM high and 13,000 CFM low, helps accelerate cooling, drying, and air circulation in large spaces
  • Belt drive with three blade aluminum prop provides strong airflow while helping reduce motor noise for shop comfort
  • Overheating cut off protection adds a safety layer for demanding industrial use

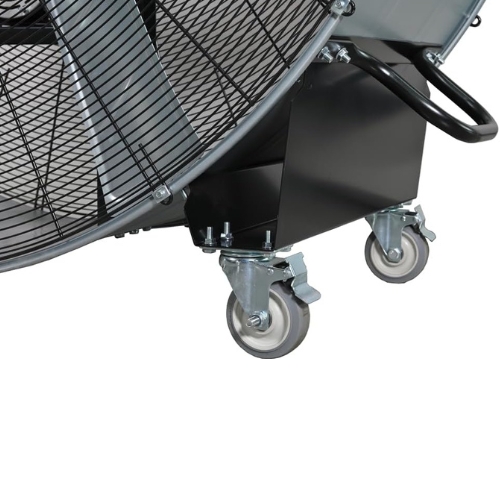

  • Four 4 inch rubber wheels, two locking, improve portability and stable placement around facilities
  • 120 volt, 60 Hz, 8.8 amp input fits common shop circuits for quick setup
• Specifications:
  • Manufacturer: K-Tool International
  • Part Number: 77760
  • Fan Diameter: 60 inch
  • Drive Type: Belt drive; three blade aluminum propeller
  • Airflow: 22,100 CFM high; 13,000 CFM low
  • Electrical: 120 volt, 60 Hz; 8.8 amp
  • Power Cord Length: 6.74 foot
  • Mobility: Four 4 inch rubber wheels (two fixed, two locking)
  • Approvals: UL and cUL
  • System Compatibility / Application: Industrial drum fan for ventilation, cooling, and drying in warehouses, shops, barns, gyms, and greenhouses; not a replacement part
• The K-Tool International 77760 belt drive drum fan can also be referred to as high velocity industrial fan, portable warehouse drum fan, 60 inch barrel fan, two speed shop fan, and belt drive floor fan.

K-Tool International supplies industrial ventilation and shop equipment for commercial and automotive facilities. Model 77760 pairs a belt driven, two speed airflow system with portable wheel mounts and safety approvals to deliver dependable, high volume air movement in large spaces.

Q: What airflow does each speed provide?
A: High speed delivers 22,100 CFM and low speed delivers 13,000 CFM for flexible cooling and ventilation performance.

Q: What power does the fan require?
A: It operates on 120 volt, 60 Hz power and draws 8.8 amp. Use a properly rated circuit according to local electrical codes.

Q: Are the wheels locking for stability?
A: Yes. The fan includes four 4 inch rubber wheels with two locking to help secure the unit during operation.
