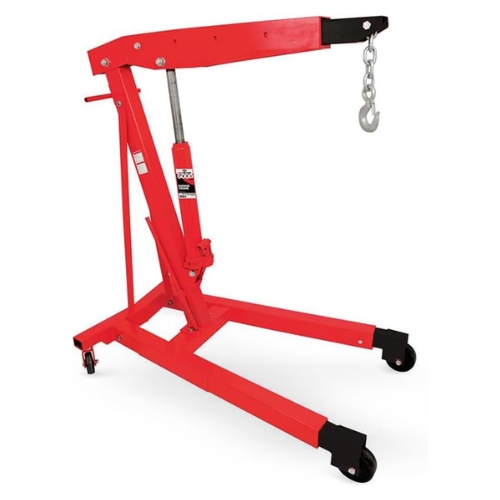

AFF 3584 Heavy-Duty Steel Engine Crane, 3-Ton Capacity
- The AFF 3584 is a professional-grade engine crane constructed from heavy-duty steel, designed for removing and installing engines, transmissions, and other large vehicle components. With a 3-ton (6,000 lb) lifting capacity and four adjustable boom positions, it is ideal for trucks, buses, and fleet maintenance applications.
- Features:

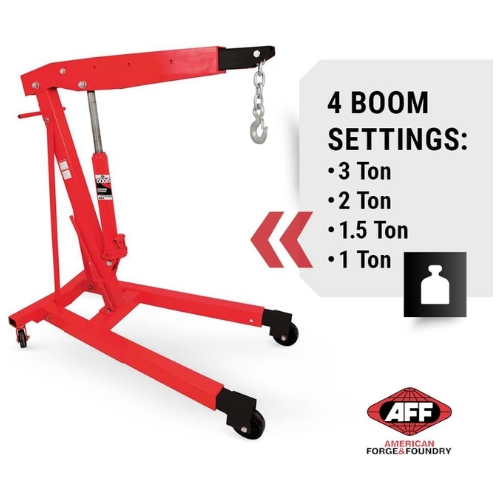

- Four boom positions provide variable lifting capacities: 3-ton, 2-ton, 1.5-ton, and 1-ton depending on boom extension.

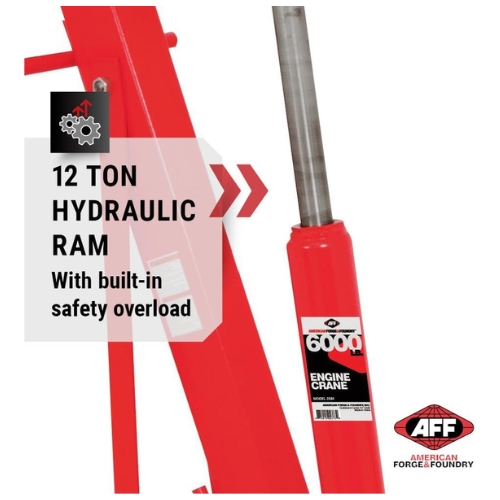

- Equipped with a 12-ton hydraulic ram that includes built-in overload protection for operator safety.

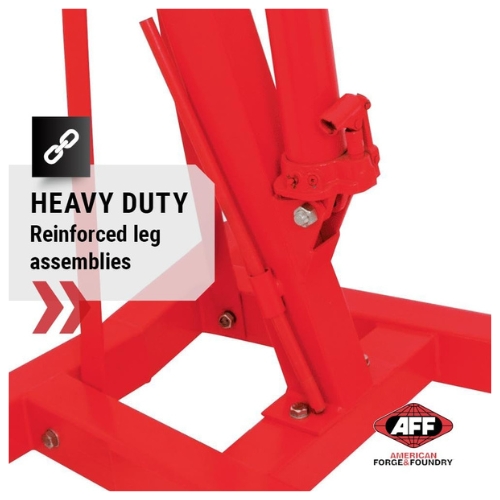

- Reinforced boom and leg assemblies prevent twisting and bending under heavy loads.
- Large maneuverable wheels: 6-inch front fixed wheels and 4.25-inch rear swivel casters for stability and mobility.
- Wide stance frame with retractable or extendable legs enhances stability during lifts.
- Forged steel hook with safety latch ensures secure attachment of loads.
- Specifications:
- Manufacturer: AFF (American Forge & Foundry)
- Part Number: 3584
- Capacity: 3 tons (6,000 lbs) maximum at shortest boom position
- Boom Positions: 3-ton, 2-ton, 1.5-ton, 1-ton

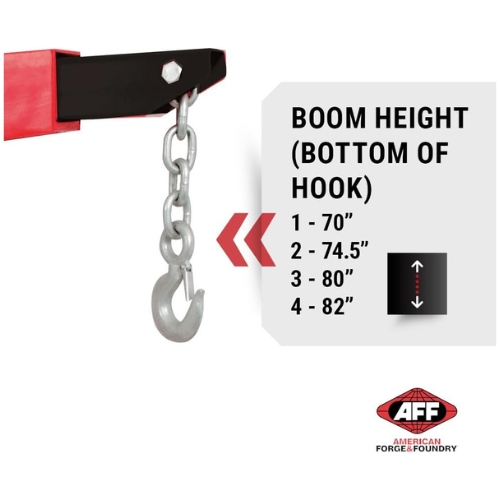

- Boom Height Range: approx. 70 inches (minimum) to 82 inches (maximum) depending on boom setting
- Boom Reach: approx. 35 inches (shortest) to 61 inches (longest)
- Rear Frame Dimensions: 61.5 inches tall x 33 inches wide
- Front Leg Width: 23 inches (retracted), 28.5 inches (extended)
- System Compatibility/Application: Designed for lifting engines, transmissions, and differentials in trucks, buses, and heavy equipment for service and maintenance
- The AFF 3584 may also be referred to as a 3-Ton Hydraulic Engine Hoist, Heavy-Duty Steel Engine Crane, or Commercial Truck Engine Lift.
The AFF 3584 engine crane is built with durable steel construction, a telescoping boom, and safety overload protection. Its high capacity and wide stance design make it a reliable solution for professional shops handling large trucks and fleet vehicles.
Q: What is the lifting capacity at the maximum boom extension?
A: At the longest boom extension, the crane supports up to 1 ton safely, while the shortest extension supports the full 3-ton capacity.
Q: How high can this crane lift?
A: Depending on the boom position, it lifts from about 70 inches to a maximum of 82 inches at the hook.
Q: What safety features does the AFF 3584 include?
A: It features a hydraulic ram with built-in overload protection, a forged hook with safety latch, and a wide stance frame with extendable legs for added stability.
