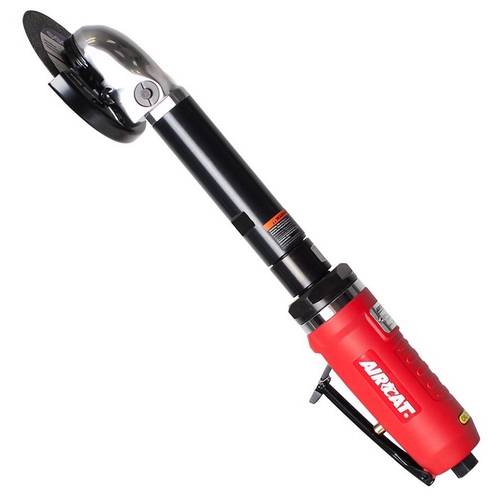

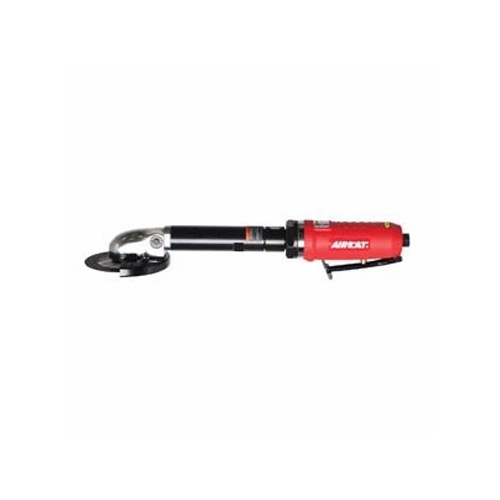

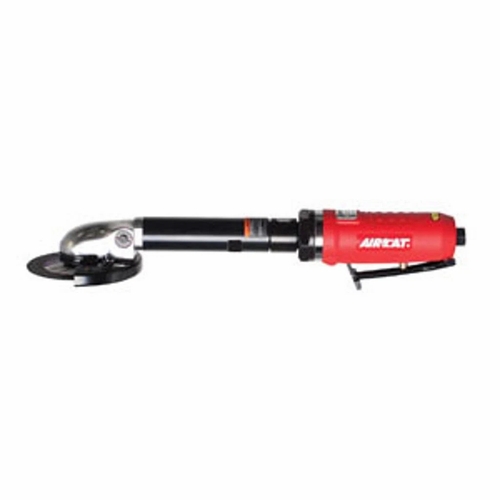

AIRCAT 6275-A Inside Corner Air Die Grinder, 1 HP, 14000 RPM, 4 inch Wheel
- AIRCAT 6275-A is an inside corner die grinder engineered to reach tight spaces where standard tools cannot. Its extended design and tapered gear housing allow work in corners as small as 30 degree, while a 1 HP motor and 14000 rpm free speed provide strong cutting performance. This is not a replacement part.
- Features:
- Extended reach with compact tapered gear housing lets the grinder operate in inside corners down to 30 degree for better access
- 1 HP motor and 14000 rpm free speed support fast cutting with 4 inch wheels to improve productivity on tough jobs
- Spindle lock and 11 position rotational guard aid quick wheel changes and targeted spark control for safer operation
- Spiral bevel steel gears enhance durability and smooth power delivery for longer service life
- Rear exhaust, 1/4 inch NPT air inlet, and about 6 cfm average air use integrate easily with common shop air systems
- Specifications:
- Manufacturer: AIRCAT
- Part Number: 6275-A
- Category: Air tools
- Subcategory: Die grinders and cut off tools
- Product Type: Inside corner die grinder
- Wheel Size: 4 inch
- Motor Power: 1 HP
- Free Speed: 14000 rpm
- Average Air Consumption: 6 cfm
- Air Inlet: 1/4 inch NPT
- Operating Pressure: 90 psi
- Exhaust: Rear
- Overall Length: 15.5 inch
- Weight: 3.75 lb
- Guard: 11 position rotational guard
- Spindle Lock: Yes
- Cutting Capacity: 3/4 inch rolled steel and 18 gauge sheet when used with appropriate wheels
- Compatible Wheels: 4 inch cut off wheels 1/16 x 3/8 and 1/8 x 3/8
- System Compatibility or Application: Designed for inside corner cutting and grinding with 4 inch wheels on shop air systems at 90 psi; not a replacement part for any SKU
- Alternate Identifier: ACA6275A distributor code
- The inside corner die grinder can also be referred to as inside corner die grinder, inside corner cut off tool, extended die grinder, 4 inch cut off grinder, and 14000 rpm die grinder.
AIRCAT is a manufacturer of high-performance pneumatic power tools, primarily known for its impact wrenches, ratchets, and grinders. Founded in 1998 and now a part of the Continental Tool Group, the brand specializes in tools that offer high torque with significantly reduced noise levels—often marketed under the slogan "More Power, Half the Noise".
Q: What minimum corner angle can the 6275-A reach?
A: The tapered housing and close-coupled wheel let the tool work in inside corners as small as 30 degree when using a 4 inch wheel.
Q: What air setup is recommended for best performance?
A: Supply clean, lubricated air at 90 psi through a 1/4 inch NPT inlet using full-flow fittings; plan for about 6 cfm average air use.
Q: Does it include quick-change and guard adjustments?
A: Yes. It has a spindle lock for wheel changes and an 11 position rotational guard to help direct sparks and debris.
