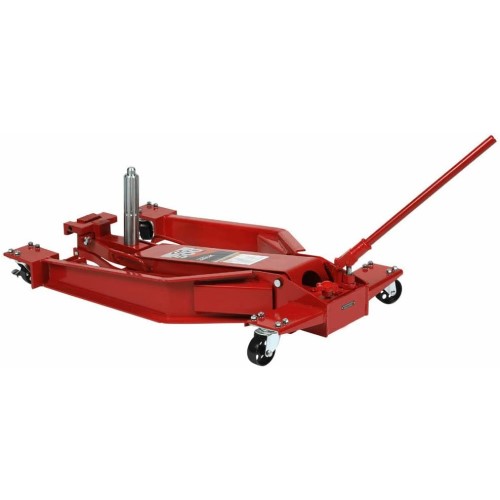

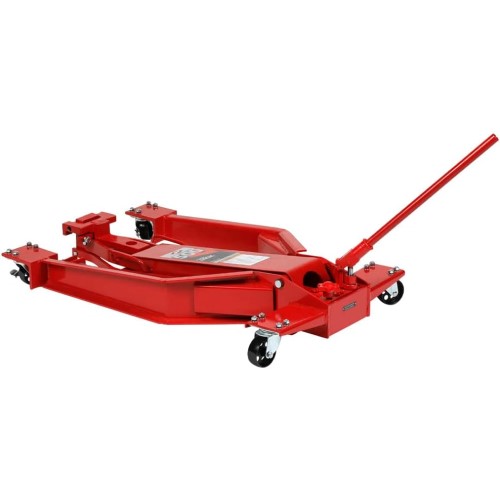

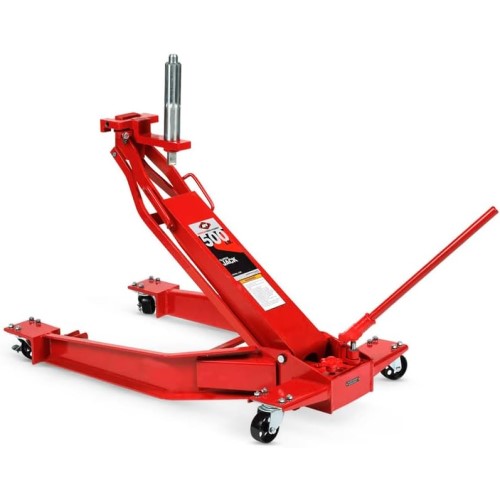

American Forge & Foundry 3700 Clutch Jack, 500 Lb. Capacity

American Forge & Foundry 3700 Clutch Jack, 500 Lb. Capacity

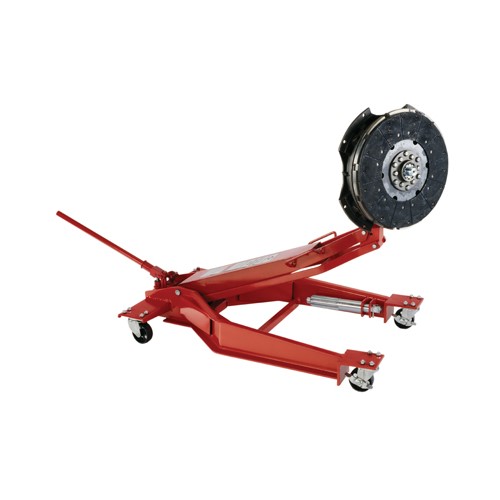

• Provides “one-man” operation for removal, installation, and transportation of heavy duty truck clutches

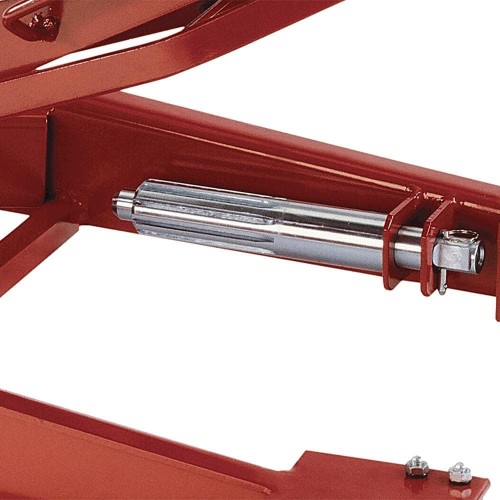

• Includes two splined alignment shafts (2” OD x 1.18” and 1.75” OD x .938 pilot)
• Unique pinned alignment shaft allows technician to remove jack to install clutch assembly without obstruction

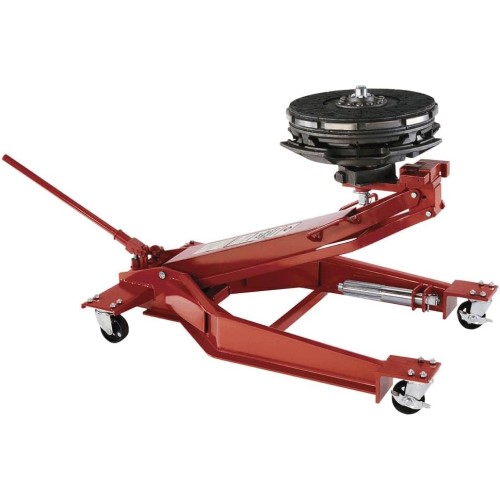

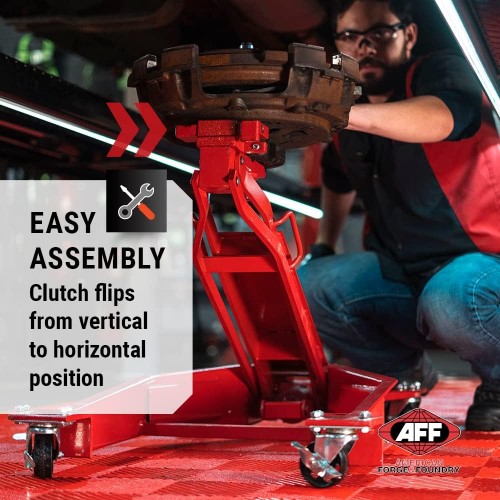

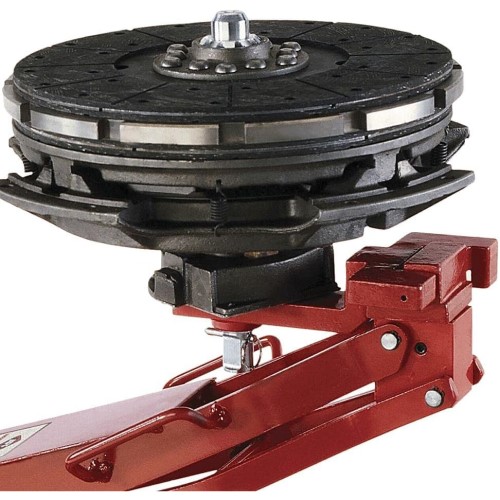

• Clutch assemblies can be built on the vertical shaft and then positioned easily under the truck
• Patented clutch head assembly (US patents 5,251,875, and 5,033,717)
• Specifications

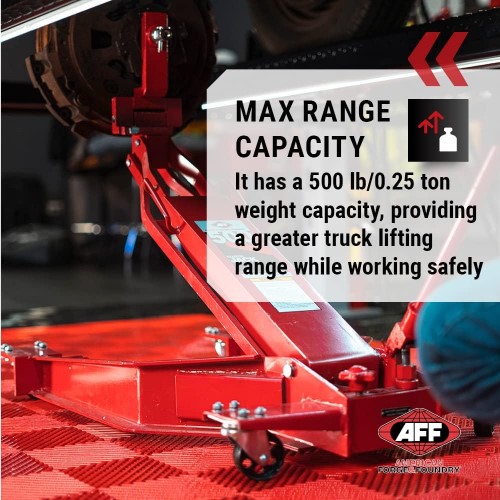

  • Capacity: 500 lbs.
  • Low Height: 13"
  • High Height: 39"
  • Length: 36-1/2"
  • Width: 22"
  • Ship Weight: 139 lbs.
• Description
  • Clutch Jack
  • Type: Heavy Duty
  • Load Rating: 500 Pounds
  • Height: 39 Inch (High), 13 Inch (Low)

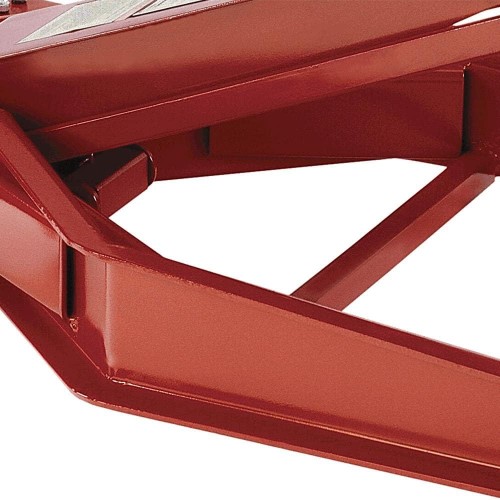

  • Frame Dimensions: 36.5 Inch x 22 Inch
  • Includes: (2) Splined Alignment Shaft 2 Inch Outer Diameter x 1.18 Inch, 1.75 Inch Outer Diameter x 0.938 Inch Pilot
