Astro Pneumatic 1833 ONYX Nano Flex-Head Angle Impact Wrench, 3/8 inch, 400 ft-lb Max Torque Astro Pneumatic AST.1833
View Larger

Astro Pneumatic 1833 ONYX Nano Flex-Head Angle Impact Wrench, 3/8 inch, 400 ft-lb Max Torque

Item # AST.1833
$207.86
Quantity:      On Hand: 9QTY_CHECK:9-net:-DB:9-VSTOCK:0  Sold As: each


Astro Pneumatic
More Products from Astro Pneumatic

  Add to Shopping List
  Save For Later


Overview



Astro Pneumatic 1833 ONYX Nano Flex-Head Angle Impact Wrench, 3/8 inch, 400 ft-lb Max Torque

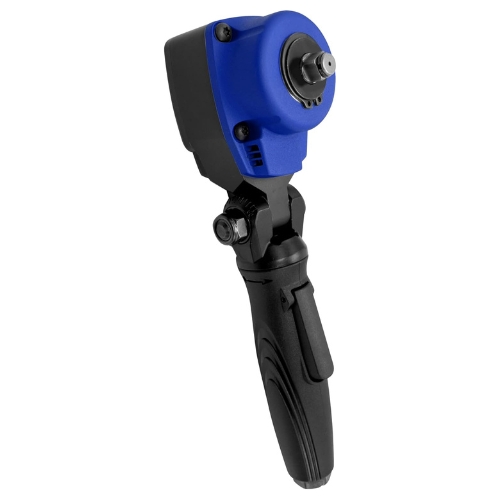

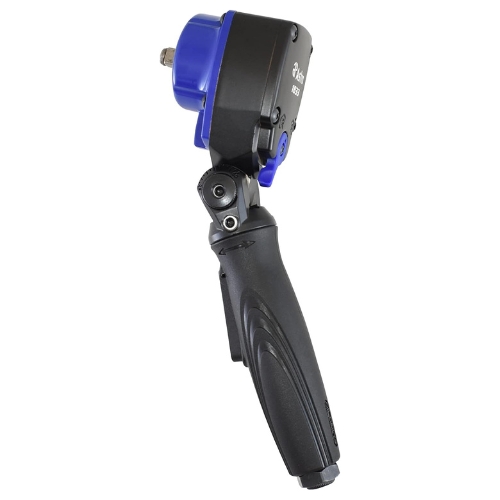

  • The Astro Pneumatic 1833 ONYX 3/8 inch Nano Flex-Head Angle Impact Wrench is a compact 3.34-inch flex-angle tool with a 180° pivoting head and 360° swivel handle. It features a dual-air intake motor and twin hammer mechanism for high power in tight spaces.
  • Features:
    • True 180° flex-head with 360° swivel grip enables better access in cramped angles.
    • Patented dual-air intake motor and twin hammer design deliver enhanced torque output for demanding tasks.
    • Supplies a max torque of 400 ft-lb and working torque of 280 ft-lb.
    • Ultra-compact 3.34 inch (85 mm) overall length fits tight work zones such as brake caliper areas.
    • Low air consumption (~4 CFM) and standard 1/4" NPT air inlet for compatibility with common shop setups.
  • Specifications:
    • Manufacturer: Astro Pneumatic
    • Part Number: 1833
    • Type: ONYX 3/8" Nano Flex-Head Angle Impact Wrench
    • Square Drive: 3/8 Inch
    • Working Torque: 280 ft-lb
    • Max Torque: 400 ft-lb
    • Overall Length: 3.34 inch (85 mm)
    • Vibration Level: 4.9 m/sec
    • Air Inlet: 1/4" NPT (6.35 mm)
    • Free Speed: 8,000 rpm
    • Air Pressure: 90 psi
    • Average Air Consumption: 4 CFM
    • System Compatibility : Ideal for automotive and industrial applications requiring high torque in tight clearance, such as brake caliper bolts, angle-access fasteners, tight engine compartments
  • The Astro Pneumatic 1833 ONYX may also be called the Astro 1833 flex-head impact, Nano angle impact gun, compact flex impact wrench, ONYX flex-head angle wrench, or tight-angle torque tool.



Astro Pneumatic manufactures professional air tools and shop equipment, including the ONYX series of compact impact wrenches engineered for high torque and accessibility in cramped applications.



Q: What is the maximum torque of the 1833?
A: The Astro 1833 delivers up to 400 ft-lb of max torque.



Q: What is its working torque?
A: Its working torque is rated at 280 ft-lb.



Q: How long is the 1833?
A: It has an overall length of 3.34 inch (85 mm).
