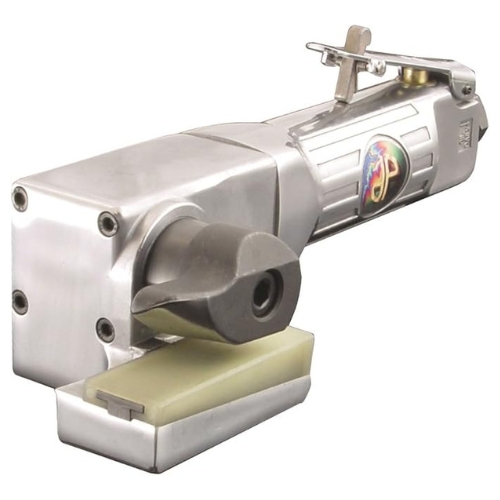

Astro Pneumatic DS1000 Pneumatic Door Skinning Tool, 1/4 inch NPT, 5 cfm
- The Astro Pneumatic DS1000 Pneumatic Door Skinning Tool is designed for folding and crimping automotive door skins, achieving factory-style flange rolling in a single pass and reducing labor time by allowing one-hand operation while maintaining consistent finish.
- Features:
- Forged and hardened steel crimping head for smooth flange rolling without ripples.
- Operates at 90 psi, using 5 cfm of air, to deliver efficient power.
- Compact overall length 8.25 inches and net weight of 3 lbs for ease of handling.
- 1/4-inch NPT air inlet and 3/8-inch hose size for standard shop compatibility.
- Quiet operation: sound pressure 85.5 dB(A), vibration 4.4 m/s2.
- Specifications:
- Manufacturer: Astro Pneumatic
- Part Number: DS1000
- Overall Length: 8.25 inch
- Horsepower: 1/2 hp
- Air Pressure: 90 psi
- Air Consumption: 5 cfm
- Air Inlet Thread: 1/4 inch NPT
- Recommended Hose Size: 3/8 inch
- Sound Pressure: 85.5 dB(A); Sound Power: 96 dB(A)
- Vibration Level: 4.4 m/s2
- System Compatibility: designed for automotive door skin folding, replacement of manual hammer and dolly methods
- The Astro Pneumatic DS1000 Pneumatic Door Skinning Tool can also be referred to as a door skinner, skin roller tool, flange crimper tool, auto body skinning device, and DS1000 tool.
Astro Pneumatic manufactures professional air tools and shop equipment, including the ONYX series of compact impact wrenches engineered for high torque and accessibility in cramped applications.
Q: What air pressure and flow does the DS1000 require?
A: It runs at 90 psi and consumes 5 cfm of air under typical load.
Q: What size air inlet and hose should I use?
A: The tool uses a 1/4-inch NPT air inlet; a 3/8-inch inside diameter hose is recommended.
Q: Is this tool suitable for one-hand operation?
A: Yes, it is designed to be operated with one hand, supporting efficient flange rolling without distortion in a single pass.
