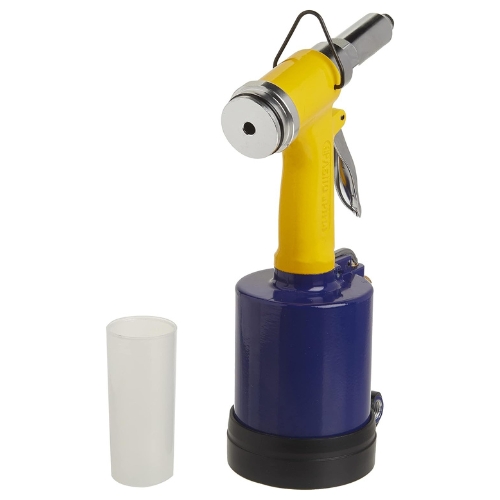

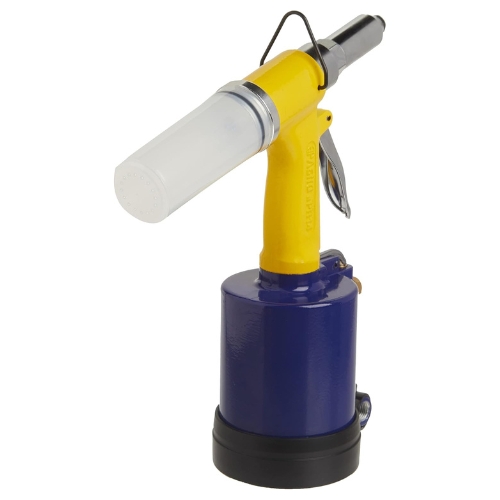

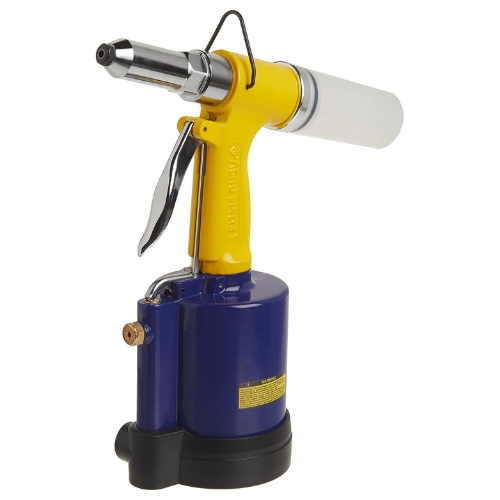

Astro Pneumatic PR14 Air Riveter, 3/32", 1/8", 5/32", 3/16" & 1/4" Capacity
- The Astro Pneumatic PR14 Air Riveter handles blind rivets from 3/32" up to 1/4" with a quick-release mechanism, enabling fast, quiet, and fatigue-resistant riveting even at odd angles or in tight spaces.
- Features:
- Includes five nose pieces: 3/32", 1/8", 5/32", 3/16", 1/4" for wide rivet coverage.
- Quick-release air valve accelerates return stroke and prevents overload during high cycle use.
- Flip-over body design allows access to stored nosepieces on underside.
- Operates reliably at 90-120 psi for shop compatibility.
- Solid pull strength: 2,423 pounds pulling pressure.
- Specifications:
- Manufacturer: Astro Pneumatic
- Part Number / Model: PR14
- Rivet Capacity: up to 1/4"

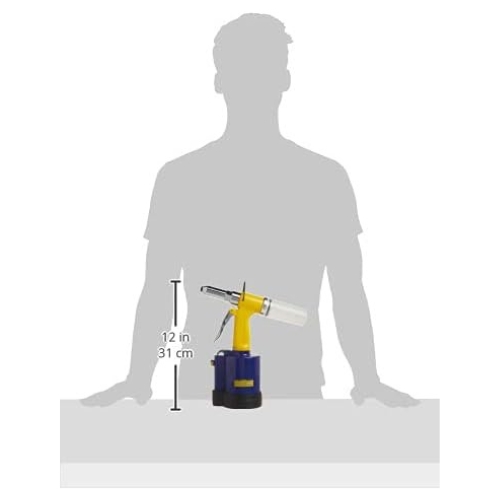

- Overall Length: 10-7/8" (280 mm)
- Pulling Pressure: 2,423 lbs
- Stroke: 15 mm
- Motor: 1/2 hp
- Air Inlet Thread (NPT): 1/4"
- Recommended Hose I.D.: 3/8" (10 mm)
- Average Air Consumption: 2.320 liters per stroke
- Operating Pressure Range: 90-120 psi
- System Compatibility: heavy duty blind-rivet installation in automotive, fabrication, industrial assembly, maintenance and repair environments
- The Astro Pneumatic PR14 can also be referred to as Astro PR14 blind rivet gun, 1/4" capacity air riveter, flip-body rivet tool, PR14 pneumatic rivet installer, and multi-size rivet shooter.
Astro Pneumatic manufactures professional air tools and shop equipment, including the ONYX series of compact impact wrenches engineered for high torque and accessibility in cramped applications.
Q: What rivet sizes can PR14 install?
A: It supports blind rivets from 3/32" up to 1/4" using the included interchangeable nosepieces.
Q: What air pressure and stroke specs apply?
A: It operates at 90-120 psi with a 15 mm stroke, drawing about 2.320 liters per stroke.
Q: What is its pulling strength?
A: Rated for 2,423 lbs of pulling pressure - sufficient for many standard blind rivet installations.
