Autel BT506 Battery & Electrical Analysis Tool, Plastic Adaptive Conductance Tester, 12 Volt System Autel AUL.BT506
View Larger

Autel BT506 Battery & Electrical Analysis Tool, Plastic Adaptive Conductance Tester, 12 Volt System

Item # AUL.BT506
$185.67
Quantity:      On Hand: 8QTY_CHECK:8-net:-DB:8-VSTOCK:0  Sold As: each


Autel
More Products from Autel

  Add to Shopping List
  Save For Later


Overview



Autel BT506 Battery & Electrical Analysis Tool, Plastic Adaptive Conductance Tester, 12 Volt System

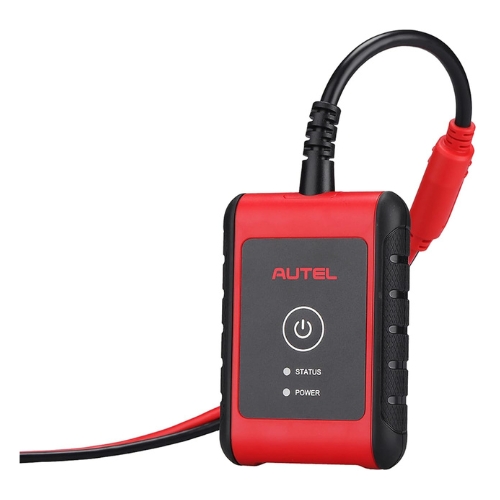

  • The Autel BT506 is a plastic battery and electrical system analysis tool that uses Adaptive Conductance for accurate testing of 12 volt batteries (100-2000 CCA). It connects via iOS or Android app to display test results and perform diagnostics. It supports Flooded, AGM, AGM Spiral, EFB, and GEL battery types, and can evaluate both cranking and charging systems.
  • Features:
    • Adaptive Conductance algorithm tests cold cranking ability and reserve capacity without fully discharging the battery.
    • Supports in-vehicle or out-of-vehicle testing; compatible with 6V/12V batteries ranging from 100 to 2000 CCA.

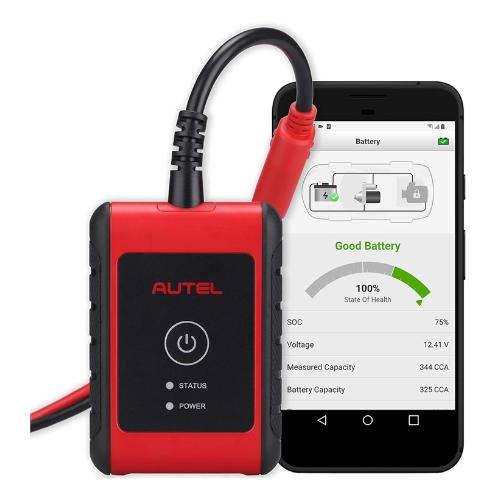

    • Bluetooth app support (BT V3.0 and BLE V4.2) to view diagnostics, battery health, and historical reports.
    • Compatible with multiple battery rating standards: CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA.

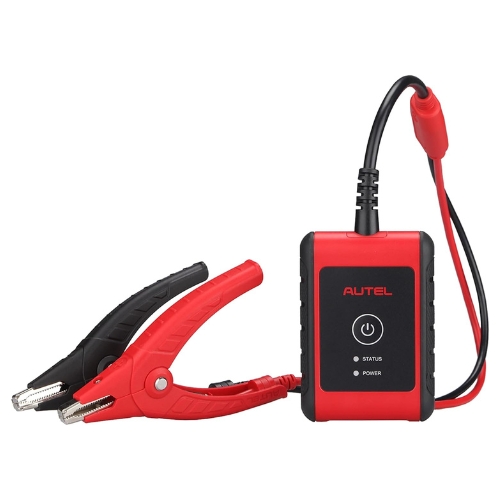

    • Includes test cable with clamps; input power via USB Type-C or vehicle battery source; low working current draw.
  • Specifications:
    • Manufacturer: Autel
    • Model / SKU: BT506
    • Material: Plastic housing
    • CCA Test Range: 100 to 2000 amps
    • Voltage Range: 1.5 to 16 volts operating; supports 6V-12V batteries and 12V-24V cranking/charging system checks
    • Connectivity: USB Type-C and Bluetooth dual mode (BT V3.0 BR/EDR + BLE V4.2 LE)
    • Working Current Draw: Less than 150 mA at 12 volts
    • Operating Temperature Range: -10 to 50 C
    • System/Application: Battery health diagnostics, cranking/charging system evaluation for automotive and passenger vehicles
  • The Autel BT506 may also be referred to as Adaptive Conductance Tester BT506, Autel battery health tool, BT506 battery and electrical analysis adapter, app-based battery diagnostic device, or Autel wireless battery tester.

The Autel BT506 Adaptive Conductance Tool combines advanced diagnostic technology, app integration, and broad battery type compatibility to help technicians assess battery and charging system health with precision and ease.

Q: What battery types does the BT506 support?
A: It supports Flooded, AGM, AGM Spiral, EFB, and GEL battery types in 12-volt system testing.

Q: Can it test charging and cranking systems?
A: Yes, it can test charging and cranking systems in-vehicle, including alternator output and starter draw, with results displayed in the app.

Q: What connectivity and compatibility does it have?
A: The BT506 connects via Bluetooth dual mode (BR/EDR + BLE) and USB Type-C, and works with a mobile app available for iOS and Android devices.
