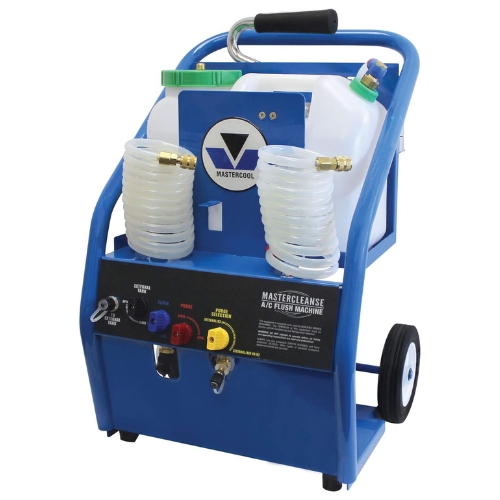

Mastercool 69900 Mastercleanse AC Flush Machine
- The Mastercool 69900 Mastercleanse Flush Machine is a high-volume flush unit for cleaning HVAC/R and automotive systems; it removes solids and residue from compressors or filters and is built with durable roll-away wheels and a handle for mobility.
- Features:
- Stainless steel ball-valve controls and a 1/4 inch SAE inlet/outlet connection ensure secure, corrosion-resistant flow control.
- Pump equipped with mechanical seal and PTFE gasket plus mechanical filter on suction side to prevent damage from particulates.
- Includes external nitrogen bottle connection and external container connection to enhance flushing versatility and capacity.
- Flush container capacity of 2.6 gallons, 9 foot flexible coiled hose, and mobile design make it suitable for professional garages and repair shops.
- Specifications:
- Manufacturer: Mastercool
- Part Number: 69900
- Electrical: 110 V / 60 Hz supply; motor rated 300 watts
- Pump Flow Rate: 4 gallons per minute (16 liters per minute)
- Full Load Amperage: 2.4 amps (at 110 V / 60 Hz); alternate version 220-240 V / 50/60 Hz draws 1.7 amps
- Flush Container Capacity: 2.6 gallons
- Hose Length: 9 feet (3 meters), flexible clear coiled type
- Dimensions: 15 inch long x 16 inch wide x 24 inch high; with handle extended height becomes 36 inch
- System Compatibility: Designed for flushing automotive and HVAC/R systems; removes solids, residues from filters or compressor failure; safe for A/C system components
- The Mastercool 69900 can also be referred to as HVAC system flusher unit, Mastercleanse flush equipment, automotive A/C flush machine, high-volume flush machine, Mastercool A/C flush system.
Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.
Q: What type of systems can this machine flush?
A: It is compatible with both automotive and HVAC/R systems, and it is designed to remove compressor debris or filter residues from standard A/C/R components.
Q: What are the electrical requirements?
A: The 69900 runs on 110 V / 60 Hz drawing about 2.4 amps; there is a 220-240 V / 50/60 Hz version that draws roughly 1.7 amps.
Q: Does the machine include hoses and mounting?
A: Yes, it includes a 9 foot flexible coiled clear hose plus external connections for containers and nitrogen bottles, and is mounted on roll-away wheels with a handle for mobility.
