Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit, 8 oz Dye Cartridge, Caulking Gun Injector, R-134a Hose Coupler, UV Flashlight Tracer Products TRA.LF016
View Larger

Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit, 8 oz Dye Cartridge, Caulking Gun Injector, R-134a Hose Coupler, UV Flashlight

Item # TRA.LF016
$221.72
Quantity:      On Hand: 7QTY_CHECK:7-net:-DB:7-VSTOCK:0  Sold As: each


Tracer Products
More Products from Tracer Products

  Add to Shopping List
  Save For Later


Overview



Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit, 8 oz Dye Cartridge, Caulking Gun Injector, R-134a Hose Coupler, UV Flashlight

  • Tracer Products LF016 BigEZ Universal A/C Leak Detection Kit is a dye injection and UV inspection kit for automotive A/C leak detection. It adds fluorescent dye to R-134a systems and supports R-1234yf with an LF60 adapter. It is a service kit, not a vehicle replacement part, and treats up to 64 systems.
  • Features:
    • 8 oz multi-dose dye cartridge treats up to 64 A/C systems, reducing changeouts during high volume service.

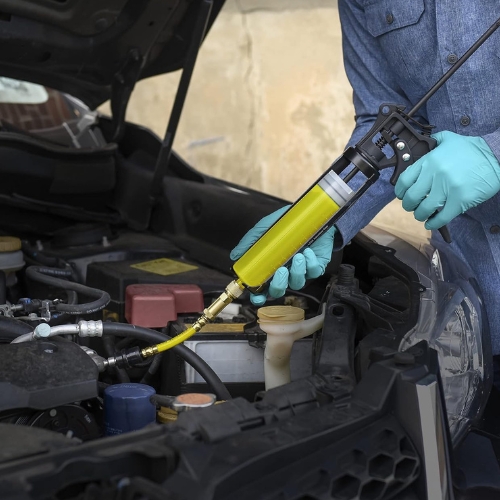

    • Durable caulking gun style metal injector provides controlled dye charging for consistent results.
    • R-134a low-side hose coupler with purge fitting; R-1234yf use requires LF60 adapter sold separately.

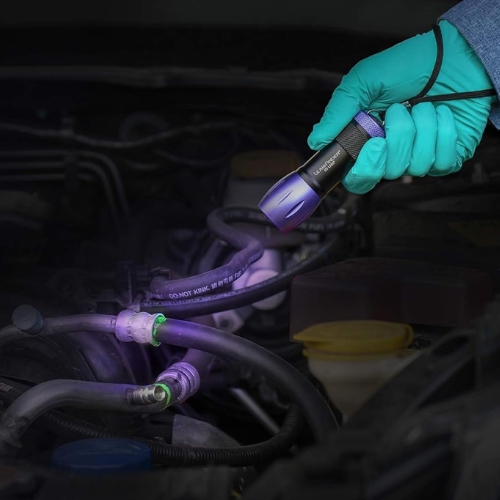

    • Cordless violet LED flashlight enhances fluorescent dye visibility to speed leak pinpointing.
    • Universal ester dye is specified for all refrigerant system types for broad shop compatibility.
    • 18 in service hose improves reach from the service cart to the vehicle port.

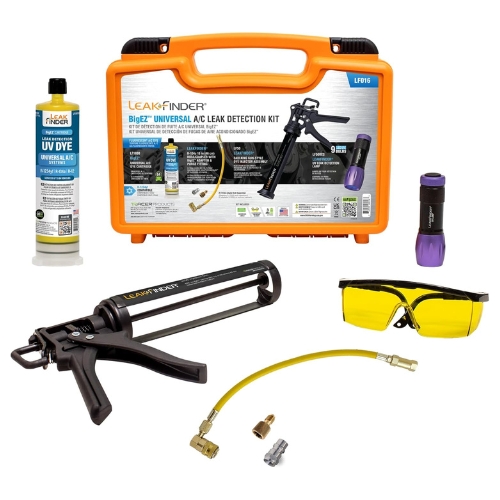

  • Includes:
    • LF50 caulking gun style dye injector assembly
    • BigEZ R-134a hose/coupler and purge fitting
    • LF500CS cordless violet LED leak detection flashlight
    • LF1800 8 oz (237 ml) BigEZ universal multi-dose A/C dye cartridge
    • TP9747 18 in hose with R-134a low-side coupler and purge fitting
    • Note: R-1234yf systems require LF60 adapter (sold separately)
  • Specifications:
    • Manufacturer: Tracer Products
    • Part Number: LF016
    • Product Type / Function: A/C dye injection and UV leak detection kit
    • Dye Type: Universal ester fluorescent dye
    • Cartridge Size: 8 oz (237 ml)
    • Service Capacity: Up to 64 A/C systems per cartridge
    • Hose and Coupler: R-134a low-side coupler with purge fitting; 18 in hose
    • Light: LF500CS cordless violet LED leak detection flashlight
    • Injector: LF50 metal caulking gun style injector
    • System Compatibility / Application: Designed for R-134a systems; supports R-1234yf with LF60 adapter; not a vehicle replacement part
    • Alternate Part Numbers / Cross References: TP-LF016
    • Packaging Type: Single kit
  • The BigEZ Universal A/C Leak Detection Kit can also be referred to as AC dye kit, refrigerant leak detection kit, UV dye injector kit, R-134a hose coupler kit, and UV flashlight AC leak detection kit.



Tracer Products designs and manufactures automotive and industrial leak detection solutions, including LeakFinder dyes, injection tools, and inspection lights used by professional service technicians.



Q: Does the kit work on R-1234yf systems?
A: Yes, with the LF60 adapter. The kit connects directly to R-134a; R-1234yf requires the LF60 adapter which is sold separately.



Q: How many vehicles can one cartridge service?
A: The 8 oz cartridge is specified to treat up to 64 A/C systems.



Q: Which service port does the hose connect to on R-134a systems?
A: The included hose uses an R-134a low-side coupler and connects to the low-side service port.
