Mastercool 56100 Raptor Refrigerant Leak Detector Corona Discharge Sensor Kit, 16 inch Probe MasterCool MSC.56100
View Larger

Mastercool 56100 Raptor Refrigerant Leak Detector Corona Discharge Sensor Kit, 16 inch Probe

Item # MSC.56100
$215.75
Quantity:      On Hand: 16QTY_CHECK:16-net:-DB:16-VSTOCK:0  Sold As: each


MasterCool
More Products from MasterCool

  Add to Shopping List
  Save For Later


Overview



Mastercool 56100 Raptor Refrigerant Leak Detector Corona Discharge Sensor Kit, 16 inch Probe

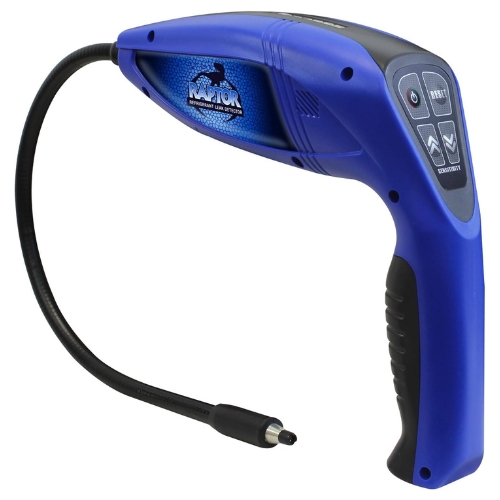

  • The Mastercool 56100 Raptor Refrigerant Leak Detector is an electronic leak detector using a corona discharge sensor, certified under SAE J1627; compatible with CFC, HCFC, HFC refrigerants, featuring a flexible 16-inch probe to access tight areas; includes sensor tip and 2 "C" batteries.
  • Features:

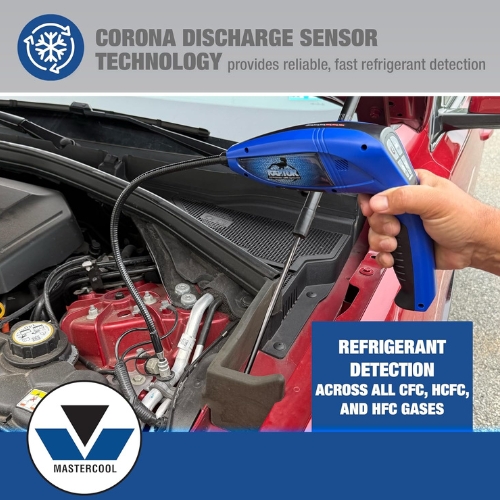

    • Corona discharge sensor with microprocessor signal processing, providing rapid detection of refrigerant leaks down to about 1/10 ounce per year.
    • Three sensitivity levels (with five detection thresholds) allow adjustable sensitivity to match leak size or environmental conditions.
    • LED visual leak level indicator and variable frequency audible alarm help pinpoint leak source with both sight and sound.

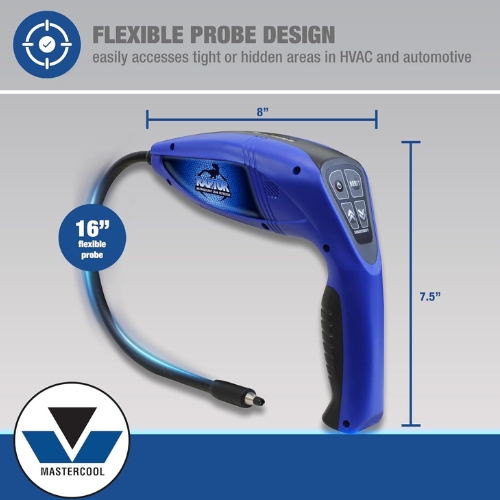

    • Flexible 16 inch (43 cm) probe enables service in confined or hard-to-reach spaces.
  • Includes:
    • Leak detector unit (56100 Raptor)
    • Flexible probe 16 inch length
    • Sensor tip (replaceable, 55100-SEN)
    • 2 "C" size batteries (included)

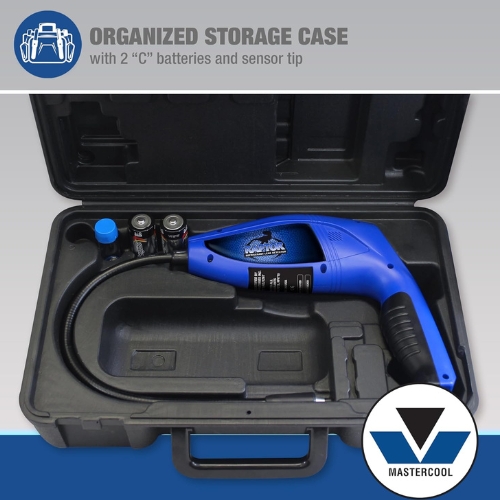

    • Blow molded carrying case
  • Specifications:
    • Manufacturer: Mastercool Inc.
    • Part Number: 56100
    • Sensor Type: Corona Discharge

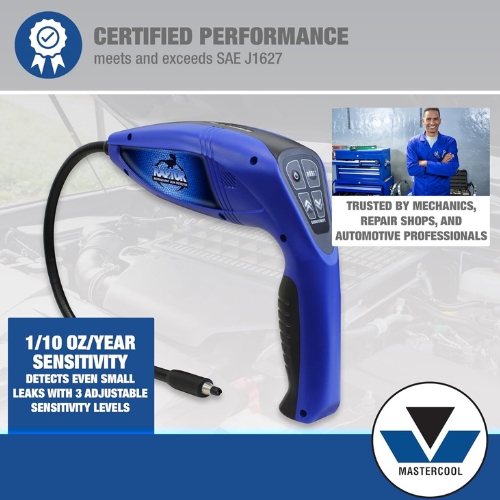

    • Sensitivity: Detects leaks as small as 1/10 ounce per year
    • Sensitivity Levels: 3 levels; with 5 detection thresholds
    • Refrigerant Compatibility: CFCs, HCFCs, HFCs and blends
    • Standards / Certification: Meets or exceeds SAE J1627
    • Probe Length: 16 inches (43 cm)
    • Power Source: 2 "C" batteries (included)
    • System Compatibility: Designed for HVAC/R and automotive systems where detection of small leaks is required; useful for technicians servicing A/C, refrigeration with varied refrigerants per SAE J1627.
  • The Mastercool 56100 can also be referred to as Mastercool Raptor leak detector, corona discharge refrigerant detector, portable refrigerant sniffer SAE J1627, 1/10 oz leak detection electronic tool, and flexible probe leak detector 56100



Mastercool is a family-owned manufacturer of professional HVAC/R and automotive A/C service tools and equipment, including manifolds, gauges, vacuum pumps, recovery units, leak detectors, and fittings.



Q: What is SAE J1627 and why does it matter for this leak detector?
A: SAE J1627 is a standard that specifies performance and sensitivity criteria for electronic leak detectors when detecting refrigerants; meeting it means the 56100 detector can reliably detect small leaks across many common refrigerants.



Q: How long are the batteries expected to last under typical use?
A: Mastercool does not publish exact continuous-use hour ratings for the 56100; however it comes with 2 "C" batteries and includes a battery test function so users can know when to replace them.



Q: How do I reduce false positives when using this detector?
A: Use the reset function to calibrate to ambient refrigerant levels; avoid operating near refrigeration leaks, vents or exhausts; hold the probe tip about 1/4 inch away from suspected surface and sweep slowly. Also allow the detector to stabilize in the working area before starting.
