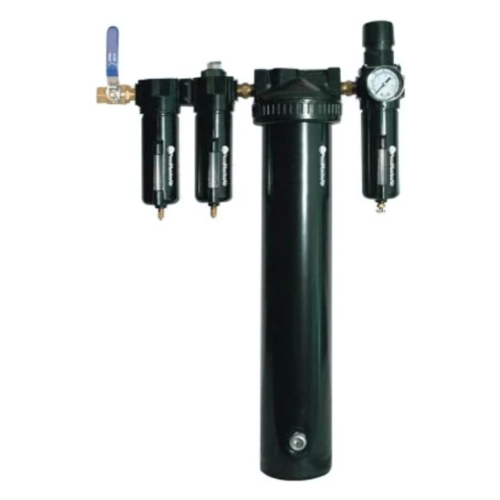

Arrow Pneumatics PC7612XXL Air Filter with Gauge, Steel Five-Stage Desiccant Filter/Dryer System
Arrow Pneumatics PC7612XXL Air Filter with Gauge, Steel Five-Stage Desiccant Filter/Dryer System
- The Arrow PC7612XXL Air Filter with Gauge is a steel five-stage desiccant filter/dryer unit designed for high performance compressed air filtration; includes a one gallon desiccant dryer and built-in pressure gauge for precise monitoring.
- Features:
- Five-stage filtration: 40-micron primary filter, .01-micron coalescing filter with pop-up indicator, desiccant dryer lowering dew point to ?30 degreesF, 3-micron post-filter, and integrated regulator adjustable from 5-125 psi.
- Steel construction with metal filter bowls (9 ounce each) with sight glass for easy visual monitoring.
- Easy-fill bowl with shut-off valve for safe maintenance and refill of desiccant.
- Made in the U.S.A. to ensure quality and build standards.
- Specifications:
- Manufacturer: Arrow Pneumatics
- Part Number / SKU: PC7612XXL
- Material: Steel
- Filtration Stages: Five (40-micron filter, .01-micron coalescing, desiccant dryer, 3-micron filter, regulator)
- Desiccant Capacity: One gallon desiccant beads
- Regulator Range: 5-125 psi
- Working Dew Point: ?30 degreesF (with desiccant stage active)
- Bowl Type: 9 oz metal with sight glass
- System/Application: Compressed air filtration and drying for pneumatic tools, spray booths, and industrial air systems
- The Arrow PC7612XXL can also be referred to as PneuMasterAir 5-Stage Desiccant Filter/Dryer, steel air filter with gauge, industrial air filter dryer system, Arrow five-stage dryer, and steel compressed air filter-dryer combo.
The Arrow PC7612XXL filter/dryer system offers robust steel build and comprehensive air purification to remove moisture, oil, and contaminants; it delivers clean, dry air for demanding pneumatic applications.
Q: What filtration stages does this unit include?
A: It includes a five-stage filtration system: a 40-micron filter, .01-micron coalescing filter with indicator, desiccant dryer stage, a 3-micron post-filter, and a regulator adjustable from 5-125 psi.
Q: What is the dew point achievable with this filter/dryer?
A: With the desiccant dryer stage, it lowers the dew point to approximately ?30 degreesF.
Q: What is the material of construction?
A: The unit is constructed from steel, including metal filter bowls with sight glass, for durability in industrial environments.
