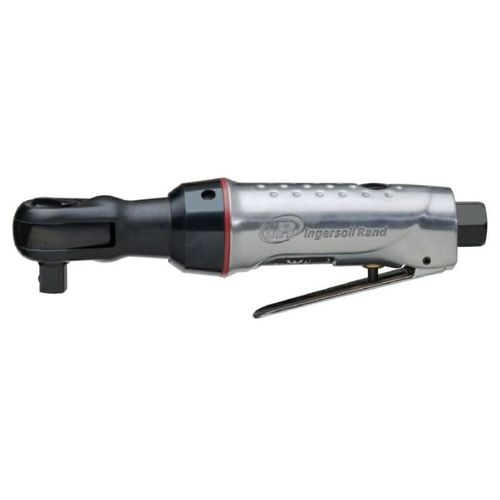

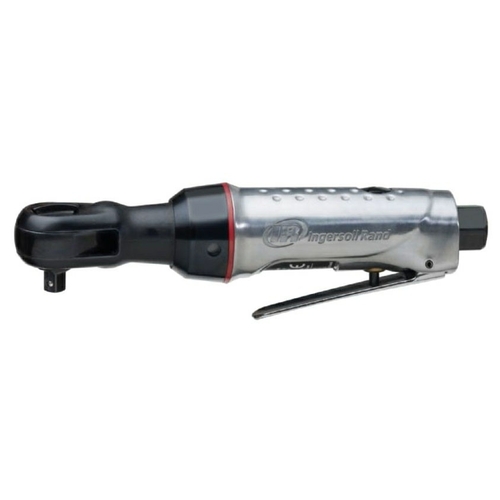

Ingersoll Rand 105-D3 3/8" Drive Mini Air Ratchet, 25 Feet-Lbs Torque, 250 RPM
- The Ingersoll Rand 105-D3 is a compact and durable 3/8-inch drive mini air ratchet, delivering a maximum torque of 25 Feet-Lbs and a free speed of 250 RPM. Designed for automotive repair professionals, its lightweight construction and low-profile forward/reverse control make it ideal for working in tight and confined spaces.
- Features:
- Compact and lightweight design for easy handling
- Low-profile forward/reverse control for enhanced accessibility
- Durable aluminum housing and steel head construction
- Variable speed lever actuation for precise control
- Ball detent anvil for secure socket retention
- Specifications:
- Manufacturer: Ingersoll Rand
- Part Number: 105-D3
- Drive Size: 3/8"
- Max Torque: 25 Feet-Lbs (34 Nm)
- Free Speed: 250 RPM
- Length: 7.3" (186 mm)
- Average Air Consumption: 3 CFM (85 L/min)
- Sound Pressure: 81.8 dBA
- Vibration Level: 5.1 m/s²
- Air Inlet: 1/4" NPTF
- Minimum Hose Size: 3/8" (10 mm)
- The Ingersoll Rand 105-D3 3/8" Drive Mini Air Ratchet is also known as a 3/8-inch pneumatic ratchet wrench, compact air-powered ratchet, 3/8-inch drive air ratchet tool, mini air ratchet with 25 Feet-Lbs torque, and Ingersoll Rand 105 Series air ratchet.
Ingersoll Rand, established in 1871, is a global leader in providing innovative and reliable industrial solutions. With a rich history of engineering excellence, Ingersoll Rand offers a wide range of power tools designed for professional use, ensuring quality and performance in demanding applications.
Q: What is the maximum torque output of the Ingersoll Rand 105-D3 air ratchet?
A: The 105-D3 delivers a maximum torque of 25 Feet-Lbs (34 Nm), suitable for various fastening and unfastening tasks.
Q: Is this air ratchet suitable for use in tight spaces?
A: Yes, its compact design and low-profile forward/reverse control make it ideal for working in confined areas.
Q: What is the weight of the 105-D3 air ratchet?
A: The tool weighs approximately 1.4 lbs (0.64 kg), offering a lightweight solution for extended use.
Q: What is the average air consumption of this tool?
A: The 105-D3 has an average air consumption of 3 CFM (85 L/min), ensuring efficient operation.
Q: What size air hose is recommended for use with this air ratchet?
A: A minimum hose size of 3/8" (10 mm) is recommended to ensure optimal performance.
