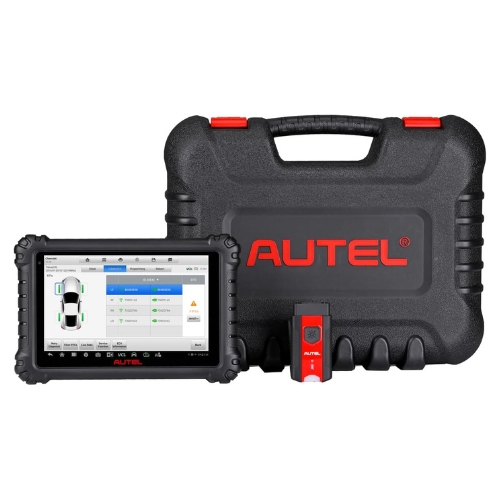

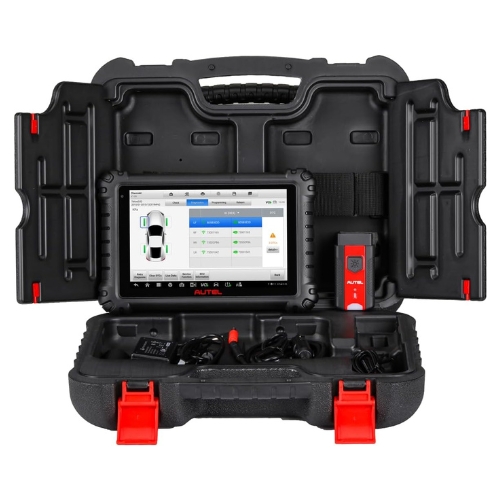

Autel MS906Pro-TS Diagnostic Tablet, Aluminum, Wireless Bi-Directional Scanner
- The Autel MS906Pro-TS Diagnostic Tablet is an aluminum wireless scanner tablet with Bluetooth VCI, built for comprehensive diagnostics on 1996 and newer U.S., Asian, and European vehicles. It supports full-system scans, active tests, TPMS service, coding and adaptations, ADAS calibrations (with optional frame), and has 8-inch 1920 x 1200 display with long-life battery.
- Features:

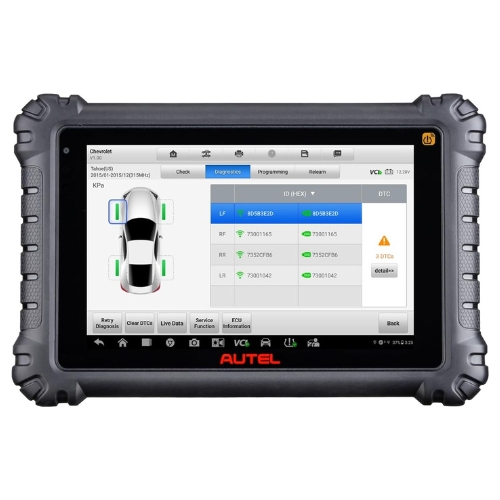

- Aluminum housing with 8-inch 1920 x 1200 touchscreen for sharp visuals and durability.

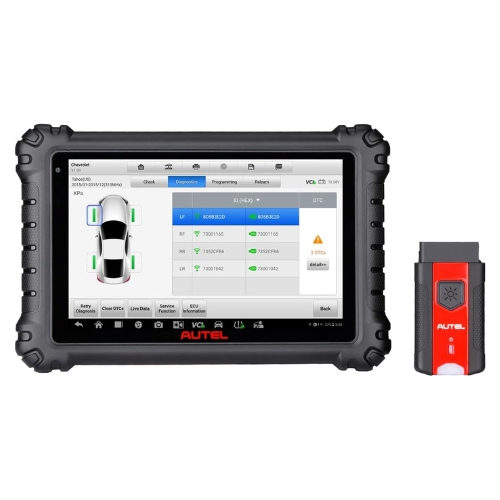

- Wireless Bluetooth vehicle communication interface (MaxiVCI V200) supporting latest protocols including CAN-FD/DoIP.
- Active diagnostic functions: read/erase codes, view live data/free-frame; support bi-directional control for system diagnostics.
- Integrated TPMS module for TPMS sensor programming and relearn; supports programming Autel 1-Sensor for wide OE coverage.
- High battery capacity (11,600 mAh) ensures prolonged use in the field.
- Specifications:
- Manufacturer: Autel
- Model / Part Number: MS906Pro-TS
- Material: Aluminum
- Display: 8-inch 1920 x 1200 high-resolution touchscreen
- Processor & Memory: Octa-core CPU; 4 GB RAM and 128 GB internal storage
- Battery: 11,600 mAh rechargeable battery
- Camera: 16 megapixel front and 16 megapixel rear cameras
- Connectivity: Bluetooth (MaxiVCI V200), WiFi, USB
- Supported Functions: All systems diagnostics, TPMS programming and service, active/bi-directional tests, coding & adaptations, ADAS calibration (with frame), battery & electrical system analysis
- Vehicle Coverage: 1996 and newer vehicles from U.S., Asia, Europe
- System/Application: Professional workshop diagnostic tablet for full-system vehicle diagnostics, maintenance, and calibration work
- This Autel MS906Pro-TS may also be called MaxiSYS MS906Pro-TS scanner tablet, Pro-TS diagnostic & TPMS tablet, full system bidirectional scanner, ADAS-capable diagnostic tablet, and wireless diagnostic tool by Autel.
The Autel MS906Pro-TS Aluminum Diagnostic Tablet delivers powerful diagnostics including active tests, coding, TPMS service, and ADAS calibration capabilities in a rugged and mobile package for professional automotive workshops.
Q: What systems can MS906Pro-TS diagnose?
A: It can diagnose all available vehicle systems including engine, transmission, ABS, SRS, BCM etc., perform active tests, coding and adaptations.
Q: Does it support TPMS sensor programming?
A: Yes, it includes a TPMS antenna module and supports programming of OEM & aftermarket sensors including Autel 1-Sensor.
Q: What is the battery life and display specification?
A: It has an 11,600 mAh battery and a high-resolution 8-inch 1920 x 1200 touchscreen display.
