AFF 5620SD Air/Hydraulic Bottle Jack, Heavy-Duty Steel, 20-Ton Capacity, Super Duty Design American Forge & Foundry INT.5620SD
View Larger

AFF 5620SD Air/Hydraulic Bottle Jack, Heavy-Duty Steel, 20-Ton Capacity, Super Duty Design

Item # INT.5620SD
$382.41
Quantity:      Out of Stock*QTY_CHECK:0-net:-DB:0-VSTOCK:0  Sold As: each
Call for availability


American Forge & Foundry
More Products from American Forge & Foundry

  Add to Shopping List
  Save For Later


Overview

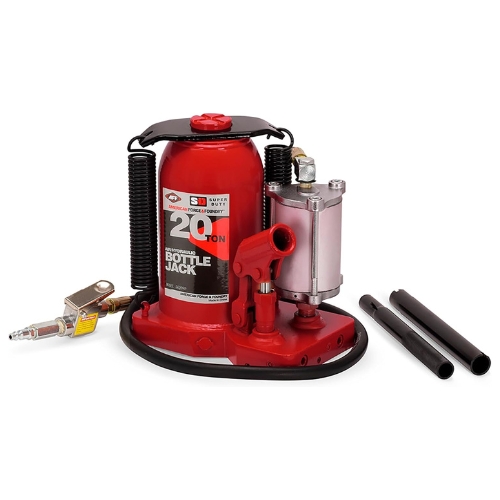

AFF 5620SD Air/Hydraulic Bottle Jack, Heavy-Duty Steel, 20-Ton Capacity, Super Duty Design

  • The AFF 5620SD is a heavy-duty steel air/hydraulic bottle jack with a 20-ton lifting capacity. Built with a welded tank and frame, reinforced base, and long ram guide, it is designed for safe lifting of heavy trucks, agricultural machinery, and industrial equipment in demanding shop environments.
  • Features:
    • 20-ton lifting capacity with dual operation: air assist for faster lifts and manual handle for flexibility.

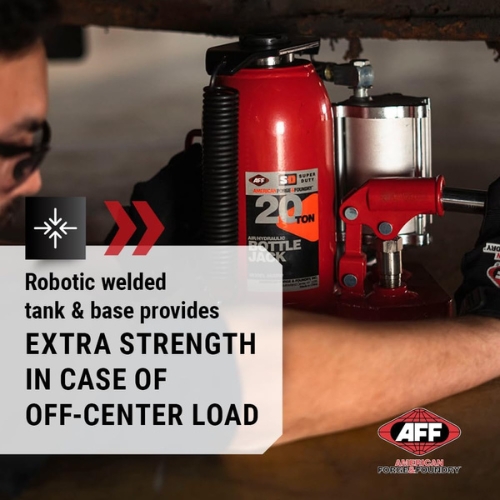

    • Welded tank and frame construction ensures durability under off-center and rough load conditions.

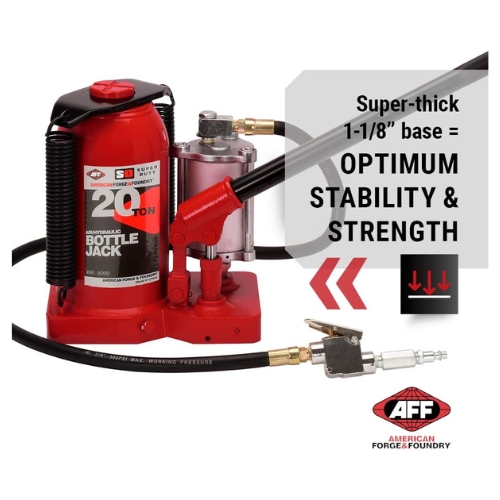

    • 1-1/8 inch thick steel base provides stability even on uneven surfaces.
    • Heavy-duty steel ram and cylinder with extended ram guide for safe, controlled lifting.
    • Protected internal release screw prevents accidental activation and damage.
    • Air swivel hose connection and handle included for convenient operation.
  • Specifications:
    • Manufacturer: AFF (American Forge & Foundry)
    • Part Number: 5620SD
    • Material: Steel
    • Capacity: 20 tons

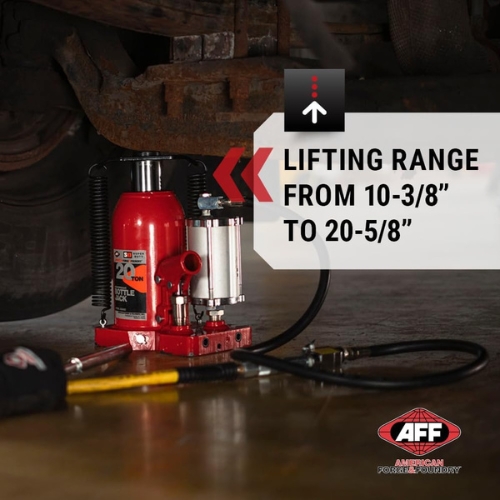

    • Low Height: 10.375 inches
    • Maximum Lift Height: 20.625 inches
    • Lift (Stroke): 6.375 inches
    • Base Dimensions: 5.75 inches x 9 inches
    • Base Thickness: 1-1/8 inches
    • System Compatibility/Application: Designed for lifting heavy-duty trucks, fleet vehicles, agricultural machinery, and industrial equipment
  • The AFF 5620SD may also be called a 20-Ton Super Duty Air/Hydraulic Bottle Jack or Heavy-Duty Steel Air-Assist Bottle Jack.



The AFF 5620SD Super Duty Air/Hydraulic Bottle Jack combines rugged steel construction, welded tank design, and flexible dual operation. Built for professional use, it delivers the power and safety required for fleet, truck, and industrial lifting applications.



Q: Can this jack operate without shop air?
A: Yes, it includes a manual handle option in addition to air assist operation for versatility in different environments.



Q: What is the minimum clearance required?
A: The jack requires approximately 10.375 inches of clearance in its lowest position.



Q: What is the maximum lifting height of the AFF 5620SD?
A: It raises up to about 20.625 inches at full extension, with a 6.375 inch lifting stroke.
