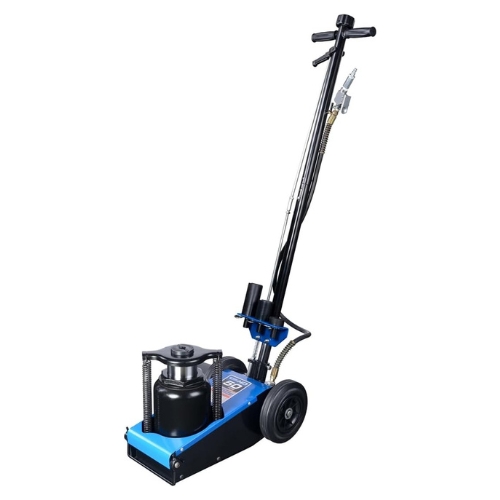

K-Tool International 63198 50 Ton Air Hydraulic Truck Jack, 11.4 to 21.25 Inch Lift Range, Load Limiting and Bypass Valves, Spring Return, T Handle Release

K-Tool International 63198 50 Ton Air Hydraulic Truck Jack, 11.4 to 21.25 Inch Lift Range, Load Limiting and Bypass Valves, Spring Return, T Handle Release

• K-Tool International 63198 is a 50 ton air hydraulic truck jack for lifting heavy vehicles in shops and fleet bays. It provides a 11.4 to 21.25 inch lift range, uses load limiting and bypass valves for protection, and features a spring activated self retracting ram. This is a complete unit, not a replacement part.
• Features:
  • 50 ton capacity supports heavy trucks and buses while helping maintain safety during lifting
  • 11.4 to 21.25 inch lift range covers common service heights for axles and suspension work
  • Load limiting and bypass valves help prevent overload and over extension of the ram
  • Spring activated self retracting ram speeds resets between lifts to improve workflow

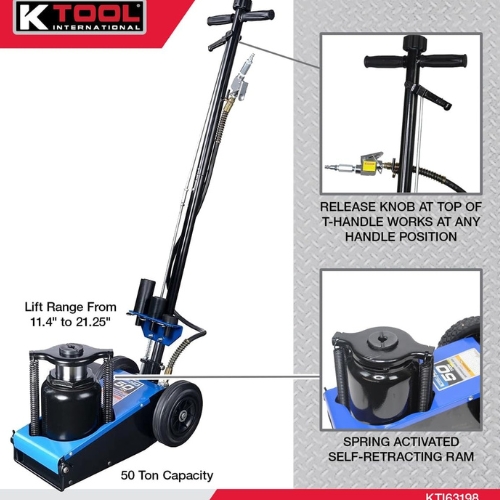

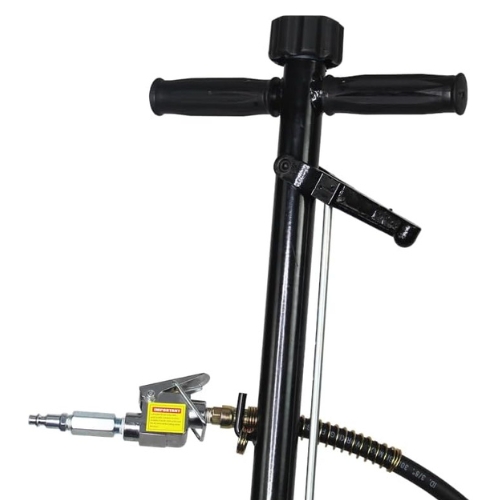

  • Release knob at the top of the T handle works at any handle position for precise lowering control
  • Narrow width design fits between tandem wheels to reach axle lift points efficiently
• Specifications:
  • Manufacturer: K-Tool International
  • Part Number: 63198
  • Manufacturer Part Number: KTI63198
  • Capacity: 50 ton (100,000 lb)
  • Lift Range: 11.4 to 21.25 inches
  • Mechanism: air operated hydraulic jack with spring return
  • Controls: release knob at top of T handle
  • Design Attributes: narrow width to fit between tandem wheels; load limiting and bypass valves
  • System Compatibility / Application: lifting heavy trucks, trailers, and buses in service bays; standalone product, not a replacement part
• The 50 Ton Air Hydraulic Truck Jack can also be referred to as pneumatic hydraulic truck jack, air operated truck jack, axle jack 50 ton, heavy duty service jack, and air hydraulic floor jack.

K-Tool International builds professional lifting equipment for commercial vehicle service. Model 63198 combines a wide lift range, protective load limiting and bypass valves, and a spring return ram to deliver reliable lifting performance in demanding shop environments.

Q: What is the minimum and maximum lift height?
A: The lift range is 11.4 to 21.25 inches, suitable for most heavy vehicle axle and suspension service.

Q: How does the jack protect against overload or over extension?
A: Integrated load limiting and bypass valves help prevent use beyond rated capacity and over extension of the ram.

Q: Can I control lowering from any handle position?
A: Yes. The release knob is positioned at the top of the T handle and functions at any handle position for controlled lowering.
