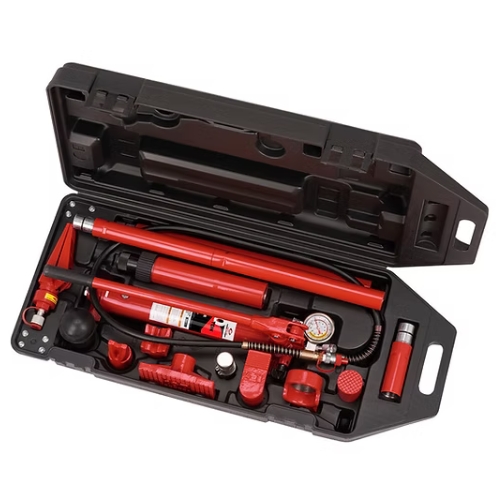

AFF 817SD Body and Frame Repair Kit, Heavy Duty Steel, 10 Ton Capacity, 17 Piece Set

AFF 817SD Body and Frame Repair Kit, Heavy Duty Steel, 10 Ton Capacity, 17 Piece Set

• The AFF 817SD Body and Frame Repair Kit is a professional grade steel hydraulic kit designed for pushing, spreading, and pressing vehicle body panels and structural components. It includes a 10 ton hydraulic ram, air bleed pump, double braided hose, spreader ram, and organized carrying case for collision and frame repair tasks.
• Features:
  • 10 ton hydraulic ram delivers strong force for heavy duty body and frame repair.
  • Auto air bleed hydraulic hand pump eliminates manual bleeding and simplifies use.
  • Chrome plated piston rod and pump core provide resistance to wear and corrosion.
  • Double braided hydraulic hose resists abrasion and supports high pressure use.
  • Spreader ram allows pushing and separating of body panels.
  • Compact carrying case provides portability and organized storage of all components.
• Includes:
  • 5 foot hydraulic hose (Model 8163)
  • 10 ton hydraulic ram (Model 8171)
  • 10 ton hydraulic hand pump (Model 8172)
  • ½ ton spreader ram (Model 8170)
  • Assorted body repair attachments and storage case
• Specifications:
  • Manufacturer: AFF (American Forge & Foundry)
  • Part Number: 817SD
  • Material: Steel
  • Capacity: 10 tons
  • Ram Stroke: 5.25 inches
  • Ram Collapsed Height: 12.68 inches
  • Ram Extended Height: 17.8 inches
  • System Compatibility/Application: Ideal for automotive body shops and collision repair centers to spread, push, press, and align body and frame assemblies
• The AFF 817SD may also be referred to as the 10 Ton Body and Frame Super Duty Repair Kit or Hydraulic Collision Repair Set Model 817SD.

The AFF 817SD is a complete 17 piece steel hydraulic repair kit that combines durability, professional strength, and portability. Designed for collision repair and structural body work, it provides reliable force and versatile attachments for demanding repair tasks.

Q: What is the stroke length of the hydraulic ram?
A: The ram provides a stroke length of approximately 5.25 inches.

Q: What is the collapsed and extended height of the ram?
A: The ram collapses to about 12.68 inches and extends to about 17.8 inches.

Q: Does the kit include a storage case?
A: Yes, the AFF 817SD includes a durable carrying case for convenient storage and transport of all 17 pieces.
