Sunex 7706 Fuel Tank Adapter for Under-Hoist Transmission Jacks, Adjustable 6-1/2 inch to 29-1/2 inch
Sunex 7706 Fuel Tank Adapter for Under-Hoist Transmission Jacks, Adjustable 6-1/2 inch to 29-1/2 inch

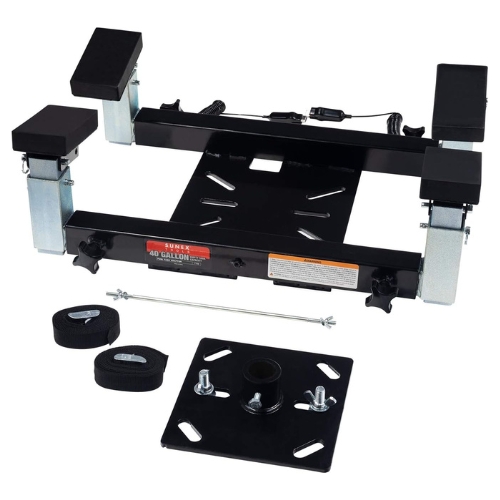

- The Sunex 7706 fuel tank adapter is made to mount on transmission jack saddles to support removal, installation and transport of emptied automotive fuel tanks, with universal adjustment to fit most tanks up to 40 gallons.
- Features:

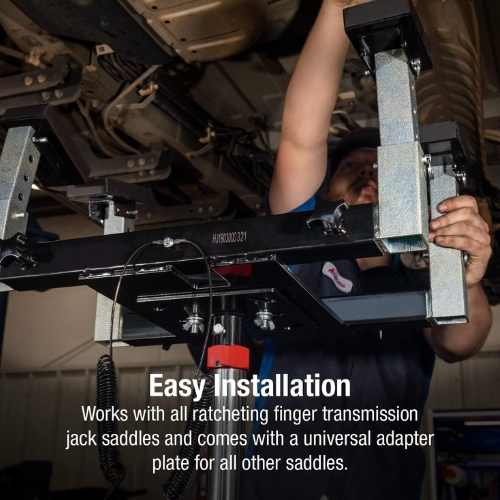

- Quick and easy installation to ratcheting finger transmission jack saddles, and includes universal adapter plate for other saddle types

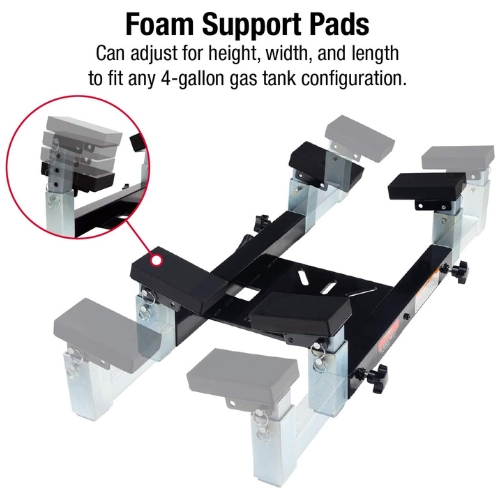

- Foam support pads adjust for height, width and length to fit tanks of various shapes

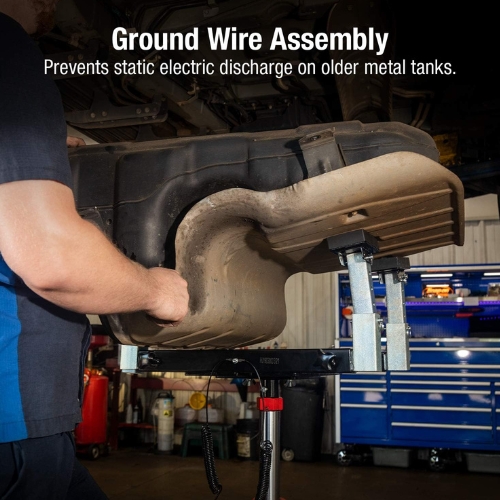

- Ground wire assembly prevents static discharge when working with metal fuel tanks
- Tilts front-to-back and side-to-side for precise alignment during tank installation/removal
- Comes with two 8-foot tie-down straps to secure the tank to the adapter
- Specifications:
- Manufacturer: Sunex Tools
- Part Number: 7706
- Height Adjustment Range: 6-1/2 inch to 29-1/2 inch
- Tank Capacity Rated: Up to 40 gallons
- Material / Finish: Adjustable steel construction, foam pads, ground wire kit
- System Compatibility / Application: Designed to be mounted on under-hoist transmission jacks to support fuel tank removal and installation in repair shops and garages
- Alternate names include Sunex Fuel Tank Adapter 7706, transmission jack fuel tank support, universal fuel tank bracket, and Sunex adjustable tank adapter.
Sunex Tools offers the 7706 as a specialized accessory to safely and efficiently handle automotive fuel tanks using your transmission jack. With adjustable support, tilt capability, and grounding, this adapter simplifies tank service work.
Q: What is the adjustable height range?
A: The adapter adjusts from 6-1/2 inch up to 29-1/2 inch to accommodate different tank positions.
Q: What tank size is it rated for?
A: It is designed to handle fuel tanks up to 40 gallons in capacity.
Q: How does it mount on a transmission jack?
A: You attach it to a ratcheting finger saddle; for other saddle styles it includes a universal adapter plate to secure properly.
