Innovative Products 9101 Light Ranger MUTT Trailer Light Tester, 7-Way Spade With 3-Way Adapter, Water Resistant, Short Circuit Protection
Innovative Products 9101 Light Ranger MUTT Trailer Light Tester, 7-Way Spade With 3-Way Adapter, Water Resistant, Short Circuit Protection

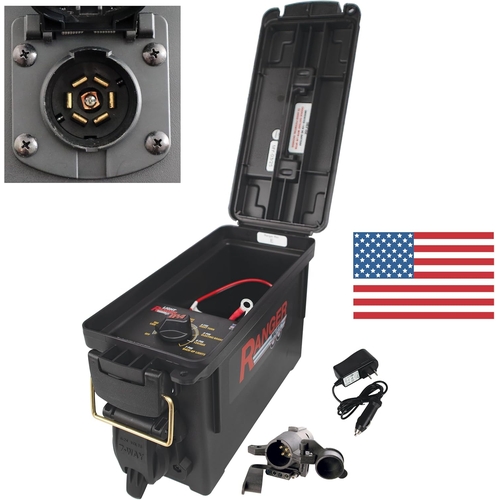

- Innovative Products 9101 Light Ranger MUTT is a portable trailer light and brake diagnostic tester that simulates a tow vehicle for fast, fuse free checks. It connects to 7 way spade trailers and includes a 3 way adapter for 6 round and 4 or 5 flat pins, with water resistant construction and built in short circuit protection.
- Features:

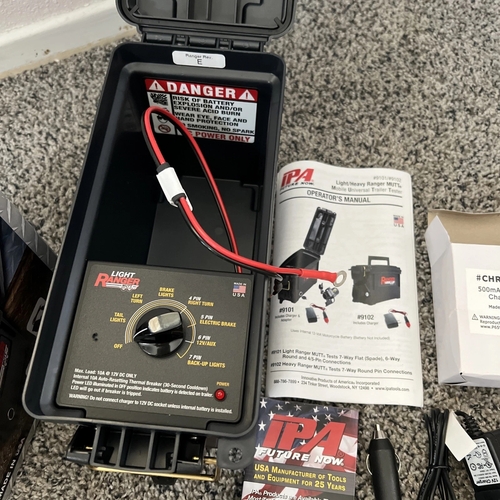

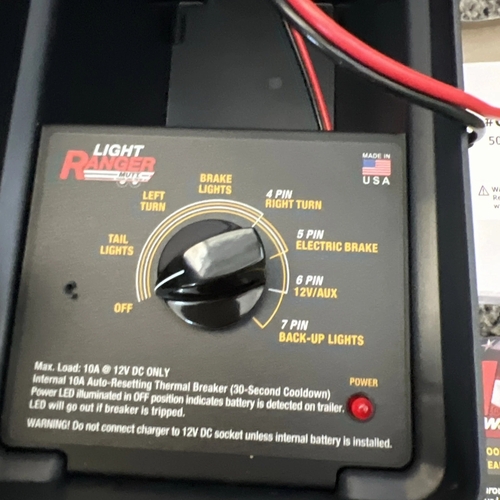

- Simulates turn signals, brake lights, and 12 volt power to diagnose trailer lighting and electric brakes without a truck, reducing troubleshooting time.
- Water resistant design with auto resetting protection helps prevent blown fuses during fault finding for improved safety.
- Standard 7 way spade interface with included adapter for 6 round and 4 or 5 flat connectors increases coverage across light duty trailers.
- Includes 500 mA charger; operates on a user supplied 12 volt Group 14 battery for mobile testing in the shop or field.
- Rugged case with clear labeling supports repeatable tests and quick pass or fail decisions.

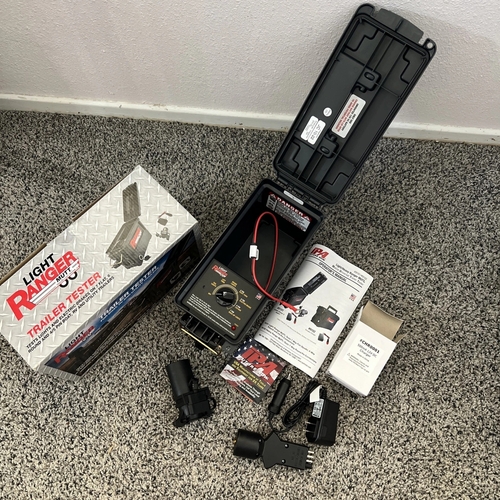

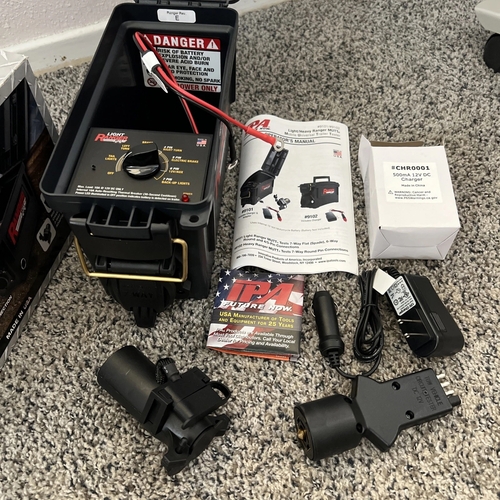

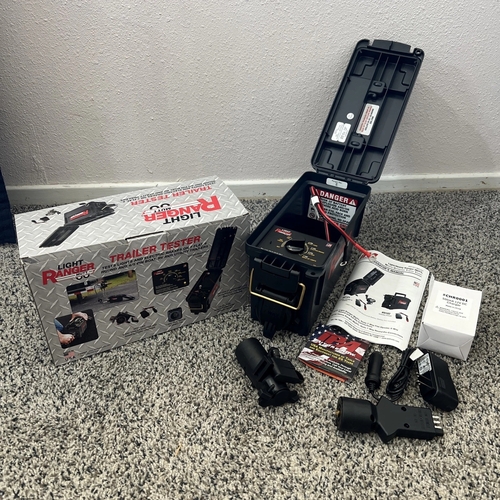

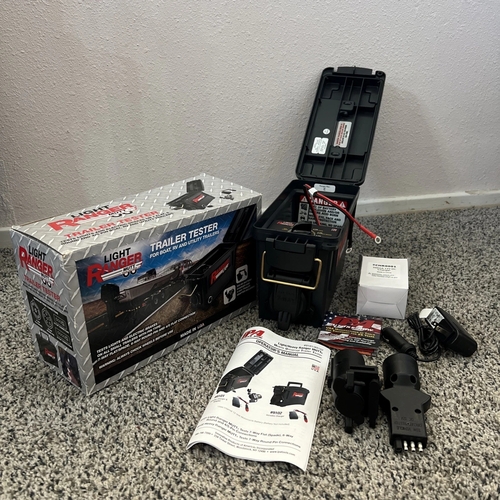

- Includes:
- 500 mA battery charger (CHR0001)
- 3 way trailer adapter for 6 round and 4 or 5 flat pins (8000)
- Specifications:
- Manufacturer: Innovative Products
- Part Number: 9101

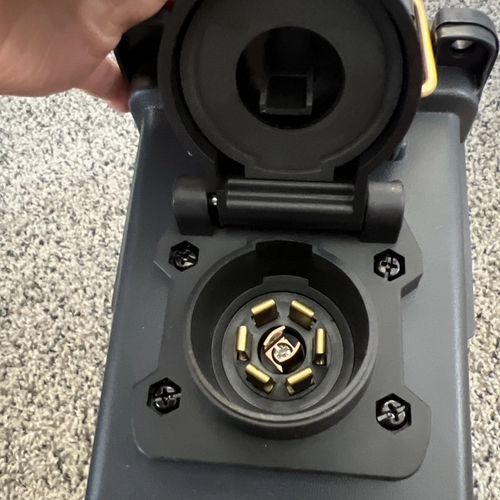

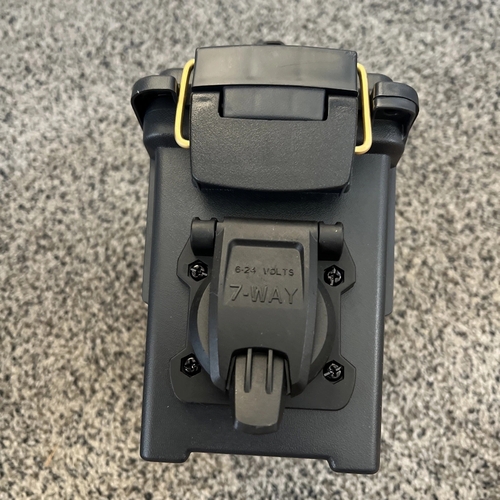

- Connection Types: 7 way spade trailer plug; adapter for 6 round and 4 or 5 flat
- Power: 12 volt battery required, Group 14 size, battery not included; 500 mA charger included
- Protection: Auto resetting short circuit protection; water resistant housing
- System Compatibility/Application: Trailer side testing of lights, electric brakes, and 12 volt circuits on light duty trailers without a tow vehicle
- The Light Ranger MUTT can also be referred to as trailer light tester, 7 way trailer tester, trailer brake tester, mobile universal trailer tester, and IPA 9101 tester.
Innovative Products designs and supplies specialty diagnostic and service tools for professional automotive and fleet technicians, including trailer electrical testers and accessories for shop and field use.
Q: What connectors can the 9101 test?
A: It plugs directly into 7 way spade trailers and, with the included adapter, tests 6 round and 4 or 5 flat pin harnesses.
Q: Is a battery included?
A: No. The unit requires a user supplied 12 volt Group 14 battery; a 500 mA charger is included for charging the installed battery.
Q: Can it help find shorts without blowing fuses?
A: Yes. The tester uses auto resetting short circuit protection so you can load the circuit, trip the protection, and continue diagnostics without replacing fuses.
