JIMS USA 1705 Exhaust Stud Drill Plate, Drill Bushing and 1/4 Inch Drill Bit, For Harley-Davidson Twin Cam 1999 Up, EVO Big Twin 1984 to 1999, XL 1986 to 2003, Buell 1994 Up Jims USA JIM1705
View Larger

JIMS USA 1705 Exhaust Stud Drill Plate, Drill Bushing and 1/4 Inch Drill Bit, For Harley-Davidson Twin Cam 1999 Up, EVO Big Twin 1984 to 1999, XL 1986 to 2003, Buell 1994 Up

Item # JIM1705
$126.56
Quantity:      On Hand: 1QTY_CHECK:1-net:-DB:1-VSTOCK:0  Sold As: each


Jims USA
More Products from Jims USA

  Add to Shopping List
  Save For Later


Overview



JIMS USA 1705 Exhaust Stud Drill Plate, Drill Bushing and 1/4 Inch Drill Bit, For Harley-Davidson Twin Cam 1999 Up, EVO Big Twin 1984 to 1999, XL 1986 to 2003, Buell 1994 Up

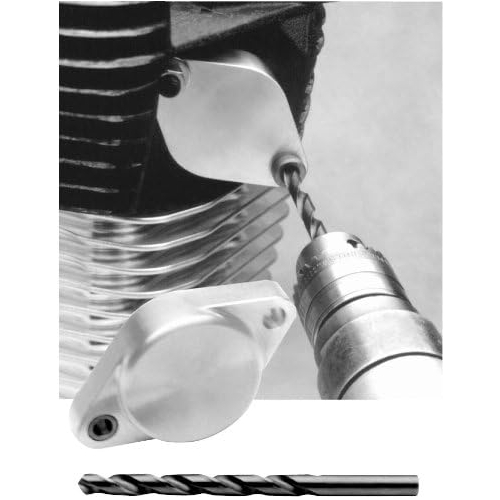

  • JIMS USA 1705 Exhaust Stud Drill Plate is a precision guide that aligns a drill to remove broken exhaust studs without pulling the head from most frames. It includes a drill bushing and a 1/4 inch drill bit and is designed for Harley-Davidson Twin Cam, EVO Big Twin, XL, and Buell applications.
  • Features:
    • Guided drilling plate with hardened bushing keeps the bit centered to drill out broken studs cleanly, reducing rework.
    • Includes a 1/4 inch drill bit sized for the operation, so technicians can start the repair immediately.
    • Works on-bike in most frames using an existing exhaust flange nut to secure the plate, saving teardown time.
    • Application specific fitment for Harley-Davidson Twin Cam, EVO Big Twin, XL Sportster, and Buell models to ensure accurate alignment.
  • Includes:
    • Drilling plate (1705-1)
    • Drill bushing (1705-2)
    • 1/4 inch drill (1705-3)
  • Specifications:
    • Manufacturer: JIMS USA
    • Part Number: 1705
    • Product Type / Function: Exhaust stud drill plate kit with guided bushing
    • Use Method: Mount to head using an exhaust flange nut; drill through the bushing with the supplied 1/4 inch bit
    • Compatible Systems / Fitment: Harley-Davidson Twin Cam 1999 up; EVO Big Twin 1984 to 1999; XL 1986 to 2003; Buell 1994 up
    • System Compatibility/Application: Removal of broken exhaust studs with on-bike drilling; follow with appropriate tap to clean threads
  • The Exhaust Stud Drill Plate can also be referred to as exhaust stud drilling jig, Harley exhaust stud removal plate, guided drill bushing plate, 1/4 inch exhaust stud drill kit, and JIMS 1705 drill plate.



JIMS USA manufactures precision service tools and performance components for American V twin motorcycles, supplying dealerships and independent shops with professional equipment for engine, chassis, and general service operations.



Q: Can this tool be used with the engine still in the frame?
A: Yes. The plate is designed to work on the bike in most frames by securing it with an exhaust flange nut.



Q: What components are included in part 1705?
A: The kit includes the drilling plate, a hardened drill bushing, and a 1/4 inch drill.



Q: Which Harley-Davidson models does it fit?
A: Twin Cam 1999 up, EVO Big Twin 1984 to 1999, XL 1986 to 2003, and Buell 1994 up.
