Lisle 69300 Master Relay Test Jump Set
- This Lisle 69300 kit is a comprehensive diagnostic assembly for automotive electrical systems, enabling technicians to test relays and live fused circuits without piercing wires and with enhanced flexibility for OEM and European-vehicle configurations.
- Features:
- Includes eight fixed jumpers designed to fit the most popular automotive relays, allowing quick bypass or activation of relay sockets.
- Includes a test-lead kit with banana-plug, alligator-clip, spade and stripped-wire leads, enabling secure connection of the jumpers to a digital multimeter for voltage or current measurement.

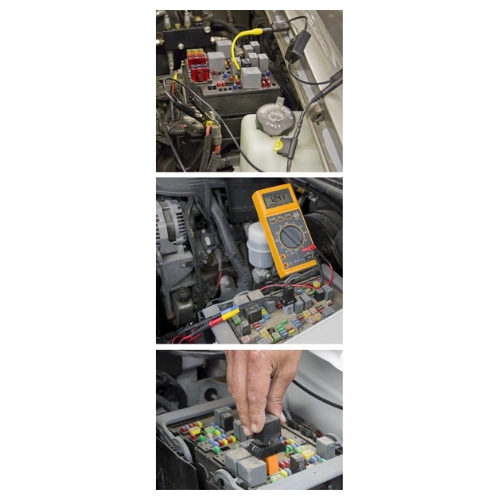

- Includes terminal leads with built-in switch, inline fuseholder and power lead options to access and monitor fuse-box or relay-box circuits in-vehicle without direct wire damage.
- Relay-puller pliers included to safely remove relays from their sockets without damaging the relay or housing-especially useful in tight OEM modules.
- Designed to test not only typical American-market relay sockets but also European-style relays (VW, BMW, etc.) beyond the eight standard jumpers, offering flexible configuration for complex circuits.

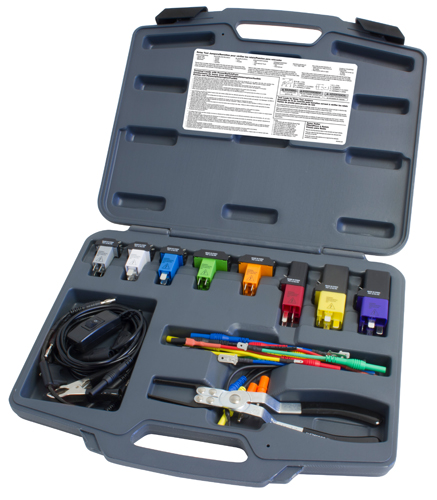

- Includes:
- Switch with 4 mm stackable banana plug (part 69260)
- 4 mm female banana to alligator clamp (part 69270)
- 2 x Red 4 mm banana to ¼" female terminal (part 69280 x2)
- 2 x Green 4 mm banana to ¼" male spade (part 69290 x2)
- 2 x Yellow 4 mm banana to 2.75 mm male spade (part 69310 x2)
- 2 x Blue 4 mm banana to 7.75 mm male spade (part 69320 x2)
- 2 x Black 4 mm banana to stripped wire end (part 69330 x2)
- 4 mm banana males with inline ATO fuse socket (part 69340)
- 2 x 39 3/8" 4 mm female to 4 mm male extensions (part 69350 x2)
- Relay test jumper wire set (part 69200) consisting of eight colored jumpers: yellow (56820), red (56830), blue (56840), green (56850), orange (60620), white (60630), purple (60640), gray (60650)
- Relay puller pliers (part 46950)
- Specifications:
- Manufacturer: Lisle Corporation
- Part Number: 69300
- Kit Type: Master relay and fused-circuit test kit
- Shipping Weight: Approximately 3.1 lbs
- Application/Compatibility: Designed for automotive electrical diagnostic use, allowing technicians to test relays and fused circuits across many vehicle makes including American and European.
- The 69300 Master Relay Test Jump Set can also be referred to as Lisle 69300 Master Relay & Fused-Circuit Test Kit, Lisle LI69300 Relay Test Jump Set, and Lisle Master Relay Diagnostic Kit 69300.
The Lisle 69300 is a professional-grade diagnostic kit engineered for shop technicians, combining relay test jumpers, fused-circuit leads, and extraction tools in one compact set to streamline electrical troubleshooting without damaging wiring or relying purely on multimeter probes.
