CTA 2775 VW TDI Timing Belt Tool Kit - 1.9L
CTA 2775 VW TDI Timing Belt Tool Kit - 1.9L
- For installing timing belts on VW TDI (ALH only) including 1999-2004 Golf, Jetta & Beetle

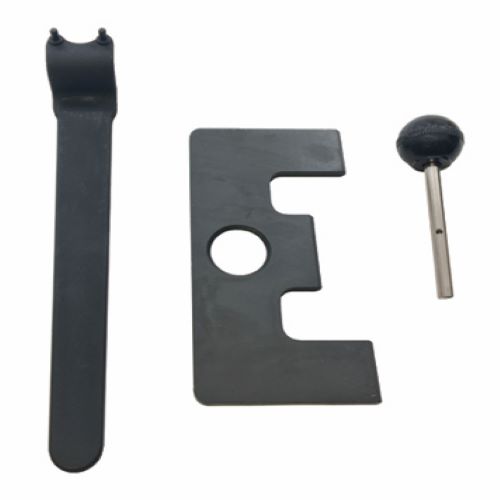

- Includes the following tools:
- 2766 - 2-Pin Tensioner Adjusting Wrench
- For camshaft spur belts (toothed belts) on idler pulleys with pin holes
- Tool rotates pulley around the off-center retaining bolt for easy tension adjustment. Also works on Passat & Corrado, plus Audi 80
- 2882 - Cam Locking Plate
- Secures the camshaft from rotating and maintaining correct timing position during R&R of camshaft drive belt
- Also works on diesel & Volvo 6 cylinder 2.4L diesel '81 - '86
- 2770 - Pump Locking Pin
- Secures Bosch diesel injection pump sprocket from rotating during R&R of camshaft drive belt.
- Also works on diesel engines 1V, 1Z, AAB, ACV, AHU, ALH, AWP, CS, CY, DE, MD, ME & MF, plus D24 engine in all pre-99 Volvo diesel, plus Penta Marine
- Vehicle Applications
Make |
Model |
Trim |
Engine |
Year |
Volkswagen |
Beetle |
TDI |
1.9L |
1999-2004 |
Volkswagen |
Golf |
TDI |
1.9L |
1999-2004 |
Volkswagen |
Jetta |
TDI |
1.9L |
1999-2004 |
