JIMS 1169 Compression Release Valve Installation Tool for Harley Davidson Twin Cam Engines 1999 and Later, 16 Piece Kit

JIMS 1169 Compression Release Valve Installation Tool for Harley Davidson Twin Cam Engines 1999 and Later, 16 Piece Kit

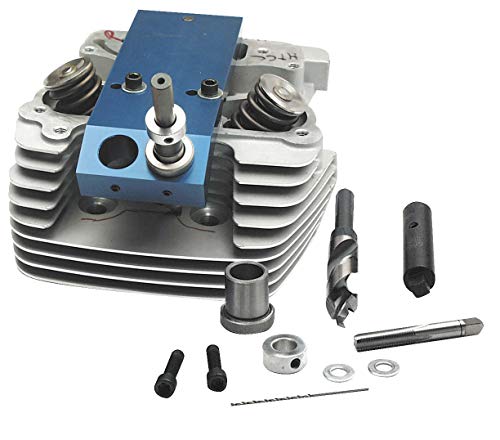

• The JIMS 1169 Compression Release Valve Installation Tool is a 16 piece machining kit designed to prepare Harley Davidson Twin Cam Alpha and Beta cylinder heads for installation of JIMS compression release valves No. 727K. This tool set enables accurate drilling, spot facing, tapping, and valve installation on front or rear heads.
• Features:
  • Designed for Twin Cam Alpha and Beta engines 1999 and later, ensuring proper machining for compression release valve installation.
  • Complete drill and tap fixture system supports accurate alignment for drilling, spot facing, and tapping cylinder heads.
  • Compatible with JIMS compression release valves No. 727K for proper fit and function.
  • Can be used on front or rear cylinder heads with or without valves installed for flexible service application.
• Includes:
  • Thread Tap Tool
  • Drill Tap Fixture
  • Stepped Drill
  • Tap Extension
  • Drill Bit
  • Set Screw (3)
  • Stop Collar
  • Flat Washer (2)
  • Mounting Screw (2)
  • Drill Bushing
  • Tap Magic
  • Instruction Sheet
• Specifications:
  • Manufacturer: JIMS
  • Part Number: 1169
  • MPN: 1169
  • Product Type: Compression Release Valve Installation Tool Kit
  • Number of Pieces: 16
  • Compatible Systems: Harley Davidson Twin Cam Alpha and Beta engines 1999 and later
  • System Compatibility or Application: Designed for machining Twin Cam cylinder heads to install JIMS compression release valves No. 727K.
• The Compression Release Valve Installation Tool can also be referred to as Twin Cam compression release machining tool, Harley Twin Cam head drilling fixture kit, JIMS 1169 valve installation kit, motorcycle cylinder head tap and drill tool, and Harley compression release install tool.

JIMS is a manufacturer of precision tools and performance parts for Harley Davidson motorcycles, specializing in engine service tools, drivetrain components, and specialty equipment designed for professional technicians and motorcycle enthusiasts.

Q: What engines is the JIMS 1169 tool compatible with?
A: This tool is designed for use on Harley Davidson Twin Cam Alpha and Beta engines from 1999 and later.

Q: What valves is this tool designed to install?
A: The JIMS 1169 is specifically designed to prepare cylinder heads for installation of JIMS compression release valves No. 727K.

Q: Can this tool be used on both front and rear cylinder heads?
A: Yes, the kit can be installed on either the front or rear cylinder head and can be used with or without the valves installed during the machining process.
