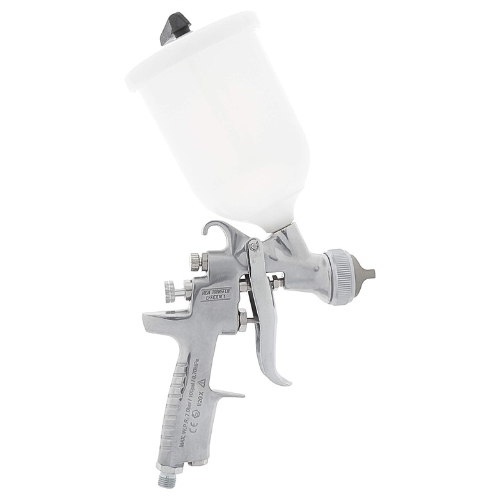

Anest Iwata 9230 AirGunsa HV2 Gravity Feed Spray Gun, 1.3 mm Nozzle
- The Anest Iwata 9230 AirGunsa HV2 is a center-post, gravity feed HVLP spray gun optimized for sealers and materials requiring fine atomization. It features a 1.3 mm fluid tip, ~600 mL cup capacity, polished body, and produces a controlled ~11 inch pattern at ~28 psi.
- Features:
- 1.3 mm fluid nozzle for sealer and primer work
- Flat, thin spray pattern with fine atomization for smooth application
- All wetted parts in stainless steel for corrosion resistance and ease of maintenance
- Compatible with 3M PPS cup systems and the provided 600 mL gravity cup
- Specifications:
- Manufacturer: Anest Iwata
- Part / Model: 9230
- Nozzle / Fluid Tip: 1.3 mm
- Cup Capacity: 600 mL
- Recommended Gun Inlet Pressure: 28 psi (2.0 bar)
- Air Consumption: 12.0 CFM (? 340 NL/min)
- Pattern Width: 11 inch (280 mm)
- Fluid Output: 150 mL/min
- Air Connection: G 1/4 inch male
- Fluid Connection: G 1/4 inch female
- System Compatibility: Designed for HVLP sealing, primer, and filler applications in automotive refinishing with small to moderate compressors
- Quantity: Single spray gun with 600 mL gravity cup
- The 9230 HV2 model is also called AirGunsa 9230, AZ3HV2-13G 1.3 mm gun, Iwata HVLP sealer gun, center-post gravity spray gun, and Iwata 9230 Sealer Gun.
Anest Iwata is a global manufacturer of professional spray equipment and air compressor systems, renowned for its precision engineering, high performance, and commitment to delivering superior finishing solutions for automotive, industrial, and fine art applications.
Q: What coatings is the 9230 suited to apply?
A: It is ideal for sealers, primers, and fillers, particularly where fine atomization and lower overspray are required.
Q: What air supply is needed?
A: Expect 12.0 CFM at 28 psi inlet pressure to maintain consistent atomization and pattern.
Q: Can I convert to use larger nozzles?
A: Yes, The 9230 accepts compatible AirGunsa tip/nozzle sets (e.g. 1.5 mm, 1.8 mm, 2.0 mm) using the same HV2 body, giving flexibility based on coating needs.
