Milton 693-12CG Dual Head Straight Foot Chuck, 12 inch Length, 1/4 inch Female NPT, Cushioned Grip
Milton 693-12CG Dual Head Straight Foot Chuck, 12 inch Length, 1/4 inch Female NPT, Cushioned Grip

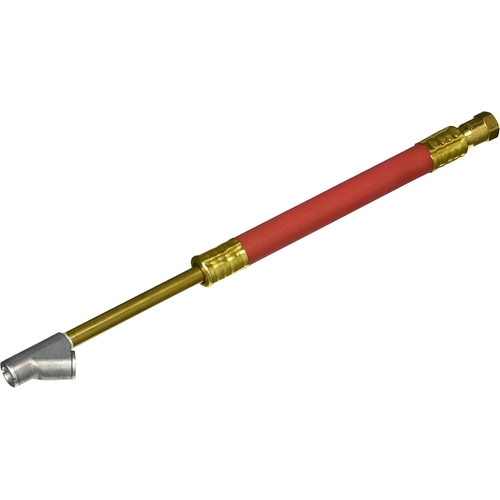

- The Milton 693-12CG Dual Head Straight Foot Chuck is designed for inflating inner dual tires on trucks and heavy-duty vehicles. It features a 12 inch length for extended reach, a 1/4 inch female NPT inlet, and a cushioned grip for comfort and control. Rated up to 150 psi for reliable performance.
- Features:
- 12 inch overall length provides extended reach for inner dual tire access.
- Dual head straight foot design allows inflation from either side for flexibility.
- 1/4 inch female NPT connection fits standard air hose couplings.
- Cushioned grip handle enhances comfort and reduces slipping during use.
- Rated for up to 150 psi, meeting standard tire service requirements.
- Specifications:
- Manufacturer: Milton
- Part Number: 693-12CG
- Product Type: Dual head straight foot air chuck
- Overall Length: 12 inch
- Connection Type: 1/4 inch female NPT
- Grip Style: Cushioned
- Maximum Operating Pressure: 150 psi
- System Compatibility / Application: Designed for inner dual tire inflation on trucks and heavy vehicles
- Also referred to as Milton 693-12CG air chuck, dual head straight foot chuck, truck dual tire inflator chuck, extended reach air chuck, and cushioned grip dual chuck.
Milton manufactures the 693-12CG Dual Head Straight Foot Chuck, a durable inflator accessory with cushioned grip and extended reach for efficient dual tire inflation in heavy-duty applications.
Q: What type of connection does this chuck have?
A: It has a 1/4 inch female NPT inlet that connects to standard air hose fittings.
Q: What is the maximum operating pressure?
A: The chuck is rated for up to 150 psi, suitable for most tire inflation tasks.
Q: Why is it called a dual head straight foot chuck?
A: Because it features two opposing straight foot heads, enabling access to inner dual tire valves from either side.
