TMR JK026 Air Operated Tire Spreader, 5 Stage Adjustment, Adjustable Light, Foot Operated Valve, 0.6 MPa Rated

TMR JK026 Air Operated Tire Spreader, 5 Stage Adjustment, Adjustable Light, Foot Operated Valve, 0.6 MPa Rated

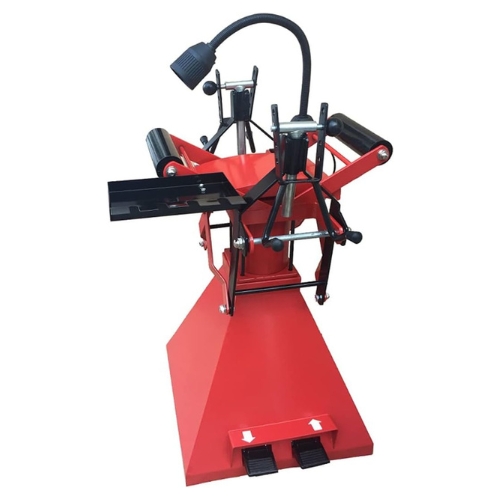

• TMR JK026 Air Operated Tire Spreader is a pneumatic service stand that spreads tire beads and positions casings for inspection and repair. It features five stage adjustment, an adjustable work light, and a foot operated control valve. This is a shop machine, not a vehicle replacement part.
• Features:
  • Five stage spread adjustment with maximum enlargement of 350 mm, helping expose the inner liner for accurate repairs.
  • Foot operated control valve keeps both hands free for safe, precise positioning during patching and inspection.
  • Adjustable work light improves visibility inside the casing to identify injuries and verify patch placement.
  • 1/4 NPT quick nipple simplifies shop air hookup for fast setup and mobility.
  • Double cups purifying device and regulator help condition air supply for consistent operation.
  • Attached tool pan keeps buffers, rasps, and patches organized at the point of use.
• Specifications:
  • Manufacturer: TMR
  • Part Number: JK026
  • Product Type / Function: Air operated tire spreader for inspection and repair
  • Spread Range: Adjustable in 5 stages; maximum enlargement 350 mm (13.8 inch)
  • Air Supply: Rated working pressure 0.6 MPa (about 87 psi); 1/4 NPT quick nipple
  • Electrical: Adjustable work light, input voltage 85 to 265 V
  • Work Aids: Attached tool pan; adjustable light; foot operated control valve; double cups purifying device
  • System Compatibility / Application: For passenger, light truck, and heavy truck tires; not a vehicle replacement part
  • Alternate Part Numbers / Cross References: TMRJK026; PBJK026-ISN
  • Packaging Type: Single unit
• The TMR JK026 can also be referred to as air operated tire spreader, pneumatic tire spreader, tire repair spreader stand, bead spreader, and tire inspection stand.

TMR designs shop equipment and tire service tools used for professional inspection and repair workflows, focusing on durable construction and technician friendly features.

Q: What air pressure is recommended for the JK026?
A: Supply shop air at about 0.6 MPa, roughly 87 psi, through the 1/4 NPT connection and regulate with the built in controls.

Q: Does it include a work light?
A: Yes. The JK026 has an adjustable work light powered from 85 to 265 V to illuminate the tire interior during inspection and repair.

Q: What is the maximum spread?
A: The spreader adjusts in five stages with a maximum enlargement of 350 mm, approximately 13.8 inch, to expose the inner liner for repair.
