ESAB 0558102240 Rebel EMP 215ic Multi-Process Welder Package, Dual-Voltage 120/230 V, sMIG Technology, Complete MIG-TIG-Stick Kit

ESAB 0558102240 Rebel EMP 215ic Multi-Process Welder Package, Dual-Voltage 120/230 V, sMIG Technology, Complete MIG-TIG-Stick Kit

• The ESAB 0558102240 Rebel EMP 215ic Package is a full MIG, DC TIG, and Stick welding system with dual-voltage input (120 V / 230 V) employing sMIG smart arc control. It includes power source, MIG gun, TIG torch, Stick accessories, regulator, and hose, making it suitable for light fabrication, maintenance, and industrial shop applications.
• Features:
  • Dual-voltage input (120 V and 208/230 V, 50/60 Hz) provides versatility across job sites.
  • sMIG (smart MIG) technology adapts to the user’s technique, offering stable arc control and ease of use for beginners and professionals.
  • Comprehensive accessory package includes MIG gun, TIG torch, electrode holder, ground clamp, regulator with hose, sample consumables, and adapter plugs.
  • Heavy-duty roll-cage chassis with IP23S protection rating ensures durability in demanding environments.

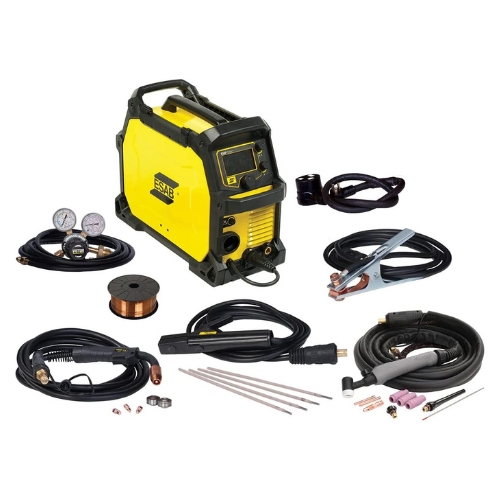

• Includes:

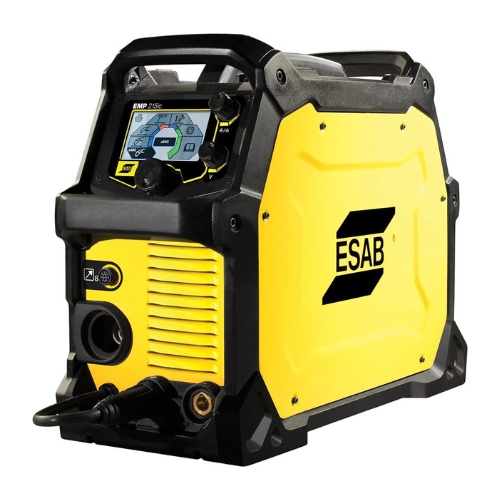

  • Rebel EMP 215ic power source
  • Tweco Fusion 180 MIG gun with 10 ft cable
  • 17V TIG torch with accessory kit and 12.5 ft cable
  • Tweco 200 A electrode holder with 13 ft cable
  • Ground clamp with leads
  • Victor Ar/CO? flow-gauge regulator with 12.5 ft hose
  • Spare MIG gun parts kit (drive rolls, contact tips)
  • Sample wire spool (.030 in / 0.8 mm) and general-purpose electrodes
  • 120 V and 230 V adapter plugs
  • Operator’s manual
• Specifications:
  • Manufacturer: ESAB
  • Part Number: 0558102240
  • Primary Voltage: 120 V and 208/230 V, single phase
  • Supply Voltage Range: 95-270 V
  • MIG (GMAW) Output: 130 A / 20.5 V at 120 V @ 20 % Duty Cycle; 205 A / 24.3 V at 230 V @ 25 % Duty Cycle
  • Stick (SMAW) Output: 90 A / 23.6 V at 120 V @ 40 % Duty Cycle; 180 A / 27.2 V at 230 V @ 25 % Duty Cycle
  • TIG (GTAW) Output: 130 A / 15.2 V at 120 V @ 40 % Duty Cycle; 180 A / 17.2 V at 230 V @ 30 % Duty Cycle
  • Current Range: 5-150 A (120 V); 5-240 A (230 V)
  • Wire Spool & Diameter Range: .023-.035 inch (0.6-0.9 mm) standard; extended .023-.045 inch (0.6-1.2 mm); accepts 4 inch and 8 inch spools
  • Open Circuit Voltage: 90 V DC nominal
  • Protection Class: IP23S
  • Dimensions: 23 x 9 x 16 in. (584 x 229 x 406 mm)
  • System Compatibility / Application: Multi-process welding (MIG, Flux-Cored, Stick, DC TIG) for mild steel and stainless steel; suitable for fabrication, maintenance, repair, and shop environments
• The ESAB Rebel EMP 215ic Package can also be referred to as Rebel EMP 215ic multiprocess welder, ESAB 215ic MIG TIG Stick package, Rebel EMP 215 dual-voltage welder, ESAB sMIG EMP215ic complete outfit

The ESAB Rebel EMP 215ic (0558102240) multiprocess package provides MIG, Stick, and DC TIG welding in one compact unit. Featuring dual-voltage capability, sMIG adaptive technology, and a rugged steel roll cage, it delivers reliability and portability for professional welding jobs.

Q: Can this welder perform TIG on aluminum?
A: No. The Rebel EMP 215ic supports DC TIG only, so it cannot TIG weld aluminum.

Q: What input power does this welder support?
A: It operates on 120 V or 208/230 V single-phase power, with a supply range of 95-270 V for flexible use in shop or field environments.

Q: What accessories are included with the package?
A: The package includes MIG gun, TIG torch, electrode holder, ground clamp, flow-gauge regulator with hose, sample wire, electrodes, adapter plugs, and consumables.
