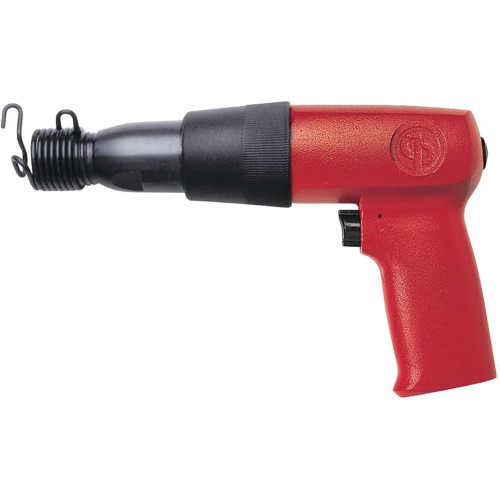

Chicago Pneumatic CP7110 Shock Reduced Air Hammer Kit Model "P"

Chicago Pneumatic CP7110 Shock Reduced Air Hammer Kit Model "P"

• Heavy-duty CP7110K Shock Reduced Air Hammer Model "P"
• Air hammer kit comes in a packed case that includes a heavy-duty pistol grip hammer, a quick-change retainer, spring retainer and 4 chisels. Air-powered tool measures 13.5 x 9.1 x 2.8 in.
• Features
  • Heavy-duty pistol grip hammer
  • Internal muffler minimizes exhaust sound
  • Unique vibration damping
  • Teasing trigger for slow start-up
• Benefits
  • Maximize operator comfort and control
  • Smooth operation
  • Low vibrations to maximize productivity
• Specifications
  • Model: CP7110
  • Part number: 8941071101
  • Actual air consumption: 413 l/mn (14.6 cfm)
  • Air inlet thread size: 1/4"
  • Average air consumption: 106 l/mn (3.5 cfm)
  • Blows per minute: 3200
  • Bore: 19 mm (3/4 ")
  • Chisel rivet set shank: 10.2 mm  (0.401")
  • Cold rivet capacity: 6.4 mm (1/4")
  • Cold rivet capacity (steel): 4.8 mm (3/16")
  • Length: 230 mm (9")
  • Min. hose size: 10 mm (3/8")
  • Net weight: 1.7 kg (3.7 lbs.)
  • Power (Joules): 7.2 joule
  • Shank: Round
  • Sound DBA pressure: 98.3 db(A)
  • Sound Power: 109 db(A)
  • Stroke: 67 mm (2.63")
  • Vibration: 6 m/s²
  • Vibration ISO: ISO-28927-9
  • Vibration uncertainty (K): 2.9 m/s²
