Home » Body Shop Equipment » Air Tools » Impact Wrenches


Chicago Pneumatic CP749K Impact Wrench Kit, 610 ft. lbs., with Socket Set  CP749K
View Larger

Chicago Pneumatic CP749K Impact Wrench Kit, 610 ft. lbs., with Socket Set

Item # CP749K
$322.88

Quantity:      On Hand: 4QTY_CHECK:4-net:0-DB:4-VSTOCK:0
Sold As: each



  Add to Shopping List
  Save For Later


Overview

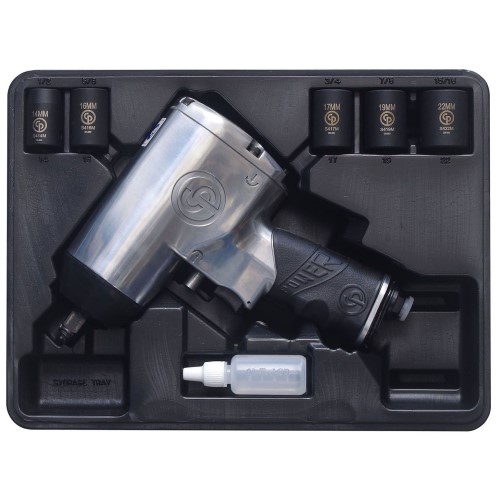

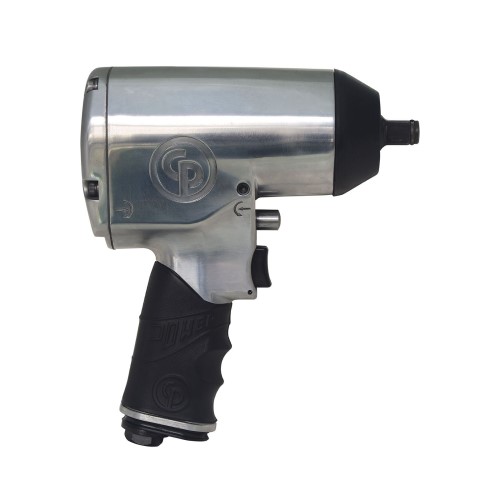

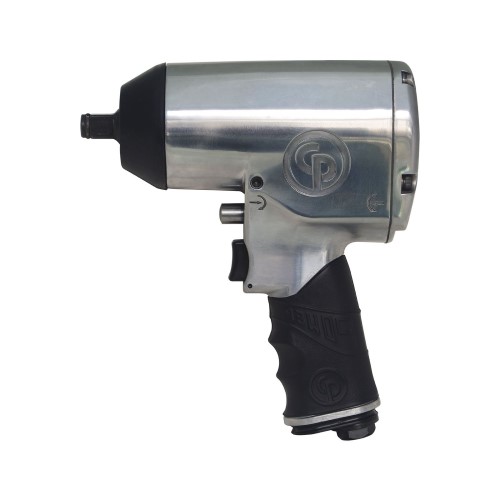

Chicago Pneumatic CP749K Impact Wrench Kit, 610 ft. lbs., with Socket Set

  • The Chicago Pneumatic CP749K Impact Wrench Kit includes a pneumatic impact wrench that has a maximum torque of 610 ft-lbs and a 1/2 inch chuck/drive. It has a patented clutch that provides smooth operation and extreme durability. The wrench also has a one-hand push button forward/reverse power regulator and a compact design with a comfortable contoured handle.
  • Features
    • Powerful and resistant motor delivering high torque
    • Withstands rough use with operator comfort
    • Ideal for general maintenance and repairs
    • Better Access to One-handed Reverse Button
  • Description
    • Impact Wrench Kit
    • Set Contents: (1) 1/2 Inch Impact Wrench, (5) 1/2 Inch, (1) 5/8 Inch, (1) 3/4 Inch, (1) 7/8 Inch, (1) 15/16 Inch SAE Sockets, (1) Oil Bottle
    • Weight: 5.5 Pounds
    • Overall Length: 7 Inch
    • Actual Air Consumption: 22 CFM
    • Air Inlet Thread Size: 1/4 Inch
    • Blow Rating: 1320 per Minute
    • Clutch Type: Double Dog-Oil Bath
    • Speed Rating: 6400 RPM
    • Handle Type: Pistol
    • Maximum Torque: 610 Foot Pound
    • Hose Size: 3/8 Inch
    • Socket Retainer: Friction Ring
    • Sound Power: 107 Decibel
    • Sound Pressure: 96 Decibel
    • Square Drive Size: 1/2 Inch
    • Vibration Rating: 6.2 Meter per Square Second
    • Vibration Uncertainty: (K) 2 Meter per Square Second
    • Working Torque Range: 50 to 450 Foot Pound
    • Includes: (1) Impact Wrench CP749, (5) Sae Sockets, (1) Oil Bottle
    • Approval: ISO 11148-6:2013, ISO-28927-2
  • Specification
    • Order Part Number: CP749K
    • Item Description: Impact Wrench Kit, 610 ft. lbs., with Socket Set
    • MANUFACTURER: Chicago Pneumatic
    • MANUFACTURER PART NUMBER: T025193
    • Harmonization Code: 84671154
    • Default Selling Unit: EA

Documents


Pdf ChicagoPneumatic_00001_102_CATALOG
Pdf ChicagoPneumatic_00024_INSTRUCTIONS
