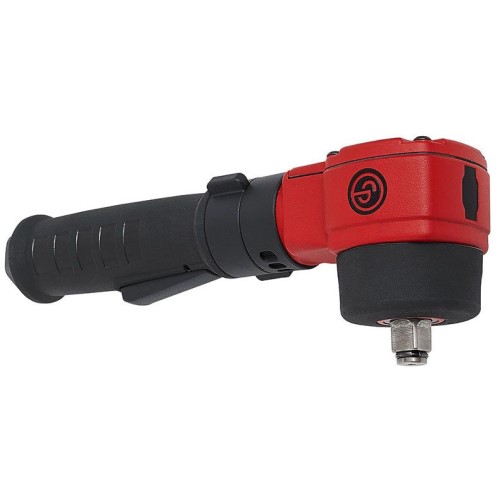

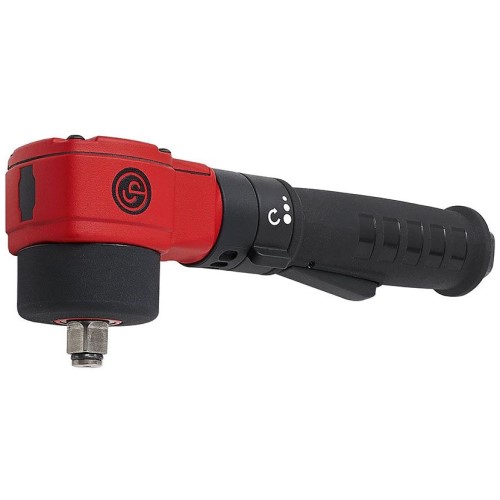

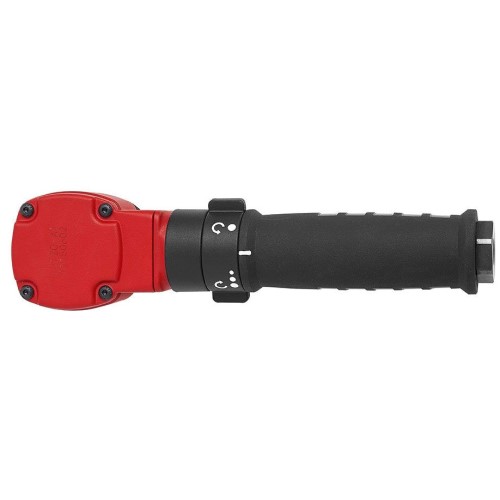

Chicago Pneumatic CP7737 1/2" Right Angle Air Impact Wrench, Pistol Handle
Chicago Pneumatic CP7737 1/2" Right Angle Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 221 ft. lbs. / 300 Nm, 9000 RPM, Single Hammer
- The new Chicago Pneumatic CP7737 angle impact wrench is the best in class in terms of compact design, low weight, high power and durability, and expected to set new high levels of performance. The user-friendly angle wrench has a revolutionary design compared with traditional angle impacts, and delivers maximum torque in confined areas found in engine compartments and under the vehicle.
- Features
- Jumbo hammer mechanism
- Steel motor
- Composite cover
- Direct drive transmission mechanism
- Over molded composite and ergonomic handle to fit perfectly in hand
- Full teasing trigger
- Single handed forward reverse operation
- 3 positions in forward and 1 in reverse
- Socket retainer ring
- Benefits
- High durability
- Compact
- Powerful
- Comfort
- Great control
- Easy operation
- Single handed forward reverse operation
- 3 positions in forward and 1 in reverse
- Specifications
- Model: CP7737
- Part number: 8941077370
- Actual air consumption: 7.5 l/s (16 cfm_
- Air inlet thread size: 1/4 "
- Average air consumption: 1.9 l/s (4 cfm)
- Blows per minute: 1600
- Box dimensions: 292*100*67 mm
- Clutch type: Jumbo
- European Standards: EN ISO 11148-6:2013
- Free speed: 9000 rpm
- Free speed air consumption: 11.73 l/s
- Handle type: Pistol
- Length: 240 mm (9.4 ")
- Maximum Torque (reverse): 300 Nm (220 ft.lbs.)
- Min. hose size: 10 mm (3/8 ")
- Net weight: 1.13 kg (2 1/2 lb.)
- Side to center: 30 mm (1.18 ")
- Socket retainer: Friction ring
- Sound Power: 104 db(A)
- Sound pressure: 93 db(A)
- Square drive: 1/2 "
- Vibration: 10.3 m/s²
- Vibration ISO: ISO-28927-2
- Vibration uncertainty (K): 1.3 m/s²
- Working Torque Range (fwd): 34 - 224 Nm (25 - 165 ft.lbs)
