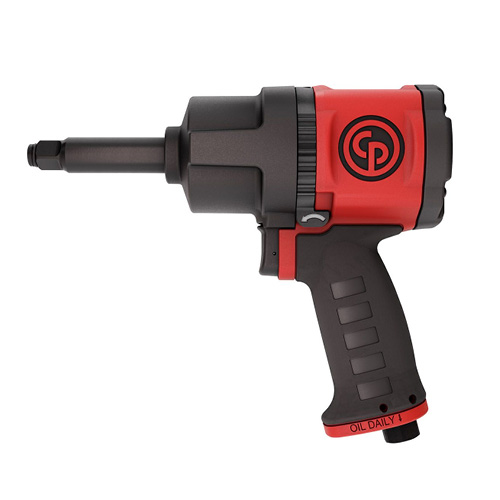

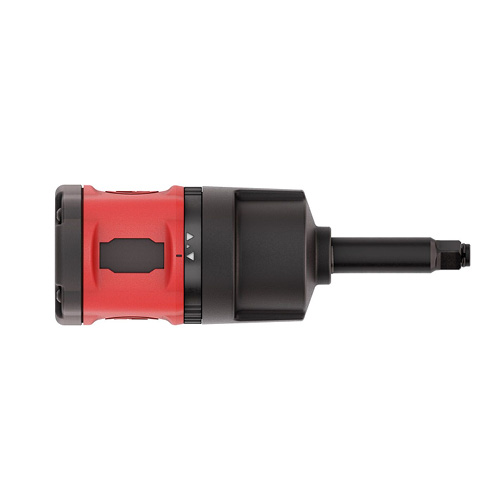

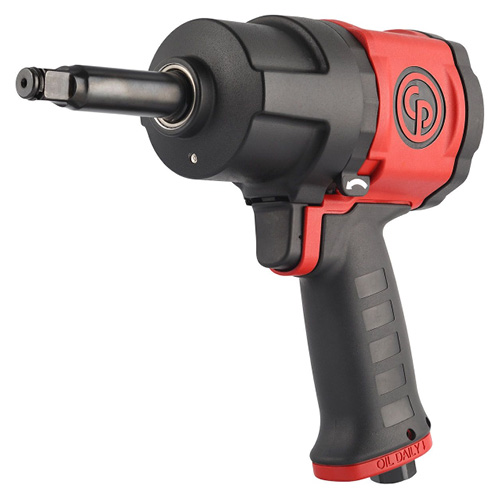

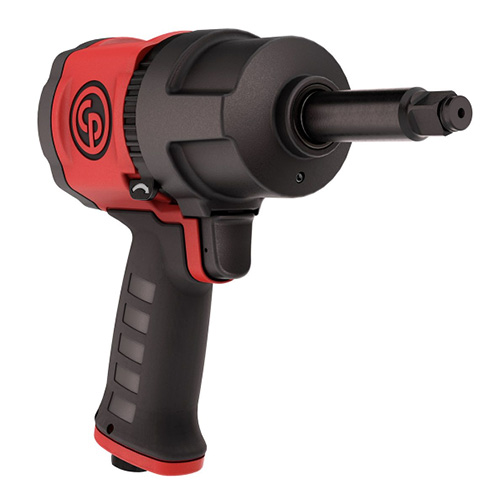

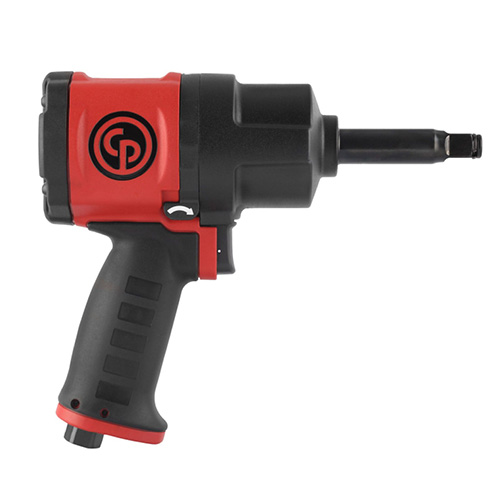

Chicago Pneumatic CP7748-2 Composite Air Impact Wrench, 1/2-Inch Drive with 2-Inch Extended Anvil, 922 Ft. Lb.
Chicago Pneumatic CP7748-2 Composite Air Impact Wrench, 1/2-Inch Drive with 2-Inch Extended Anvil, 922 Ft. Lb.
- The Chicago Pneumatic CP7748-2 is the best extended anvil tool on the market today. It is designed for high volume tire shops and fleets. This tool is extremely strong with over 1200 foot pounds of nut loosening power and weighs just 4.9 lbs. The composite housing with aluminum back cap support along with a thermo-plastic rubber injected grip makes the tool super durable and comfortable. The air motor design holds up in dirty envirnoments better than all other composite competitors. Quiet handle exhaust, Twin hammer mechanism, full teasing ergonomically developed trigger, swivel air inlet, free speed 8,200, working torque: 75-580, max torque: 922 ft lbs, super great value!
- Features
- Hard anodized end plates / Hard chromium aluminum cylinder / Twin hammer mechanism
- Name laser engraved at the back of the tool
- Curved handle with rubber material
- Resistant to most chemicals used in workshops
- Rubber grip at the back
- Does not slip when it is in operator’s hand even if it is dirty or oily
- Powerful
- Ergonomic
- Compact
- Durable
- Lightweight
- Recognizable
- Comfortable
- Specifications
- Impact Wrench
- Type: Compact, Lightweight
- Drive Size: 1/2 Inch
- Overall Size: 9.8 Inch Length
- Torque Rating: 75 to 580 Foot-Pound (Forward)/920 Foot-Pound (Reverse)
- Speed Rating: 8200 RPM
- Air Consumption: 25 CFM (Load), 6.2 CFM (Average)
- Weight: 5.1 Pounds
- Clutch Type: Twin Hammer
- Handle Type: Pistol
- Socket Retainer: Friction Ring
- Hose Size: 3/8 Inch
- Air Inlet: 1/4 Inch
- Sound Pressure: 93 Decibels
- Sound Power: 104 Decibel
- Vibration Level: 10.1 Meter per Square Second
- Vibration Uncertainty (K): 2.34 Meter per Square Second
- Blows per Minute: 1350
- Includes: 2 Inch Extended Anvil
- Applicable Standard: ISO-28927-2
