Chicago Pneumatic CP7748 Composite Air Impact Wrench, 1/2 Inch Drive (2012 Version) Chicago Pneumatic CP7748
View Larger

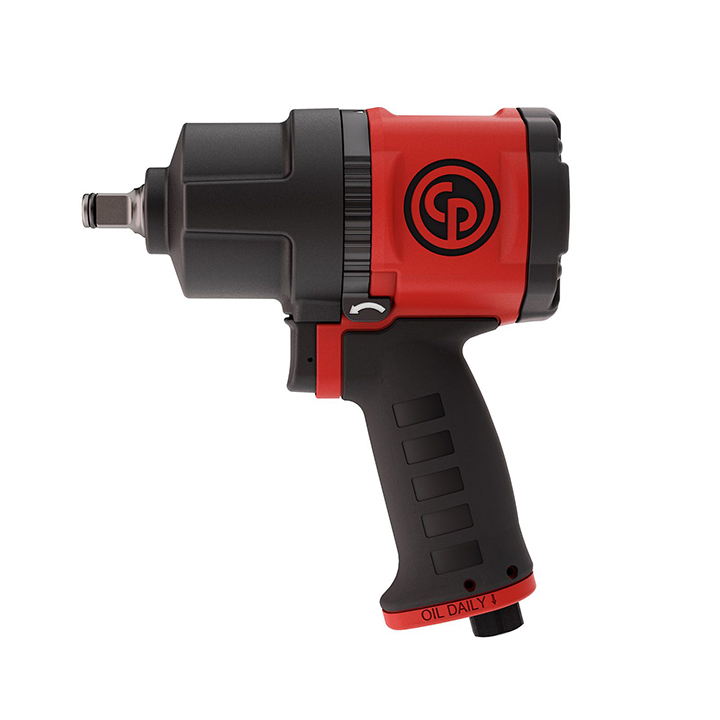

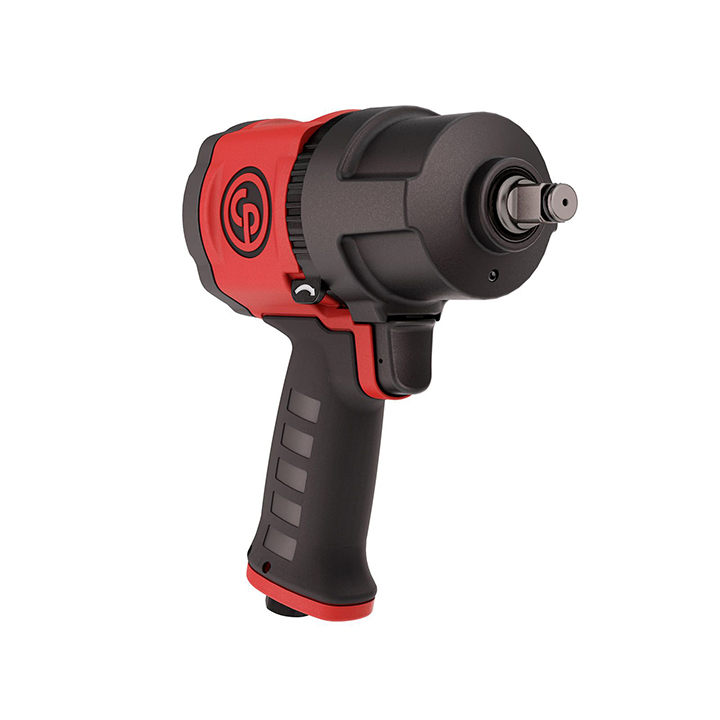

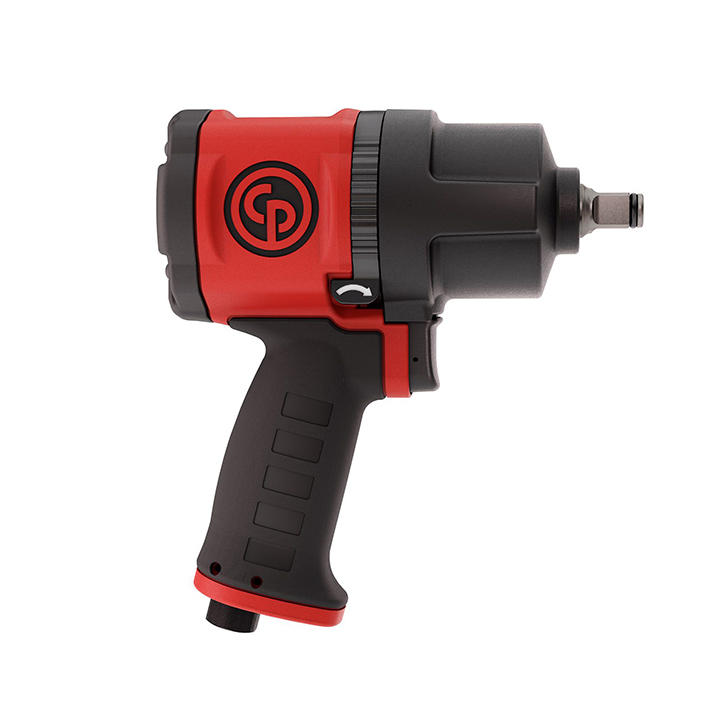

Chicago Pneumatic CP7748 Composite Air Impact Wrench, 1/2 Inch Drive (2012 Version)

Item # CP7748
$171.28

Quantity:      On Hand: 26QTY_CHECK:26-net:0-DB:26-VSTOCK:0
Sold As: each


Chicago Pneumatic
More Products from Chicago Pneumatic

  Add to Shopping List
  Save For Later


Overview



Chicago Pneumatic CP7748 Composite Air Impact Wrench, 1/2 Inch Drive (2012 Version)

  • The CP7748 1/2-Inch high torque Chicago Pneumatic  impact wrench is the strongest 1/2-inch impact on the market with over 1200 foot pounds of nut loosening power while weighing only 4.4 lbs. The composite housing with aluminum back cap along with a thermo-plastic rubber injected grip makes the tool super durable and comfortable. The air motor design holds up in dirty conditions better than all other composite competitors. Quiet handle exhaust, Twin hammer mechanism, full teasing ergonomically developed trigger, swivel air inlet, free speed 8,200, working torque: 75-580, max torque: 922 ft lbs, super great value and sure to please even the most demanding operator.
  • Features

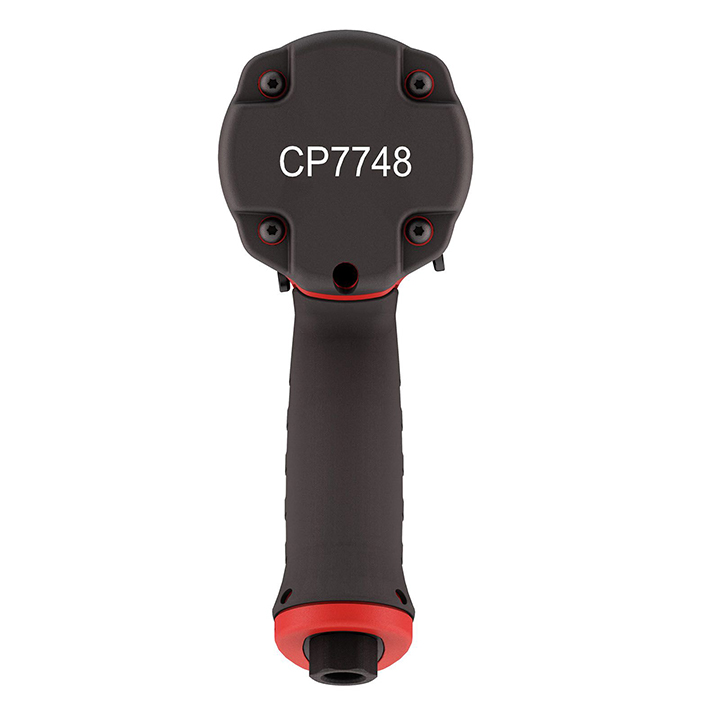

    • Name laser engraved at the back of the tool
    • Curved handle with rubber material
    • Resistant to most chemicals used in workshops
    • Rubber grip at the back
    • Does not slip when it is in operators hand even if it is dirty or oily
    • Powerful
    • Ergonomic
    • Compact
    • Durable
    • Lightweight
    • Recognizable
    • Comfortable
  • Specifications
    • Drive Size: 1/2 Inch
    • Overall Size: 7.8 Inch Length
    • Torque Rating: 75 to 580 Foot-Pound (Forward)/960 Foot-Pound (Reverse)
    • Speed Rating: 8200 rpm
    • Air Consumption: 25 CFM (Load), 6.2 CFM (Average)
    • Weight: 4.6 Pounds
    • Clutch Type: Twin Hammer
    • Handle Type: Pistol
    • Socket Retainer: Friction Ring
    • Hose Size: 3/8 Inch
    • Air Inlet: 1/4 Inch
    • Sound Pressure: 93 Decibel
    • Sound Power: 104 Decibel
    • Vibration Level: 10.1 Meter per Square Second
    • Vibration Uncertainty (K): 2.34 Meter per Square Second
    • Blows per Minute: 1350
    • Applicable Standard: ISO-28927-2
    • Also known as: Chicago Pneumatic Impact Gun

Documents


Pdf Manual
