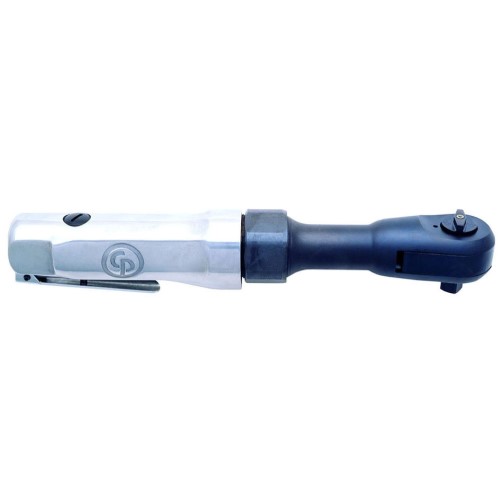

Chicago Pneumatic CP828 Air Ratchet Wrench, 3/8 Inch, Aluminum Housing, Torque (Min/Max) 9.6-51.6 ft. lbf / 13-70 Nm, 150 RPM
Chicago Pneumatic CP828 Air Ratchet Wrench, 3/8 Inch, Aluminum Housing, Torque (Min/Max) 9.6-51.6 ft. lbf / 13-70 Nm, 150 RPM
- The Chicago Pneumatic CP828 Heavy Duty 3/8-Inch Air Ratchet has been designed to dramatically increase the tool life and maximize operator comfort. New, advanced, patented tri spring anti slip head design. Floating spindle reduces wear. Dual ball design for rolling friction at each end. Hardened washers eliminate housing wear. Roll pins prevent washers from slipping. Patented ergonomic square-handle design for a positive, comfortable grip. Efficient 1/2 hp motor and triple idler planetary gear system provide up to 50 ft lb of torque to handle the tough jobs. Teasing throttle for precise speed control throughout operating range. Specifications: square drive - 3/8-Inch, standard, cfm - 4, hose size - 3/8-Inch, torque range - 10 to 50 ft lbs, ultimate torque by hand - 125 ft lbs, speed - 150 rpm.
- Features
- Features CP's patented TriSpring anti-slip head design
- Grease fitting on the reverse lever
- Ratchets for General Maintenance with excellent durability
- Great power
- Description
- Ratchet Wrench
- Item: Ratchet Wrench
- Drive Size: 3/8 Inch
- Drive Type: Square
- Overall Length: 10 Inch
- Free Speed Rating: 150 RPM
- Torque Rating: 10 Foot-Pound/50 Foot-Pound (Minimum/Maximum)
- Inlet Connection Size: 1/4 Inch NPTF
- Weight: 2.4 Pound
- Air Consumption: 3.8 CFM (Average), 15 CFM
- Hose Size: 3/8 Inch
- Sound Pressure: 97 Decibel
- Sound Power: 108 Decibel
- Vibration Level: 3.2 Meter per Square Second
- Vibration Uncertainty: 1.3 Meter per Square Second
- Applicable Standard: ISO-28927-2
- Specification
- Order Part Number: CP828
- Item Description: 3/8" Air Ratchet
- MANUFACTURER: Chicago Pneumatic
- MANUFACTURER PART NUMBER: T022708
- Harmonization Code: 84671154
- Default Selling Unit: EA
- Output drive size (in): 3/8
- Output retainer type: Ball detent
- Output drive type: Sq.
- Starting system: Lever
- Max torque reverse: 51.6 ft.lbf
- Max working torque reverse: 51.6 ft.lbf
- Min working torque reverse: 9.6 ft.lbf
- Free Speed: 150 rpm
- Weight: 2.43 lb.
- Min. hose diameter (5 m hose length): 10 mm
- Length (L): 10 in
- Main Material type: Aluminum
- Uncertainty vibration-K: 4.3 ft/s²
- Sound Power: 108 dB(A)
- Sound Pressure: 97 dB(A)
- Vibration (m/s²): 3.2
- Max dynamic air working pressure: 91 psi
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
