Home » Body Shop Equipment » Air Tools » Cut-Off Tools


Chicago Pneumatic CP9116 4 Inch (100 mm) Air Angle Cut-Off Tool, Extended Reach, 1 HP / 746 W Chicago Pneumatic CP9116
View Larger

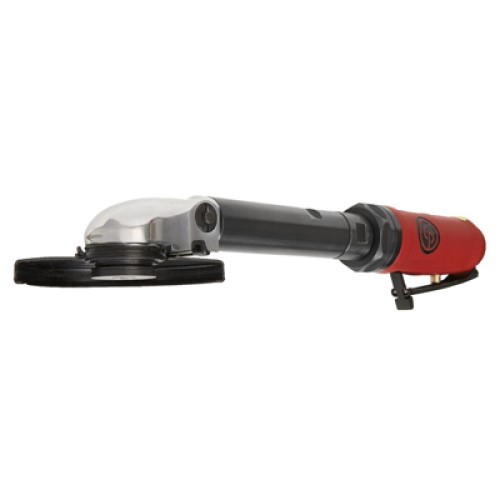

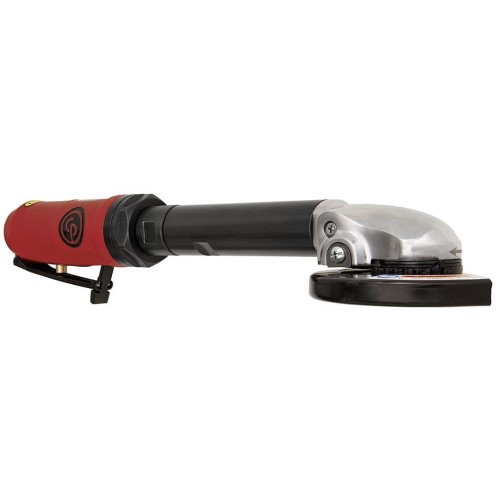

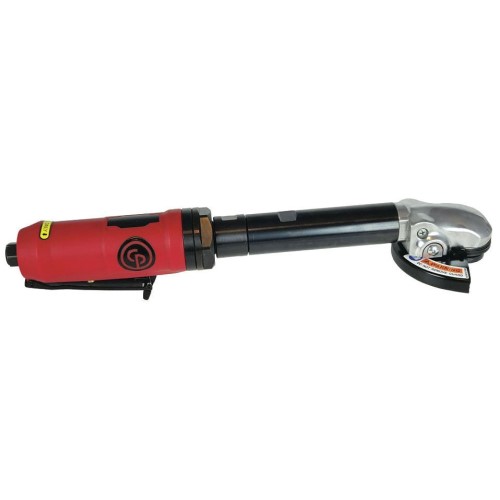

Chicago Pneumatic CP9116 4 Inch (100 mm) Air Angle Cut-Off Tool, Extended Reach, 1 HP / 746 W

Item # CP9116
$254.26

Quantity:      Out of Stock*QTY_CHECK:0-net:0-DB:0-VSTOCK:0
Sold As: each
Call for availability


Chicago Pneumatic
More Products from Chicago Pneumatic

  Add to Shopping List
  Save For Later


Overview



Chicago Pneumatic CP9116 4 Inch (100 mm) Air Angle Cut-Off Tool, Extended Reach, 1 HP / 746 W

  • The Chicago Pneumatic Cut-Off Tool is ideal for for cutting composite metal, bolts and more, especially in tight spaces (4” = 100 mm for better reach and easy access to restricted areas)
  • Composite grip to reduce cold air transmission to operators and 360° swivel air inlet for better maneuverability
  • Spindle lock system for easier wheel changing and safety throttle lever to prevent accidental start up
  • 11 position adjustable swivel guard – 126° adjustable for better operator protection & greater visibility of cutting operations
  • Cutting disc size : 4’’ / 100 mm - (1/16” X 3/8”) (1/8” X 3/8”)
  • Features
    • 4 Inch for better reach and easy access to restricted areas
    • Composite grip to reduce cold air transmission to operators
    • Spindle lock system for easier wheel changing
    • 11 position adjustable swivel guard-126 Degree adjustable for better operator protection and greater visibility of cutting operations
    • Safety throttle lever to prevent accidental start up
    • Rear exhaust
    • High quality steel for internal gears
    • Extended Length and Compact Gear Housing
    • Comfort; Easy to Use
    • Safety and Convenient
    • Powerful
    • Durable
    • Ideal for cutting composite, metal, bolts, especially in tight spaces
  • Specifications
    • Overall Size: 14.8 Inch Length
    • Inlet Connection Size: 1/4 Inch NPTF
    • Speed Rating: 14000 rpm
    • Weight: 3.7 Pounds
    • Power Rating: 1 HP
    • Air Consumption: 18 CFM (Average), 7 CFM (Actual)
    • Speed Rating: 14000 rpm
    • Hose Size: 3/8 Inch
    • Exhaust Type: Rear
    • Sound Pressure: 86 Decibel
    • Sound Power: 97 Decibel
    • Vibration Level: 3 Meter per Square Second
    • Vibration Uncertainty (K): 3 Meter per Square Second
    • Chuck/Wheel Size: 4 Inch
    • Applicable Standard: ISO-28927-8
    • UPC: 015451722340

Documents


Pdf ChicagoPneumatic_00001_90_155_CAT
Pdf ChicagoPneumatic_00126_1-3_Operator's_Manual
