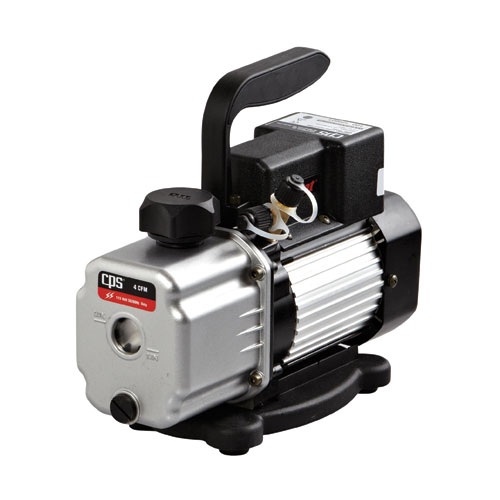

CPS Products VPC4SU Vacuum Pump 1/5 HP Single Stage
CPS Products VPC4SU Vacuum Pump 1/5 HP Single Stage
- The VPC4SU Premium Compact series of Pro-Set Vaccum Pumps incorporate the perfect balance of professional-grade performance features in an extremely portable, small-lightweight package. This innovative 4 CFM, single-stage unit is factory tested and certified to achieve an ultimate vacuum rating as low as 100 microns and weighs only 11.0 lb / 5 kg. Big performance in a small package, the VPC4SU provides fast, deep vacuums without weighing you down.
- Features
- Innovative compact and lightweight design weighs only 11 Pound
- Exceptional ultimate vacuum rating as low as 100 micron
- Advanced Air cooled motor design for operation in high ambient temperature
- Proprietary oil mist free exhaust port cap for clean, safe job environment
- Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
- Solid rubber base provides extreme shock resistance
- Sure-grip handle ergonomically designed for superior comfort and portability
- Extremely compact and portable design
- Specifications
- Overall Dimensions: 11.3 Inch x 4.5 Inch x 8 Inch
- Voltage Rating: 115 Volt 50/60 Hertz
- Motor Size: 1/4 HP, 2880/3440 rpm
- Material: Heavy Gauge Aluminum (Chasis), Hard Rubber (Base), Rubber Lined Steel (Handle)
- Temperature Rating: 32 to 125 Deg F
- Oil Capacity: 10 oz; Overload Protection Motor Thermally Protected
- Control System: Type On-Off Switch
- Ultimate Vacuum: 100 Micron
- Free Air Displacement: 4 CFM at 60 Hertz, 96 Liter per Minute at 50 Hertz
- Intake Fitting: 1/4 Inch SAE, 1/2 Inch ACME
