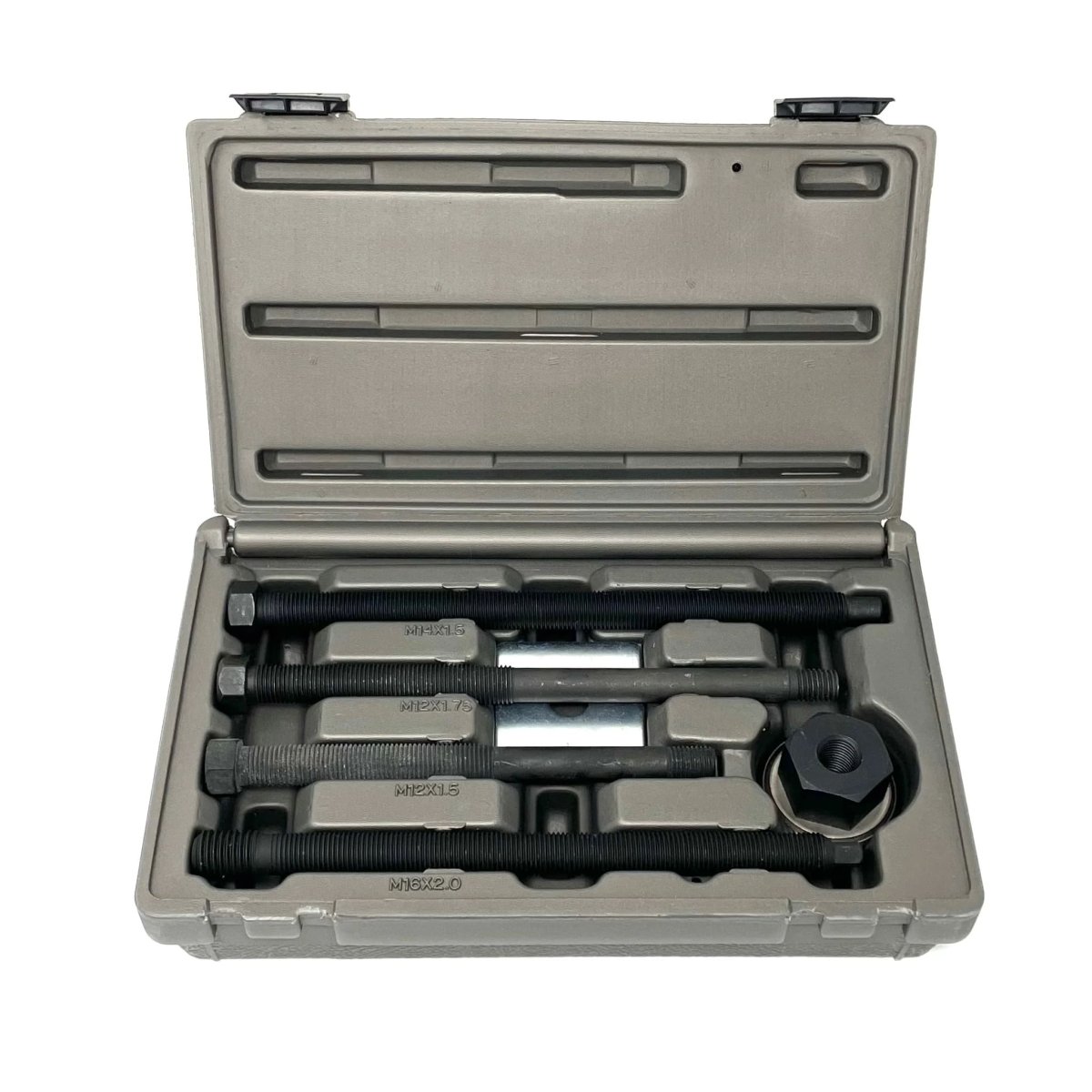

CTA 2249 Long Reach Harmonic Balancer Pulley Installer

CTA 2249 Long Reach Harmonic Balancer Pulley Installer

• Used to install Harmonic Balancers on V8s and V6s on '04 - current Ford, '08 - current GM, & '06-current Chrysler/Dodge
• Reduces risk of stripping threads inside the crank or breaking crank bolts

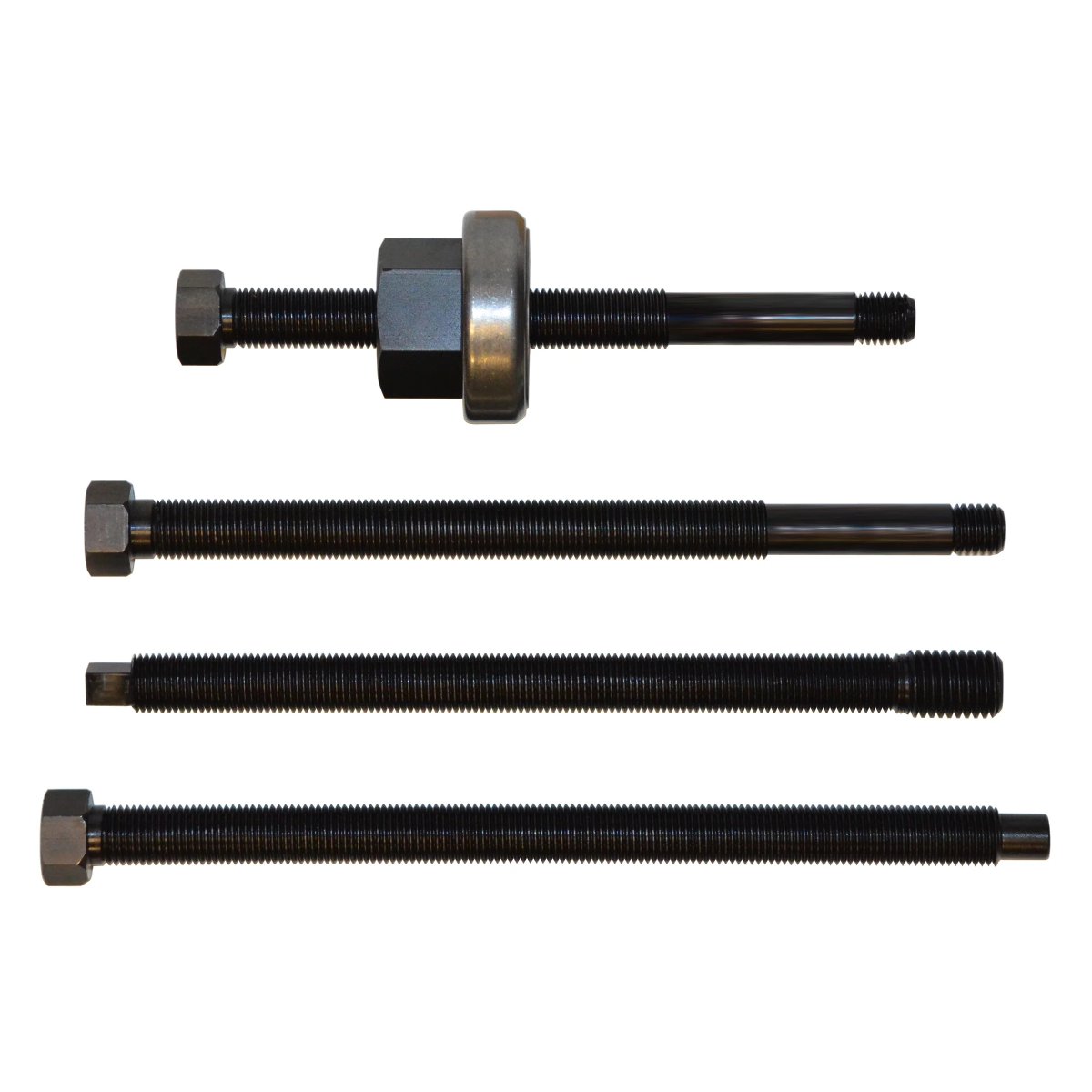

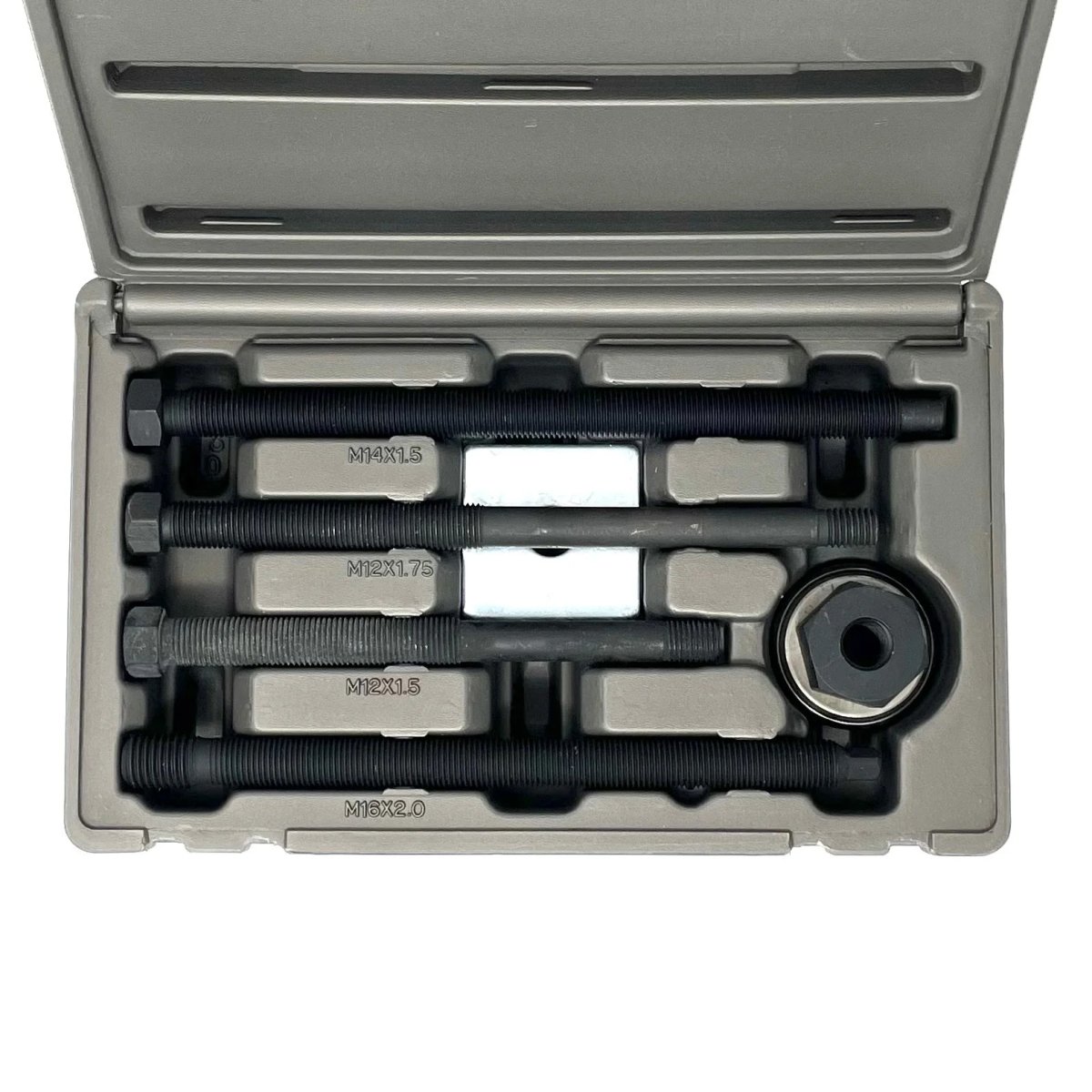

  • 2249X01 - Bearing & Press Hex Nut
  • 2249X02 - M16 x 2.0 - 81/4" long - GM (2008 & Up)
  • 2249X03 - M12 x 1.75 - 81/4" long - Chrysler/Dodge (2006 & Up)
  • 2249X04 - M12 x 1.5 - 6" long - Ford (2004 & Up)
  • 2249X05 - M14 x 1.5 - 9" long - Chrysler/Dodge (2006 & Up)
• Instructions
  • Pick appropriate shaft for application.
  • Coat crankshaft snout and damper inside diameter with anti-seize compound to prevent galling during removal / installation.
  • Thread Nut / Bearing Assembly on shaft making sure bearing is facing crankshaft.
  • Thread shaft and tighten to crankshaft snout.
  • Using an open box wrench and a ratcheting drive, turn nut clockwise until damper is fully seated against timing gear or spacer.
