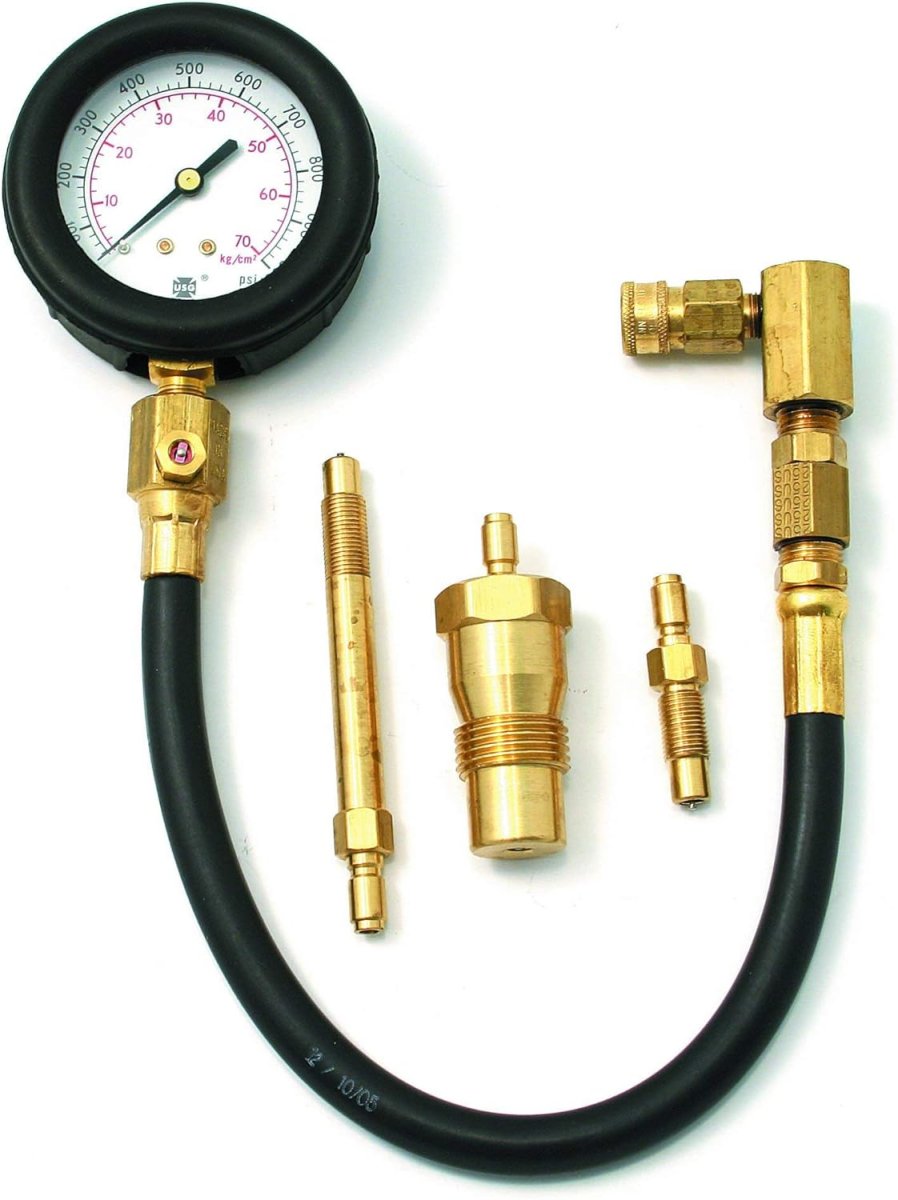

CTA 2800 Diesel Compression Test Kit

CTA 2800 Diesel Compression Test Kit

• Features a 2-1/2-Inch / 63mm-diameter gauge with dual-calibration (0 - 1,000 PIS / 0 - 70kg/cm2) and side-release valve for multiple readings without removing adapter
• Kit Includes:
  • 13-Inch / 33cm flexible hose with swivel end quick coupler
  • Adapter No 2800x01 for GM 4.3L 6-cyl, 4.3L and 5.7L 8-cyl, Ford/Navistar 6.9L and 7.3L, Int Harvester 6.9L 10mm x 10 Glow Plug applications
  • Adapter No 2800x02 for VW, Volvo, Audi, Dodge, Mercedes and Cummins 5.9L (24mm x 20) injector applications
  • Adaptor No 2800x03 for GM 6.2L V8 10mm x 10 Glow Plug applications
• Specifications:
  • Item: Diesel Compression Test Kit
  • Part Number: 2800
  • Manufacturer: CTA Tools
  • Made in USA
  • Interchange: OTC 5020
  • UPC: 053001028009
• Note - If gauge assembly is removed, re-apply thread seal when replacing gauge.
• Please see list below for complete list of the additional adapters available separately:


  Part #	Description
  2800X01	M10 x 1.00 - Diesel Compression Adapter - Short
  2800X02	M24 x 2.00 - Diesel Compression Adapter - Long
  2800X03	M10 x 1.00 - Diesel Compression Adapter - Long
  2800X04	M10 x 1.25 - Diesel Compression Adapter - Long
  2800X05	M10 x 1.25 - Diesel Compression Adapter - Short
  2800X06	M22 x 1.50 - Diesel Compression Adapter
  2800X07	M10 x 1.25 - Diesel Compression Adapter - Medium
  2800X08	M10 x 1.00 - Diesel Compression Adapter - Extra Long
  2800X09	M24 x 2.00 - Diesel Compression Adapter - Short
  2800X10	M22 x 1.50 - Diesel Compression Adapter - Long
  2800X11	M12 x 1.25 - Diesel Compression Adapter
  2800X12	M10 x 1.00 - Diesel Compression Adapter - Extra Long
  2800X13	M24 x 2.00 - Diesel Compression Adapter - Medium
  2800X14	M18 x 1.50 - Diesel Compression Adapter
  2800X15	M21 - Diesel Compression Adapter
  2800X16	1" & 7/8" - Diesel Compression Adapter
  2800X17	M24 - Diesel Compression Adapter
  2800X18	M14 x 1.25 - Diesel Compression Adapter
  2800X19	M24 x 1.50 - Diesel Compression Adapter
  2800X20	M17 - Diesel Compression Adapter - 1x Gap
  2800X21	M17 - Diesel Compression Adapter - 2x Gap
  2800X22	3/8" - Diesel Compression Adapter
  2800X23	7/8" x 14 - Diesel Compression Adapter
  2800X24	M10 x 1.00 - Diesel Compression Adapter - Flex Hose
  2800X25	4" Extension - Diesel Compression Adapter
  2800X26	M8 x 1.00 - Diesel Compression Adapter
  2800X27	ISB/ISC - Diesel Compression Adapter - Injector
  2800X28	M14 x 1.25 - Diesel Compression Adapter - Flex Hose
  2800X29	Ford 6.7L - Diesel Compression Adapter
  2800X30	Quick Coupler Adapter for 2800
