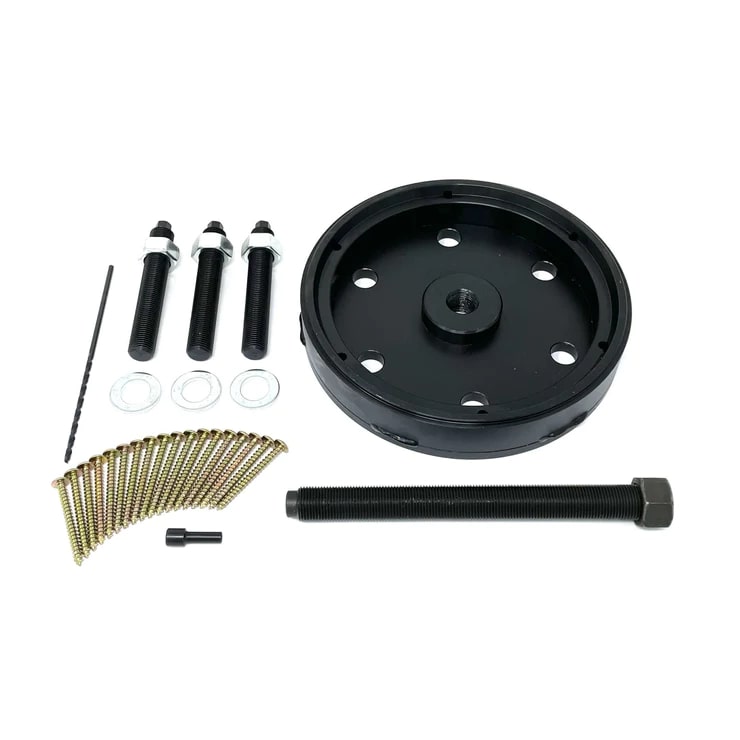

CTA 3895 ISX Rear Crankshaft Seal and Sleeve Repair Install Set

CTA 3895 ISX Rear Crankshaft Seal and Sleeve Repair Install Set

• Use for install and removal of crankshaft rear main seal and wear sleeve
• Applications: Cummins ISX, QSX, ISX15 and ISX12
• Fits the newest Cummins seals. Product benefits are saving time and reducing risk of crankshaft seal surface damage during removal
• Material: high standard carbon steel
• Compare to factory Cummins tool # 3164780 (seal/sleeve kit # 4965569)
• Pro Tip: Tool uses the flywheel CAD screws and positions the rear seal properly when pulled flush to the flywheel housing. It also uses self-tapping screws to attach the tool to the seal. The forcing screw is then able to pull the tool and remove seal
• Interchange: 3164780
