CTA 5059 Digital Circuit Tester Kit, 4V-60V Range, 12-Foot Coil Cord, LCD Display
CTA 5059 Digital Circuit Tester Kit, 4V-60V Range, 12-Foot Coil Cord, LCD Display
- The CTA 5059 Digital Circuit Tester Kit is designed for accurately measuring voltage values in 6, 12, and 48-volt systems. With a measurement range of 4 to 60 volts and a minimal testing current of less than 10mA, this tool is ideal for automotive diagnostics and electrical troubleshooting. The 12-foot coil cord and digital LCD display enhance usability and precision.
- Features:
- Measures voltage in 6V, 12V, and 48V systems
- Voltage measurement range from 4V to 60V
- Low testing current of less than 10mA
- 12-foot stretchable coil cord for extended reach
- Digital LCD display shows accurate voltage readings
- LCD screen indicates power (Red) and ground (Green)
- Compatible with standard 4mm banana jacks for versatile connectivity

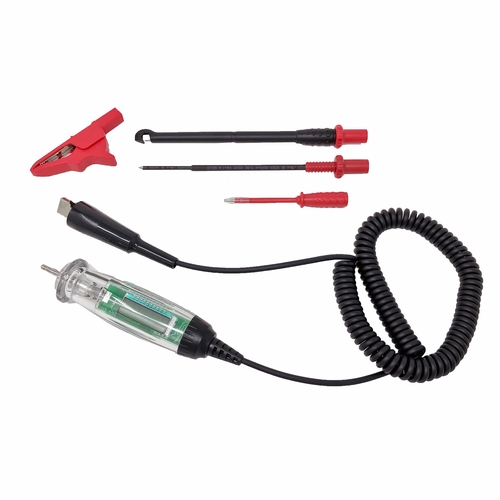

- Includes:
- Piercing probe with banana socket
- Insulated cable piercing probe with banana socket
- Test probe with 4mm banana socket
- Alligator clip
- Specifications:
- Manufacturer: CTA
- Part Number: 5059
- Product Type: Digital Circuit Tester Kit
- Voltage Range: 4V - 60V
- Testing Current: Less than 10mA
- Cord Length: 12 feet
- Display: Digital LCD with power and ground indicators
- Connector Compatibility: Standard 4mm banana jacks
- Country of Origin: Information not specified
- The CTA 5059 Digital Circuit Tester Kit can also be referred to as automotive voltage tester, digital voltage probe, circuit testing tool, electrical diagnostic tester, and vehicle circuit analyzer.
CTA Manufacturing is a reputable manufacturer known for producing high-quality automotive tools and equipment, specializing in diagnostic and testing instruments designed for professional and DIY use.
Q: What voltage systems can the CTA 5059 Digital Circuit Tester Kit measure?
A: The tester is designed to measure voltage in 6V, 12V, and 48V systems, with a full measurement range from 4V to 60V.
Q: How long is the cord on this circuit tester?
A: The tester features a 12-foot stretchable coil cord, providing extended reach for various testing applications.
Q: Does the digital display indicate both power and ground?
A: Yes, the LCD screen displays power with a red indicator and ground with a green indicator, facilitating accurate diagnostics.
