CTA 8690 Mercedes Benz Bushing Remover Installer

CTA 8690 Mercedes Benz Bushing Remover Installer

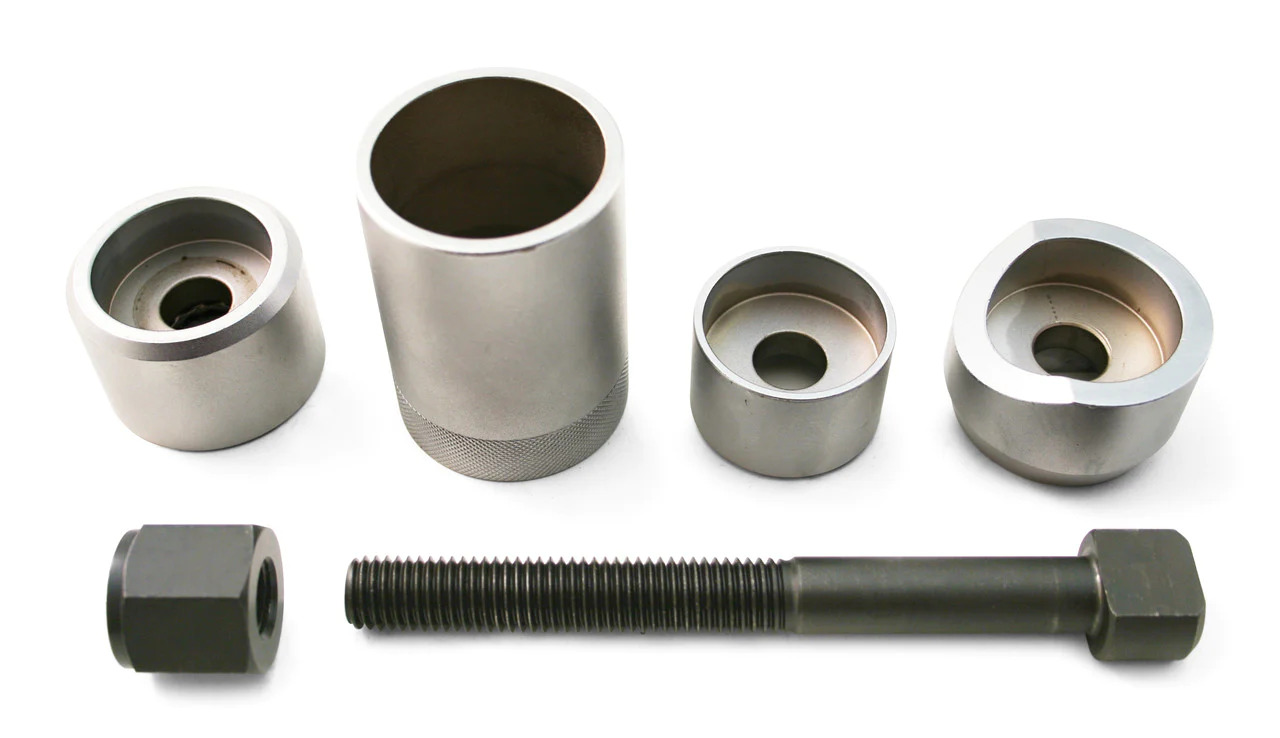

• For removal and replacement of metallic bushings on Mercedes rear axles.
• Features a pressure piece that provides correct position of replacement bushing, plus cut-out in cap to allow sighting of bushing position.

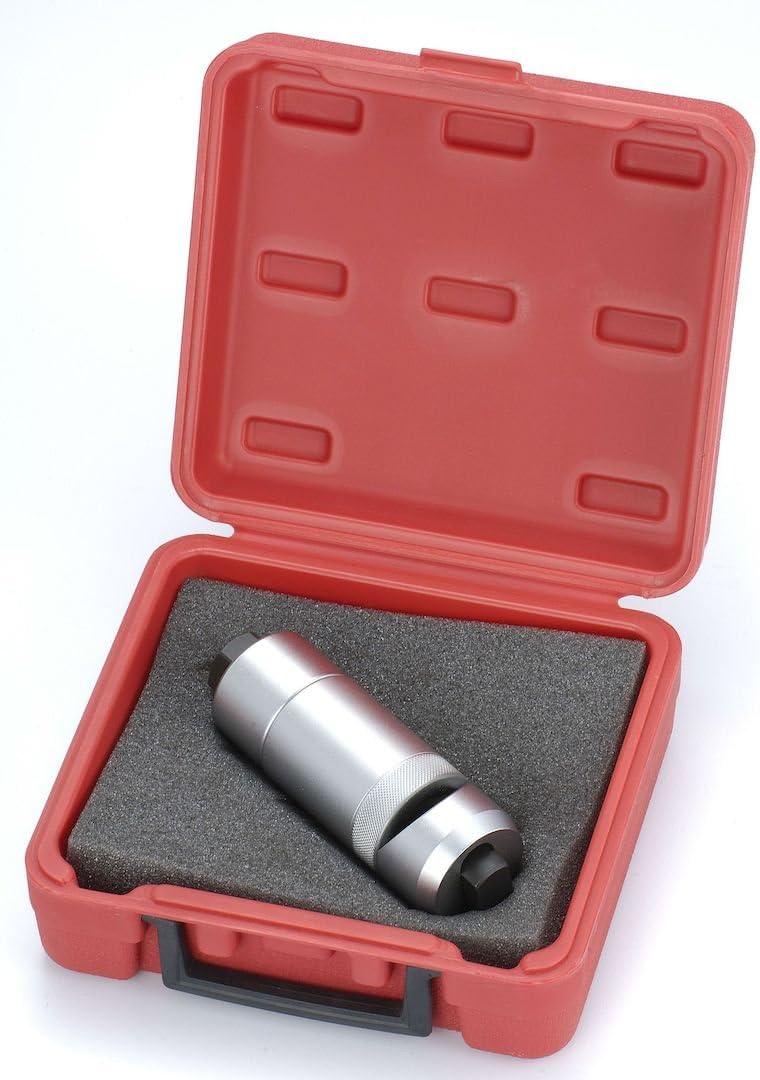

• Packed in blow mold case
• Services almost all passenger cars from 1984 and up, see below for details:
• Specifications:
  • Manufacturer: CTA
  • Brand: CTA Tools
  • Model: ‎8690
  • Item Weight: ‎3.7 pounds
  • Product Dimensions: ‎8 x 8 x 3.5 inches
  • Item model number: ‎8690
  • Exterior: Machined
  • Manufacturer Part Number: ‎8690
  • Interchange: 1837 and B220-0643, 126-0143
• Instructions:
  • Mercedes W124, W201 (except 124.034/036/08/09/18/19/29/39)
  • Screw self-locking hex nut off of the spring link and remove hex bolt
  • Press wheel carrier upward out of spring link
  • Pull supporting joint out of wheel carrier with extractor/pulling-in equipment consisting of thrust piece, steadying bush, and clamping bolt
  • Take off extractor/pulling-in equipment together with supporting joint
  • Pull supporting joint into wheel carrier with extractor/pulling-in equipment
