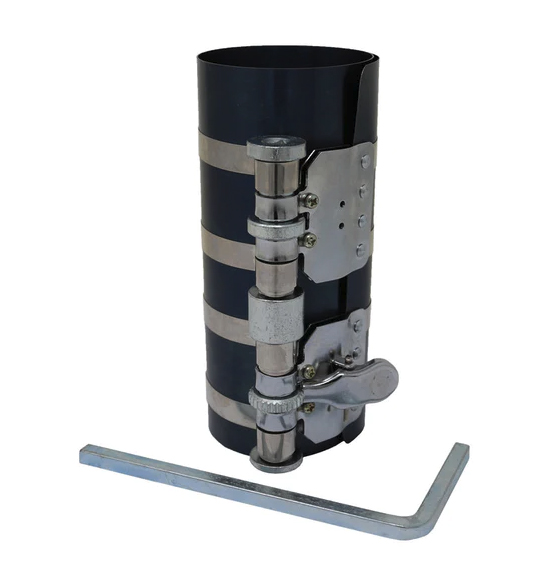

CTA Tools 4024 Piston Ring Compressor 6" for Tractors and Diesel Trucks, Range 60mm-175mm

CTA Tools 4024 Piston Ring Compressor 6" for Tractors and Diesel Trucks, Range 60mm-175mm

• The CTA Tools 4024 Piston Ring Compressor is an essential tool for mechanics and DIY enthusiasts working with large engines. Designed for tractors and diesel trucks, this 6-inch deep compressor allows for precise compression of piston rings, ensuring a perfect fit and seal. Its range of 60mm to 175mm accommodates various engine sizes, making it versatile and reliable for heavy-duty applications.
• Features:
  • 6-inch deep design for enhanced compatibility with large engines.
  • Adjustable range of 60mm to 175mm for various piston sizes.
  • Durable construction ensures longevity and resistance to wear.
  • Easy-to-use ratcheting lock mechanism for secure operation.
  • Ideal for both professional mechanics and DIY users.
• Specifications:
  • Brand: CTA Tools
  • Part Number: 4024
  • Application: Piston ring compression for tractors and diesel trucks
  • Size: 6 inches deep
  • Range: 60mm to 175mm
  • Material: High-strength steel
  • Weight: Approximately 1.2 kg
• Instructions:
  1. Make sure the cylinders have been properly prepared and cleaned, then install the rings on the piston using CTA #2028 ring installer.
  2. Lubricate the cylinder walls and pistons generously with motor oil.
  3. Rotate the ring gaps so that they are on opposite sides of the piston and on the thrust faces.
  4. Loosen the two screws at the tools ratchet mechanism (CAUTION: Do not allow the tool to spring open or the steel straps may break.)
  5. Install the tool over the piston with the square drive hole of the ratchet up, then tighten until the rings are fully compressed. Leave the bottom of the piston skirt exposed.
  6. Lower the connecting rod into the cylinder. Make sure the rod studs straddle the crankshaft and that any marks on the piston face in the right direction. Placing short lengths of rubber fuel line over the rod studs will protect the crankshaft.
  7. Insert the piston skirt into the cylinder until the dimples on the tool stop at the block surface.
  8. Using a hammer handle or a block of wood, tap the top of the piston until it is flush with the block.
• The CTA Tools 4024 Piston Ring Compressor 6" for Tractors and Diesel Trucks is also referred to as Diesel engine piston ring compressor, 6" piston ring compressor, Tractor engine repair tools, Heavy-duty piston ring compressor, and CTA Tools piston ring tool.
