DevilBiss 130026 3-Stage Desiccant Air Dryer System, 1/2 in FNPT Inlet x 1/2 in FNPT Outlet, 25 cfm, 150 psig

DevilBiss 130026 3-Stage Desiccant Air Dryer System, 1/2 in FNPT Inlet x 1/2 in FNPT Outlet, 25 cfm, 150 psig

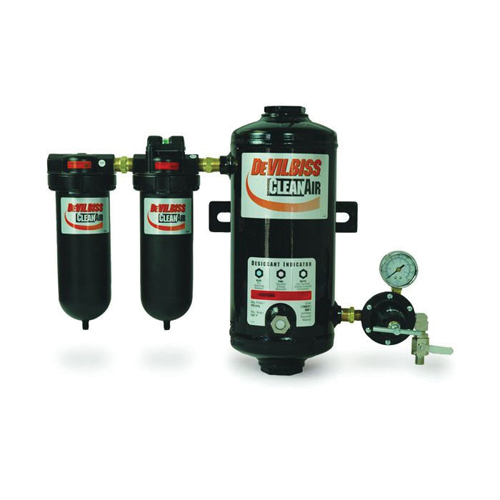

• The DeVilbiss DAD-500 3-Stage Desiccant Air Dryer System provides top-tier moisture and contaminant removal from compressed air lines. This system ensures optimal performance in applications like automotive painting, industrial operations, and pneumatic tool usage, guaranteeing clean, dry air for high-quality results and equipment longevity. The system features a built-in wall mounting bracket for convenience and maintenance-free operation.
• Features:
  • Three-stage drying and filtration system for oil, water, and contaminant removal
  • First stage: Centrifugal pre-filter removes particles down to 5 microns
  • Second stage: Coalescing filter removes oil aerosols and contaminants down to 0.01 microns
  • Third stage: Desiccant dryer reduces dew point to -4 degrees F for moisture-free air
  • Flow capacity of 25 CFM and a maximum pressure of 150 PSIG
  • Automatic drain and humidity indicator for enhanced performance
• Includes:
  • DeVilbiss DAD-500 Desiccant Air Dryer
  • Water separator filter (5 micron)
  • Oil coalescing filter (0.01 micron)
  • Desiccant drying unit
  • Integrated air pressure regulator
  • Wall mounting bracket
• Specifications:
  • Manufacturer: DeVilbiss
  • Part Number: 130026
  • Product Type: 3-Stage Desiccant Air Dryer System
  • Flow Capacity: 25 CFM
  • Maximum Operating Pressure: 150 PSIG
  • Maximum Temperature: 150°F (65.6°C)
  • Air Inlet/Outlet: 1/2" NPT(F)
  • Humidity Indicator: Standard
  • Dew Point: -40?F
  • Country of Origin: USA
• The DeVilbiss DAD-500 can also be referred to as a compressed air dryer, desiccant dryer, industrial air filter system, 3-stage air filter, and moisture removal system.

DeVilbiss is a leading manufacturer of high-performance air filtration systems, trusted by professionals in automotive and industrial fields for their durability, innovation, and ability to provide clean, dry air for superior equipment and application performance.
