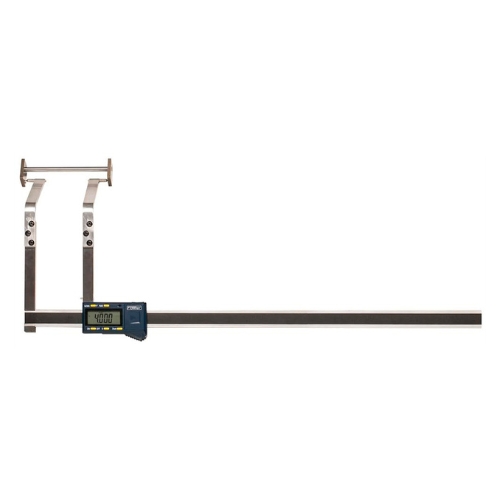

Fowler 74-150-050-0 EZ-Drum Reach Electronic Brake Drum Gauge, 4" - 20" (100-500mm) Capacity

Item # FOW.74-150-050-0
$360.15
Quantity:      On Hand: 7QTY_CHECK:7-net:-DB:7-VSTOCK:0  Sold As: each


Fowler Measurement Tools
More Products from Fowler Measurement Tools

  Add to Shopping List
  Save For Later


Overview



Fowler 74-150-050-0 EZ-Drum Reach Electronic Brake Drum Gauge, 4" - 20" (100-500mm) Capacity

  • The Fowler EZ-Drum Reach Electronic Brake Drum Gauge (model 74-150-050-0) is designed for precise internal brake drum measurements without wheel removal. It provides a measurement range of 4 to 20 inches (100 to 500 mm), fine resolution of 0.0005 inch, IP54 protection, and RS232 output for data transfer.
  • Features:
    • Measurement capacity of 4 to 20 inches (100 to 500 mm) for internal brake drum inspection.
    • Floating zero and 4 inch preset drum reference for quick calibration.
    • Resolution of 0.0005 inch / 0.01 mm with accuracy to 0.005 inch (0.13 mm).
    • Conversion between inch, metric, and fractions (in 1/64 inch increments).
    • IP54 protection for resistance to dust, water, and oil in shop environments.
    • RS232 output for computer data logging and reporting.
  • Specifications:
    • Manufacturer: Fowler High Precision
    • Model / SKU: 74-150-050-0
    • Material: Steel contact points with plastic housing
    • Measurement Capacity: 4 to 20 inches (100 to 500 mm)
    • Resolution: 0.0005 inch / 0.01 mm
    • Accuracy: 0.005 inch (0.13 mm)
    • Preset Reference: 4 inch calibration standard
    • Functions: Floating zero, hold, preset depth, inch/metric/fraction conversion
    • Output: RS232 data port
    • Protection Rating: IP54
    • System/Application: Automotive brake drum measurement without wheel removal
  • The Fowler 74-150-050-0 may also be referred to as Fowler EZ-Drum Reach Gauge, Fowler Electronic Brake Drum Gauge, EZ-Drum Brake Drum Measurement Tool, and Fowler Drum Gauge 74-150-050-0.



The Fowler 74-150-050-0 EZ-Drum Reach Electronic Brake Drum Gauge delivers accurate and efficient brake drum measurements directly in-shop, reducing downtime while ensuring consistent precision and reliability.



Q: What is the measurement range of this gauge?
A: It measures internal brake drum diameters from 4 inches to 20 inches (100 to 500 mm).



Q: Does it allow calibration or preset references?
A: Yes, it includes a 4 inch preset drum reference for fast calibration and setup.



Q: Is it resistant to shop conditions?
A: Yes, it is IP54 rated, making it resistant to dust, water, and oil exposure.
