Grey Pneumatic 1313XD 1/2\" Drive Extra Deep Impact Socket Set Grey Pneumatic GP1313XD
View Larger
Grey Pneumatic 1313XD

Grey Pneumatic 1313XD 1/2" Drive Extra Deep Impact Socket Set

Item # GP1313XD
$259.75

 Quantity:      Out of Stock*QTY_CHECK:0-net:0-DB:0-VSTOCK:0
Sold As: each
Call for availability


Grey Pneumatic
More Products from Grey Pneumatic

  Add to Shopping List
  Save For Later


Overview



Grey Pneumatic 1313XD 1/2" Drive Extra Deep Impact Socket Set

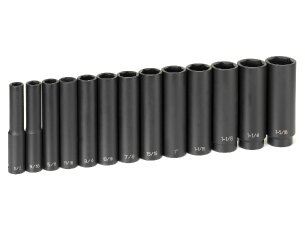

  • Set contains 6 Point Extra Deep length sizes 1/2" to 1-5/16" for extra reach in extended bolt applications. Five (5) inches overall length; with over 4-3/8" bolt clearance depth.
  • Features
    • Set Contains 13 Pieces
    • 1/2" Drive 13 Piece Extra-Deep Set
    • Molded Storage Case
    • Weight: 18.12 lbs.
    • Lifetime Warranty (Individual Parts Only)
  • Sizes (included)
    • 1/2"
    • 9/16"
    • 5/8"
    • 11/16"
    • 3/4"
    • 13/16"
    • 7/8"
    • 15/16"
    • 1"
    • 1-1/16"
    • 1-1/8"
    • 1-1/4"
    • 1-5/16"

ITEM # SIZE SHP A B C D E
2016XD 1/2" I .94 .79 4.33 .55 5.00
2018XD 9/16" I .94 .87 4.33 .94 5.00
2020XD 5/8" II .94 .95 4.33 .94 5.00
2022XD 11/16" II 1.02 1.02 4.33 .94 5.00
2024XD 3/4" II 1.10 1.10 4.33 .94 5.00
2026XD 13/16" II 1.18 1.18 4.33 .94 5.00
2028XD 7/8" II 1.26 1.26 4.33 .94 5.00
2030XD 15/16" II 1.34 1.34 4.33 .94 5.00
2032XD 1" II 1.42 1.42 4.33 .94 5.00
2034XD 1-1/16" II 1.50 1.50 4.33 .94 5.00
2036XD 1-1/8" III 1.50 1.58 4.33 .94 5.00
2040XD 1-1/4" III 1.50 1.73 4.33 .94 5.00
2042XD 1-5/16" III 1.50 1.81 4.33 .94 5.00
CA1313XD
SL05DL
SL05DR

Documents


Pdf 1313XD Catalog
