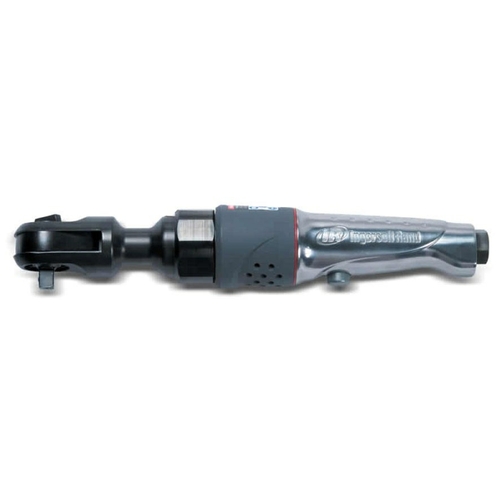

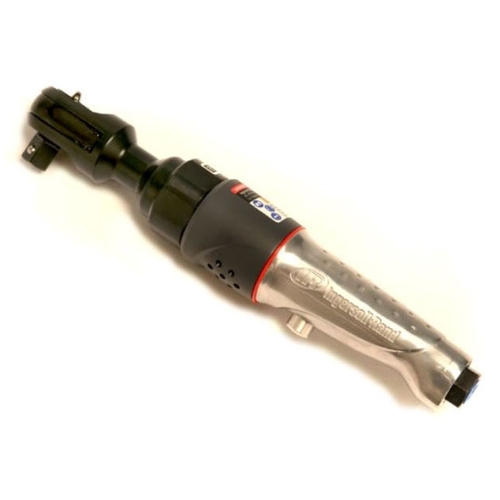

Ingersoll Rand 109XPA 3/8" Super Duty Air Ratchet Wrench, 76 Feet-Lbs Torque, 220 RPM
Ingersoll Rand 109XPA 3/8" Super Duty Air Ratchet Wrench, 76 Feet-Lbs Torque, 220 RPM
- The Ingersoll Rand 109XPA is a high-performance 3/8-inch drive air ratchet wrench designed for heavy-duty applications. With a maximum torque of 76 ft-lb and a free speed of 220 RPM, it offers exceptional power and efficiency for automotive and industrial tasks.
- Features:

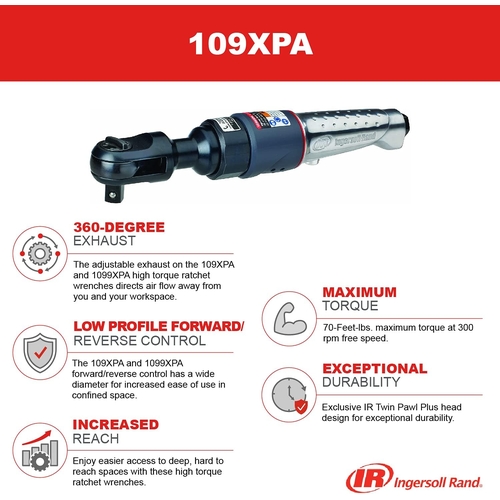

- Optimized gear ratio and airflow for enhanced performance and durability.
- 360-degree adjustable exhaust directs air away from the operator and workspace.
- Variable speed button trigger for precise control.

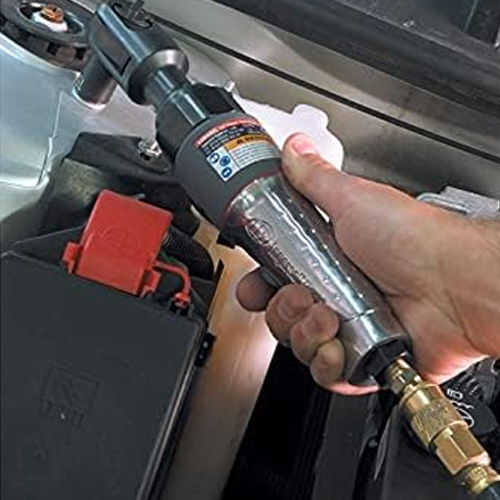

- Low-profile forward/reverse control for ease of use in confined spaces.
- Robust construction ensures long-lasting reliability in demanding environments.
- Specifications:
- Manufacturer: Ingersoll Rand
- Part Number: 109XPA
- Drive Size: 3/8"
- Maximum Torque: 76 ft-lb (103 Nm)
- Free Speed: 220 RPM
- Length: 12" (305 mm)
- Average Air Consumption: 4 CFM (113 L/min)
- Air Inlet: 1/4" NPTF
- Minimum Hose Size: 3/8" (10 mm)
- Sound Pressure: 92.4 dBA
- Vibration Level: 2.5 m/s²
- The Ingersoll Rand 109XPA 3/8" Super Duty Air Ratchet Wrench is also known as a 3/8-inch drive air ratchet, 3/8-inch pneumatic ratchet wrench, Ingersoll Rand 109XPA, 3/8-inch heavy-duty air ratchet, and 3/8-inch super duty pneumatic ratchet.
Ingersoll Rand, established over a century ago, is a global leader in power tools and equipment. Renowned for innovation and quality, their products are trusted across automotive, industrial, and construction sectors for superior performance and reliability.
Q: What is the maximum torque of the Ingersoll Rand 109XPA air ratchet?
A: The 109XPA delivers a maximum torque of 76 ft-lb (103 Nm), making it suitable for heavy-duty applications.
Q: Can the exhaust direction be adjusted on this air ratchet?
A: Yes, it features a 360-degree adjustable exhaust, allowing you to direct air away from yourself and your workspace.
Q: What is the free speed RPM of the 109XPA?
A: The air ratchet operates at a free speed of 220 RPM, enabling efficient task completion.
Q: Is the 109XPA suitable for use in tight spaces?
A: Absolutely, its low-profile forward/reverse control and compact design make it ideal for working in confined areas.
Q: What is the weight of this air ratchet?
A: The 109XPA weighs 3.3 lbs (1.5 kg), offering a balance between durability and ease of handling.
