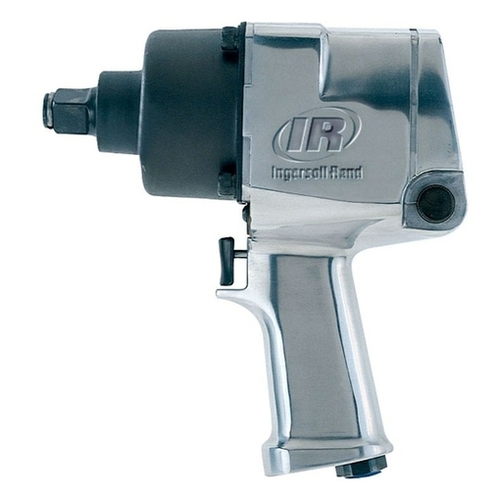

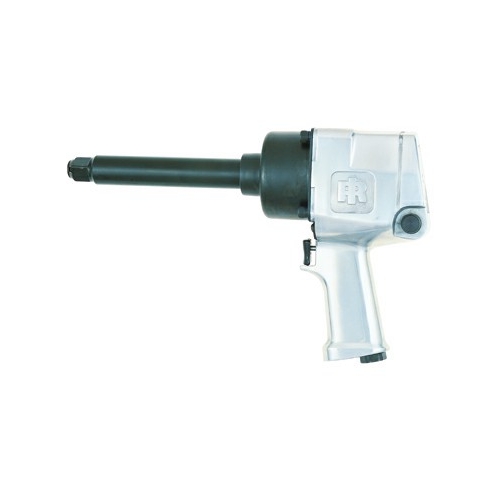

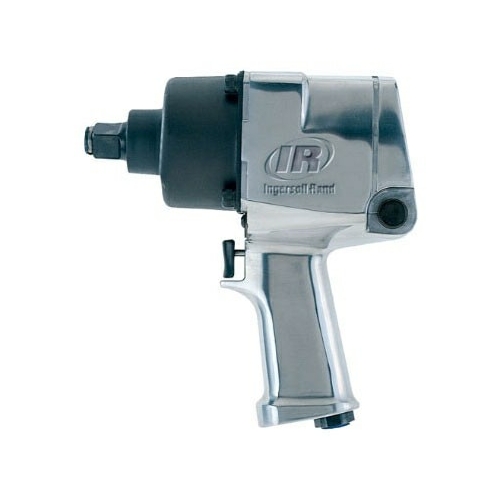

Ingersoll Rand 261-6 3/4" Super Duty Air Impact Wrench, 6" Extended Anvil, 9.5 CFM
Ingersoll Rand 261-6 3/4" Super Duty Air Impact Wrench, 6" Extended Anvil, 9.5 CFM
- The Ingersoll Rand 261-6 is a robust 3/4-inch Super Duty Air Impact Wrench featuring a 6-inch extended anvil, designed to deliver high torque output for demanding applications such as truck tire servicing and heavy machinery maintenance.
- Features:
- Jumbo hammer mechanism for efficient power-to-weight ratio
- Up to 1,100 Feet-Lbs of maximum torque for heavy-duty performance
- Compact design with a total length of 14.8" for ease of use in tight spaces
- Handle exhaust to direct air away from the operator
- 6-inch extended anvil to access deeply recessed lug nuts
- Specifications:
- Manufacturer: Ingersoll Rand
- Part Number: 261-6
- Drive Size: 3/4"
- Maximum Torque: 1,100 Feet-Lbs (1,491 Nm)
- Blows per Minute: 1,000
- Free Speed: 5,500 RPM
- Length: 14.8" (376 mm)
- Width: 4.7" (119 mm)
- Height: 10.3" (262 mm)
- Weight: 13.7 lbs (6.21 kg)
- Air Inlet: 3/8"
- Minimum Hose Size: 1/2" (13 mm)
- Air Consumption @ Load: 38 CFM (1,076 L/min)
- Average Air Consumption: 9.5 CFM (269 L/min)
- Operating Pressure: 90 PSI (6.2 Bar)
- The Ingersoll Rand 261-6 3/4" Super Duty Air Impact Wrench is also known as a 3/4-inch drive impact wrench, heavy-duty air impact gun, pneumatic impact wrench with extended anvil, truck tire impact tool, and high-torque air wrench.
Ingersoll Rand, established over a century ago, is a global leader in providing innovative and reliable industrial solutions. Renowned for their high-performance tools and equipment, Ingersoll Rand continues to set industry standards for quality and durability.
Q: What applications is the 261-6 impact wrench suitable for?
A: The 261-6 is ideal for heavy-duty tasks such as truck tire servicing, heavy equipment maintenance, and major engine teardowns, thanks to its high torque output and extended anvil design.
Q: What is the purpose of the 6-inch extended anvil?
A: The 6-inch extended anvil allows users to reach lug nuts and fasteners located in deep or recessed areas, making it particularly useful for truck wheels and other heavy machinery applications.
Q: What type of maintenance does the jumbo hammer mechanism require?
A: The jumbo hammer mechanism is designed for durability and offers a great power-to-weight ratio. Regular lubrication and periodic inspection are recommended to ensure optimal performance and longevity.
Q: What is the air consumption of the 261-6 impact wrench?
A: The average air consumption is 9.5 CFM (269 L/min), with an air consumption of 38 CFM (1,076 L/min) under load. It is essential to ensure your air compressor meets these requirements for optimal tool performance.
Q: What is the operating pressure for this impact wrench?
A: The 261-6 operates at a standard air pressure of 90 PSI (6.2 Bar) to deliver its maximum performance.
